Toyota Corolla/Axio

2012-04 → 2019-08 · chassis NRE161,NZE161 · catalogue 151370 · General

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

7 part groups · 2 illustrations

Illustrations

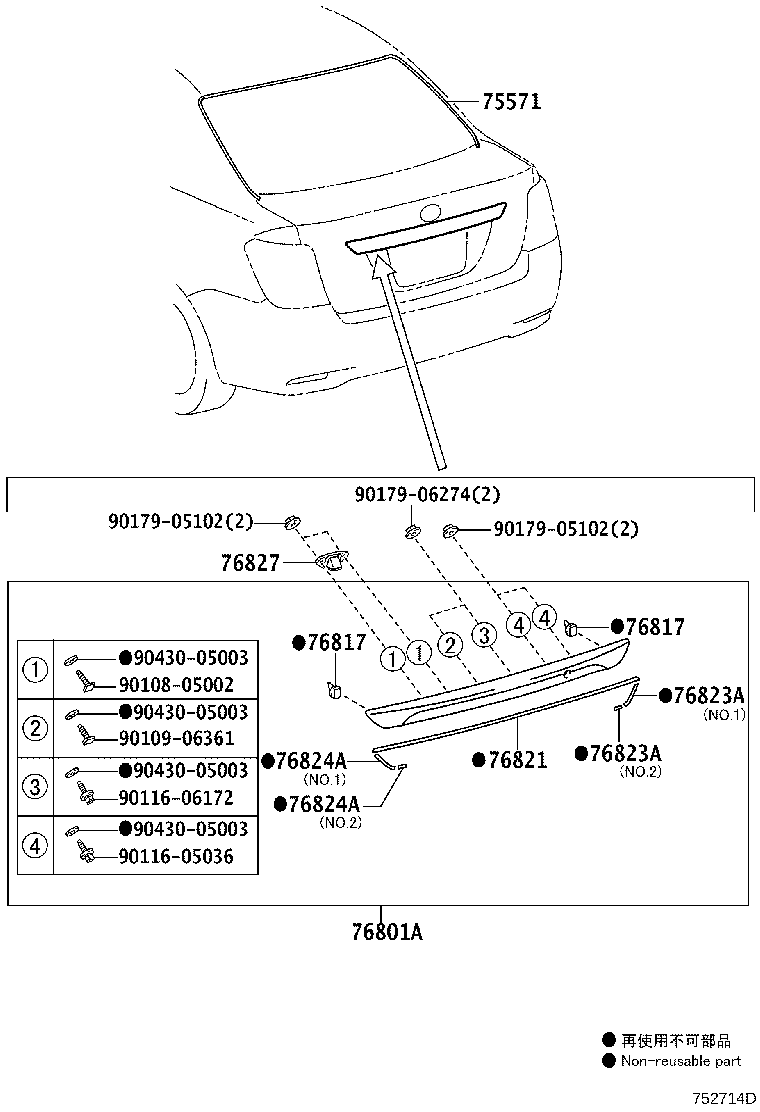

Figure 753145C 753145C 2012-12 → 2017-10 Figure 752714D 752714D 2012-12 → —

Part groups

PNCDescription
75571 Moulding, Back Window, Outside Upper
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
76821 Protector, Back Door Garnish Moulding, Upper
76823A Protector, Luggage Compartment Door Garnish, Outside RH
76824A Protector, Luggage Compt Door Garnish, Outside LH
76827 Retainer, Back Door Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
