Toyota Corolla/Axio

2012-04 → 2019-08 · chassis NRE161,NZE161 · catalogue 151370 · General

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

37 part groups · 10 illustrations

Illustrations

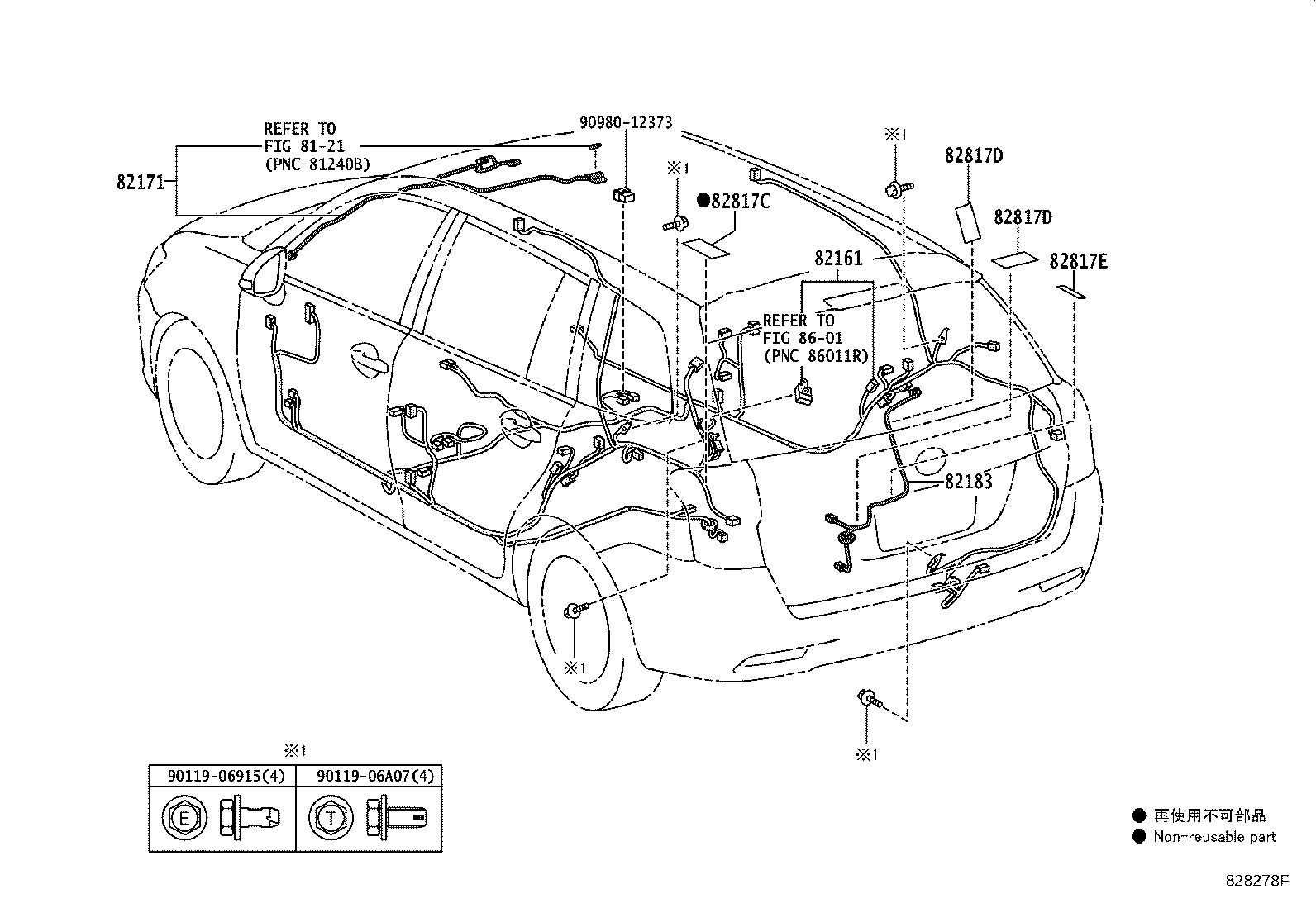

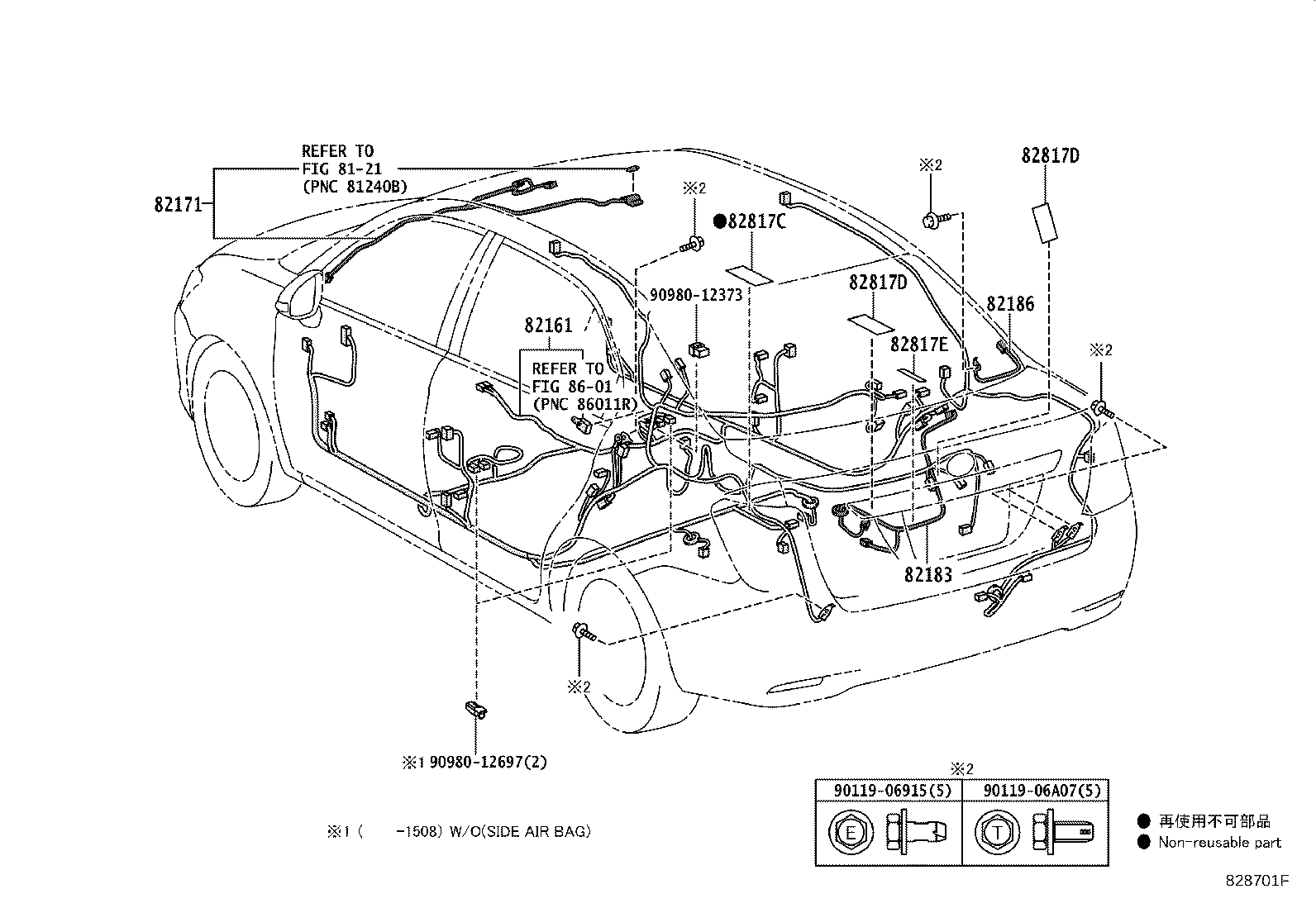

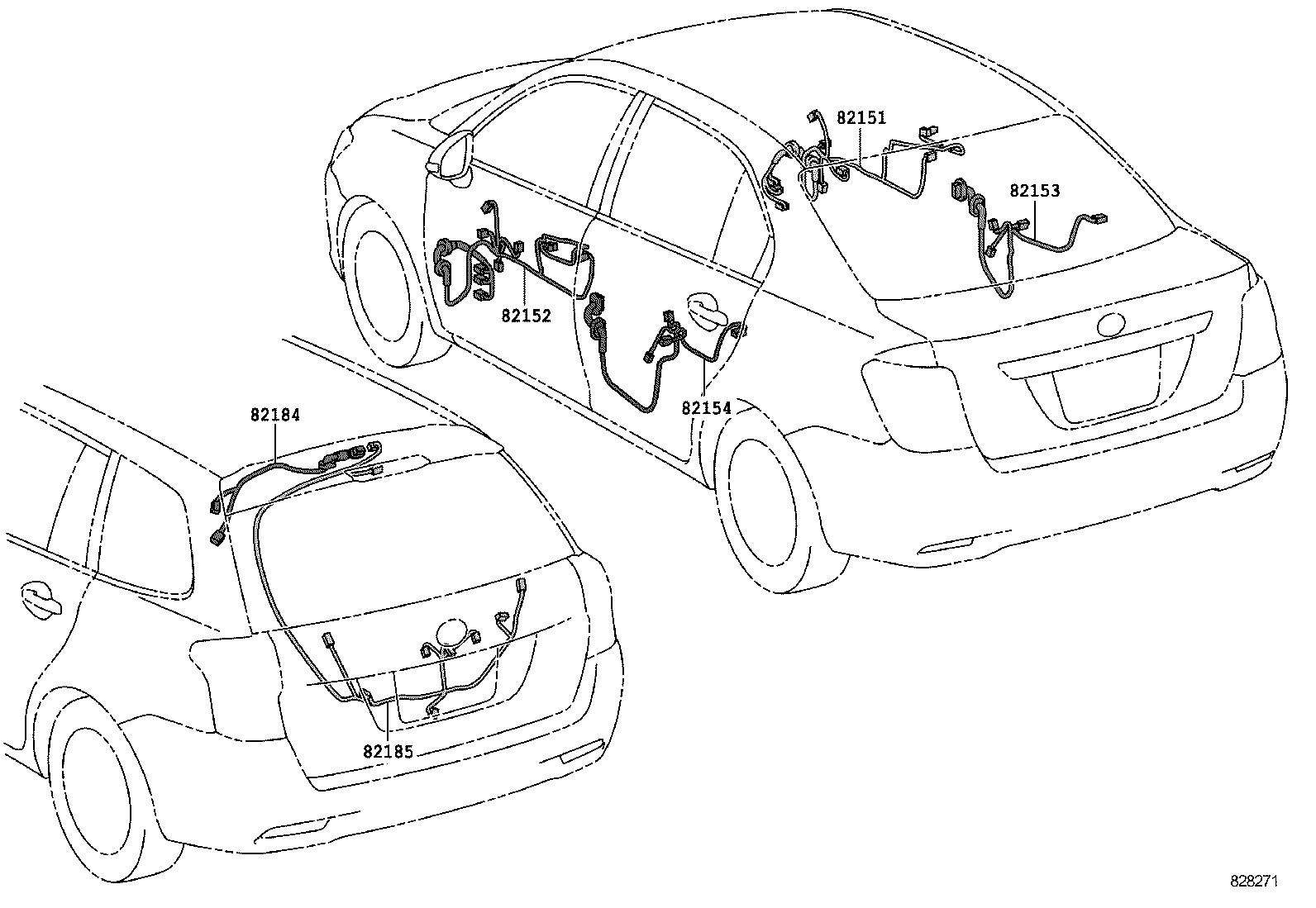

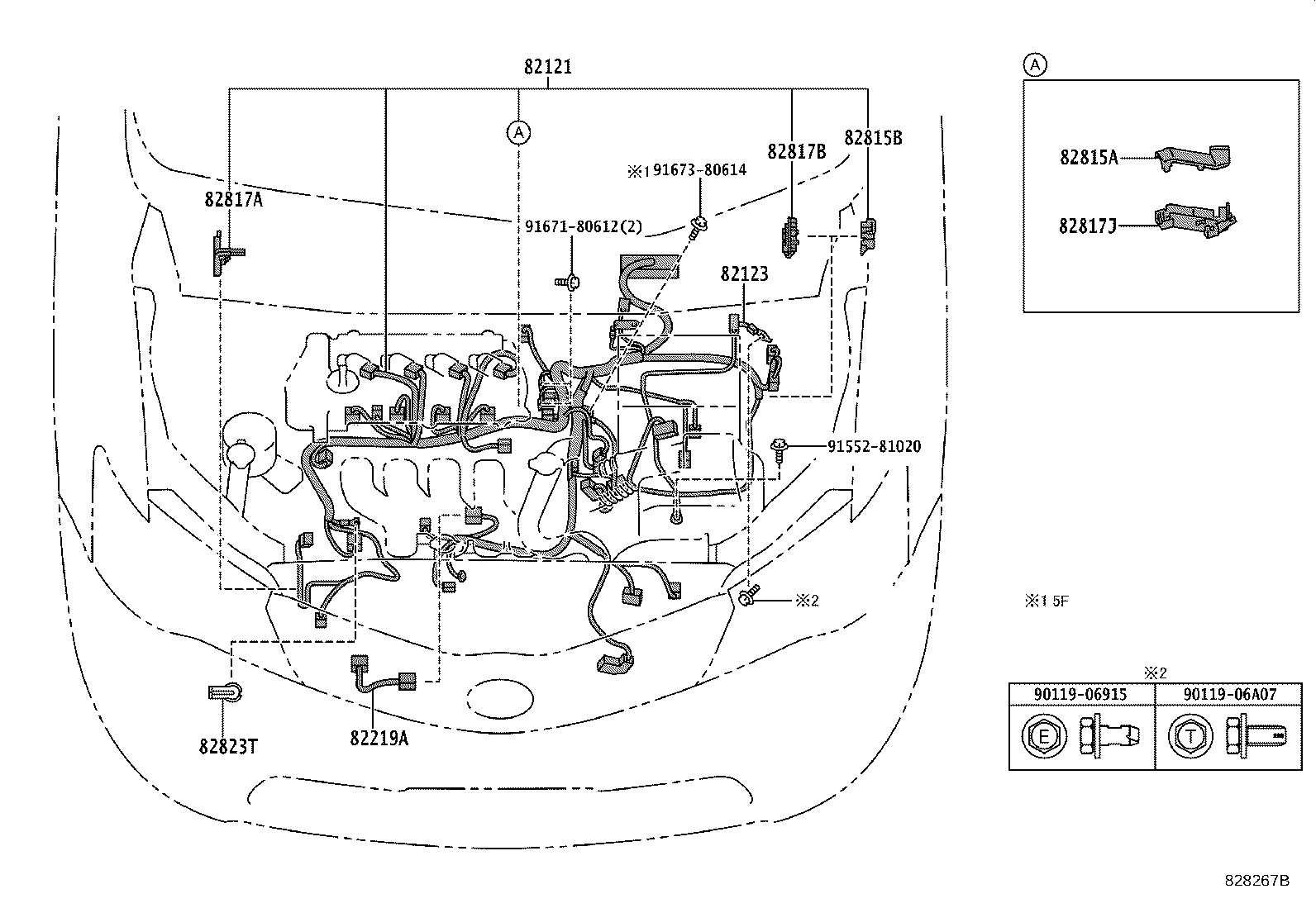

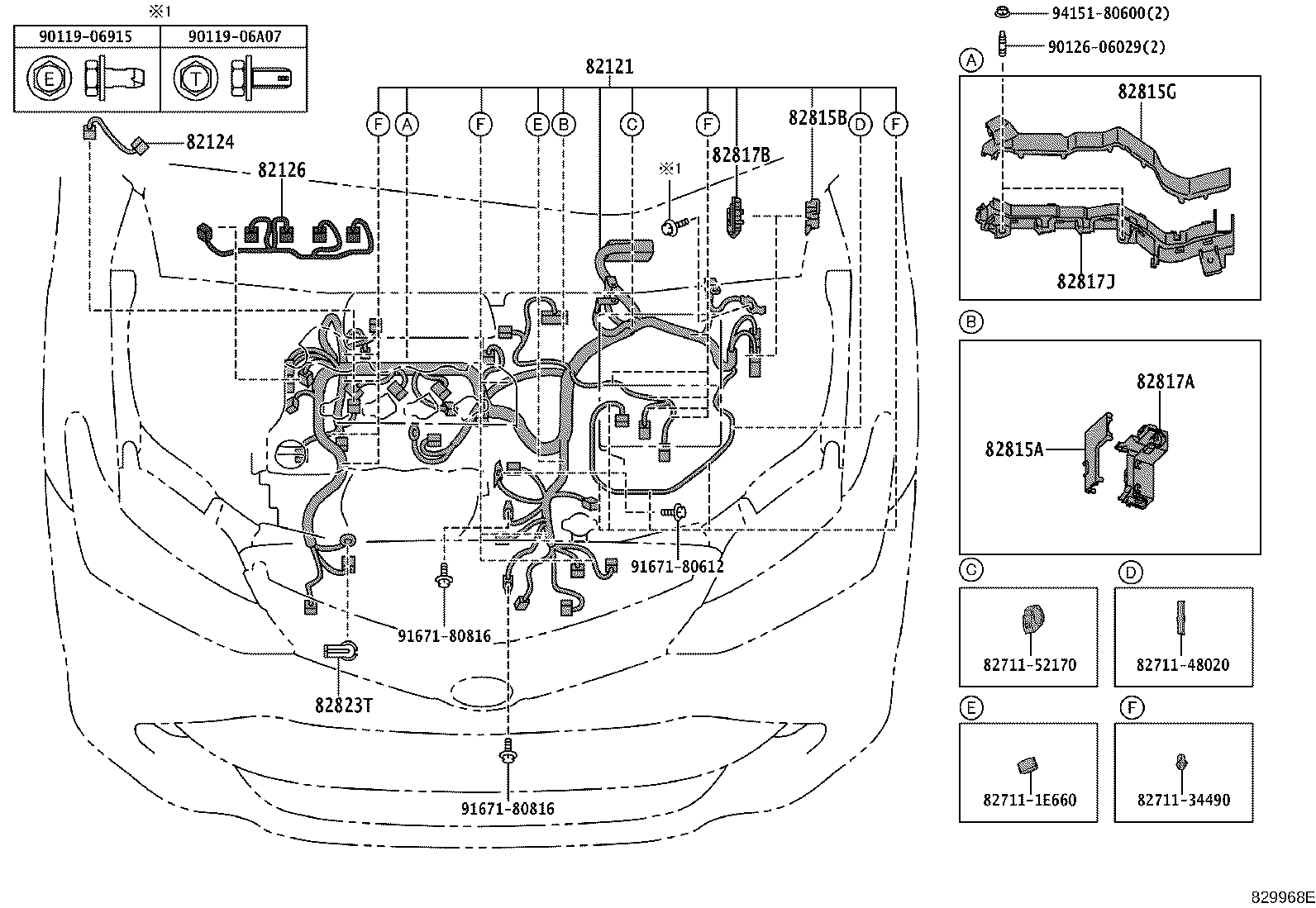

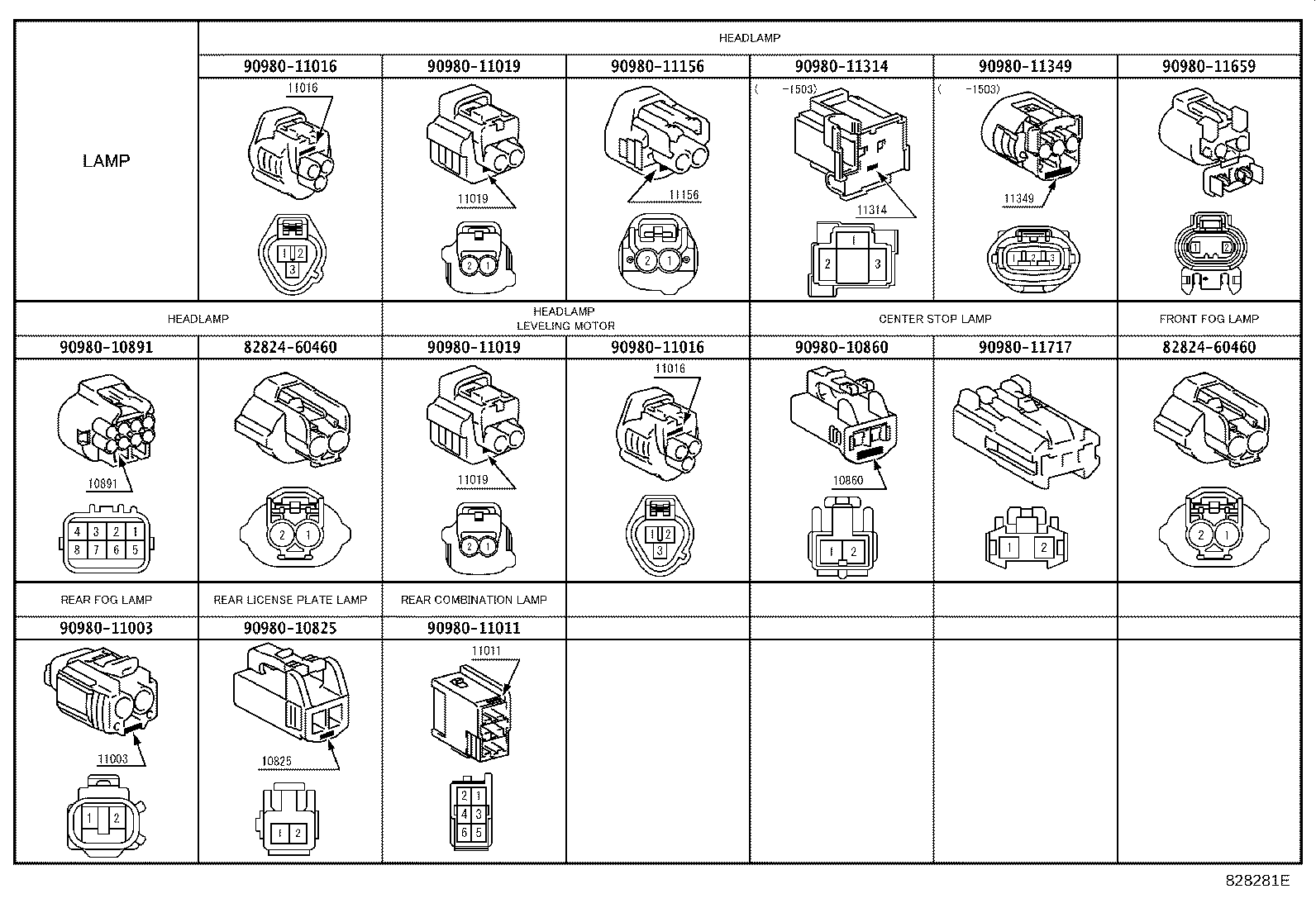

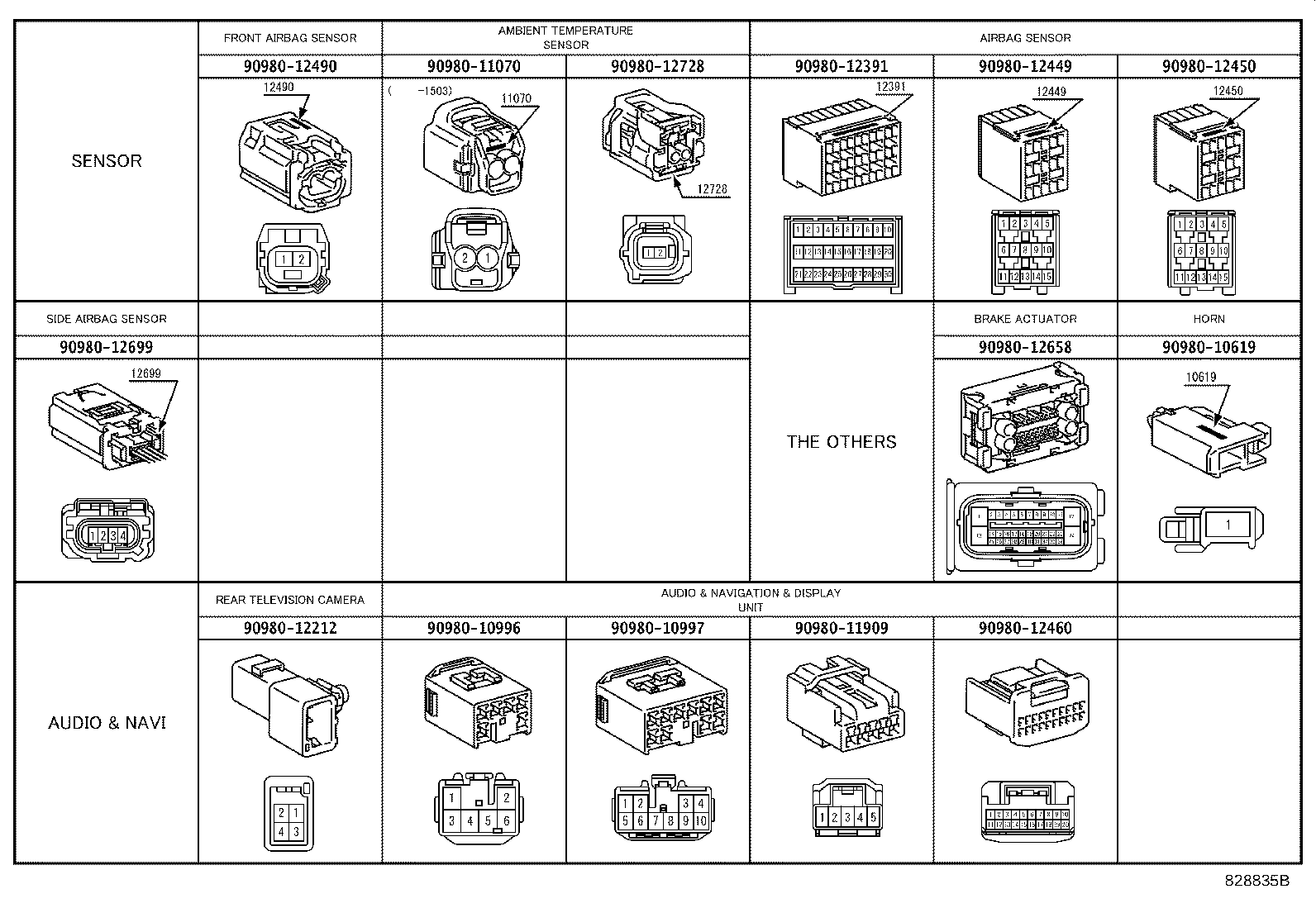

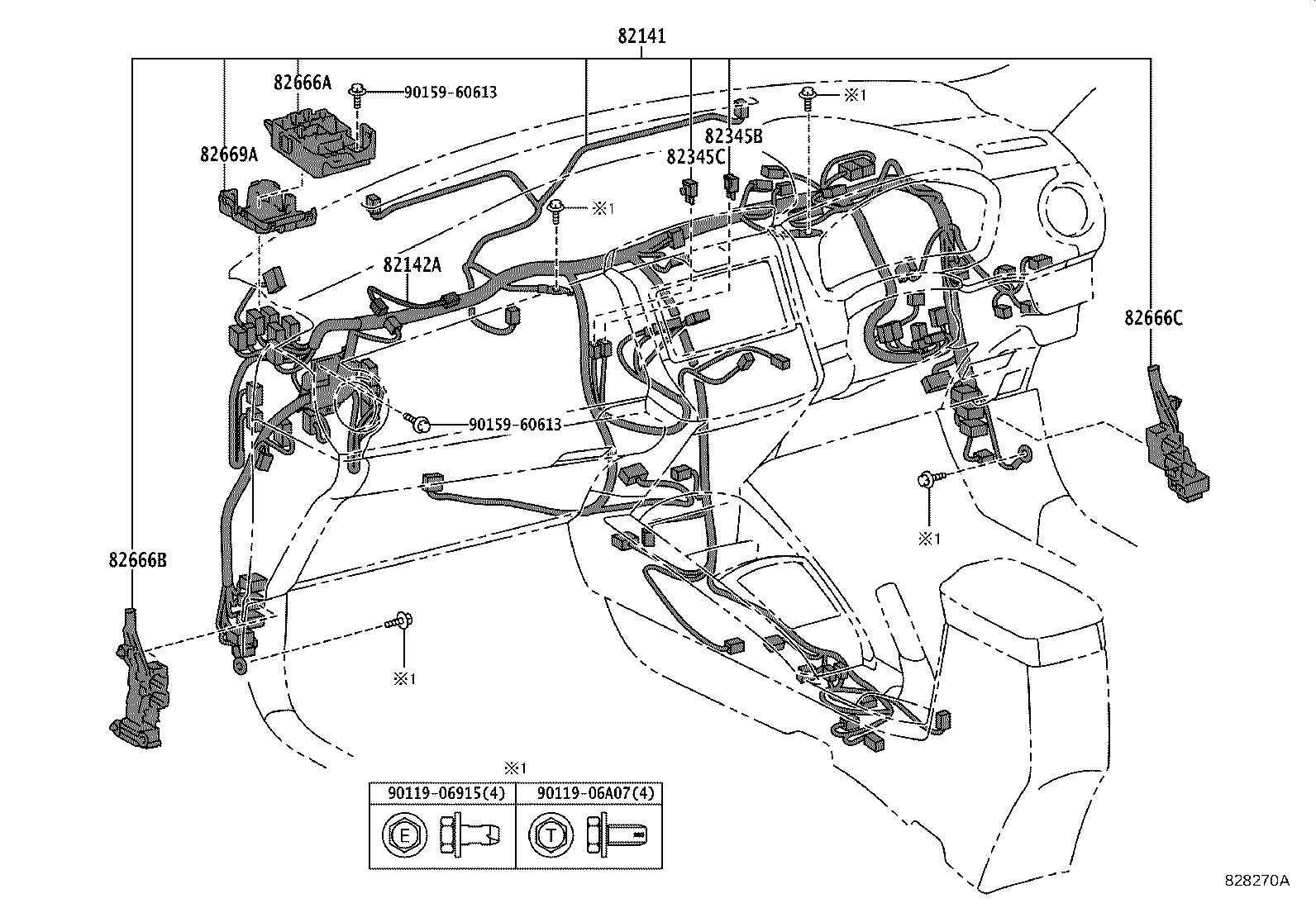

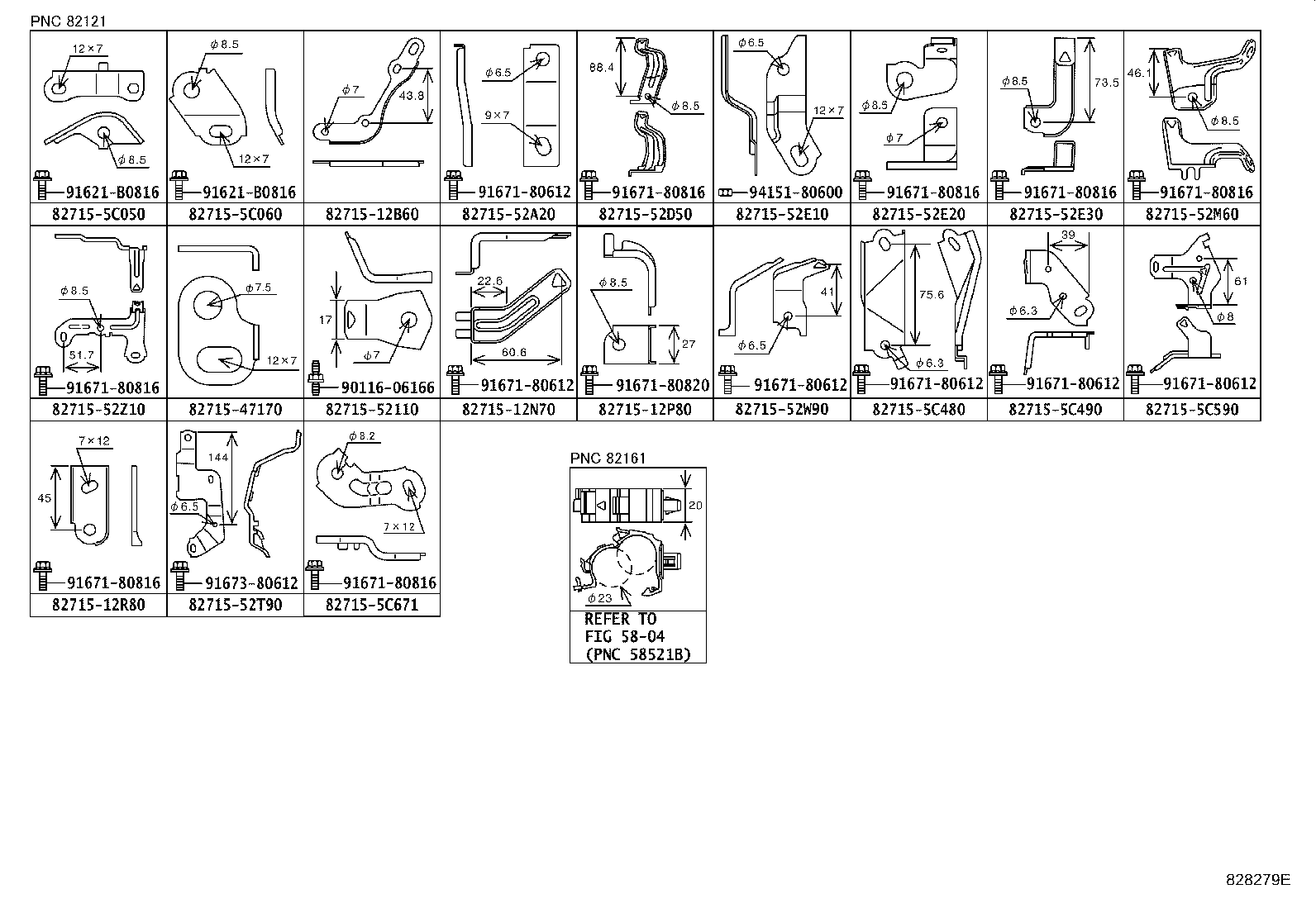

Figure 828305C 828305C 2012-04 → — Figure 828267B 828267B 2012-04 → — Figure 829968E 829968E 2015-03 → — Figure 828270A 828270A 2012-04 → — Figure 828271 828271 2012-04 → — Figure 828278F 828278F 2012-04 → — Figure 828701F 828701F 2012-12 → — Figure 828279E 828279E 2012-04 → — Figure 828281E 828281E 2012-04 → — Figure 828835B 828835B 2012-04 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82126 Wire, Engine
82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82219A Wire, Sensor
82345B Diode
82345C Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82669A Cover, Connector Holder Block, Lower
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82821A Cover, Connector
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
