Toyota Corolla/Axio

2012-04 → 2019-08 · chassis NRE161,NZE161 · catalogue 151370 · General

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

18 part groups · 2 illustrations

Illustrations

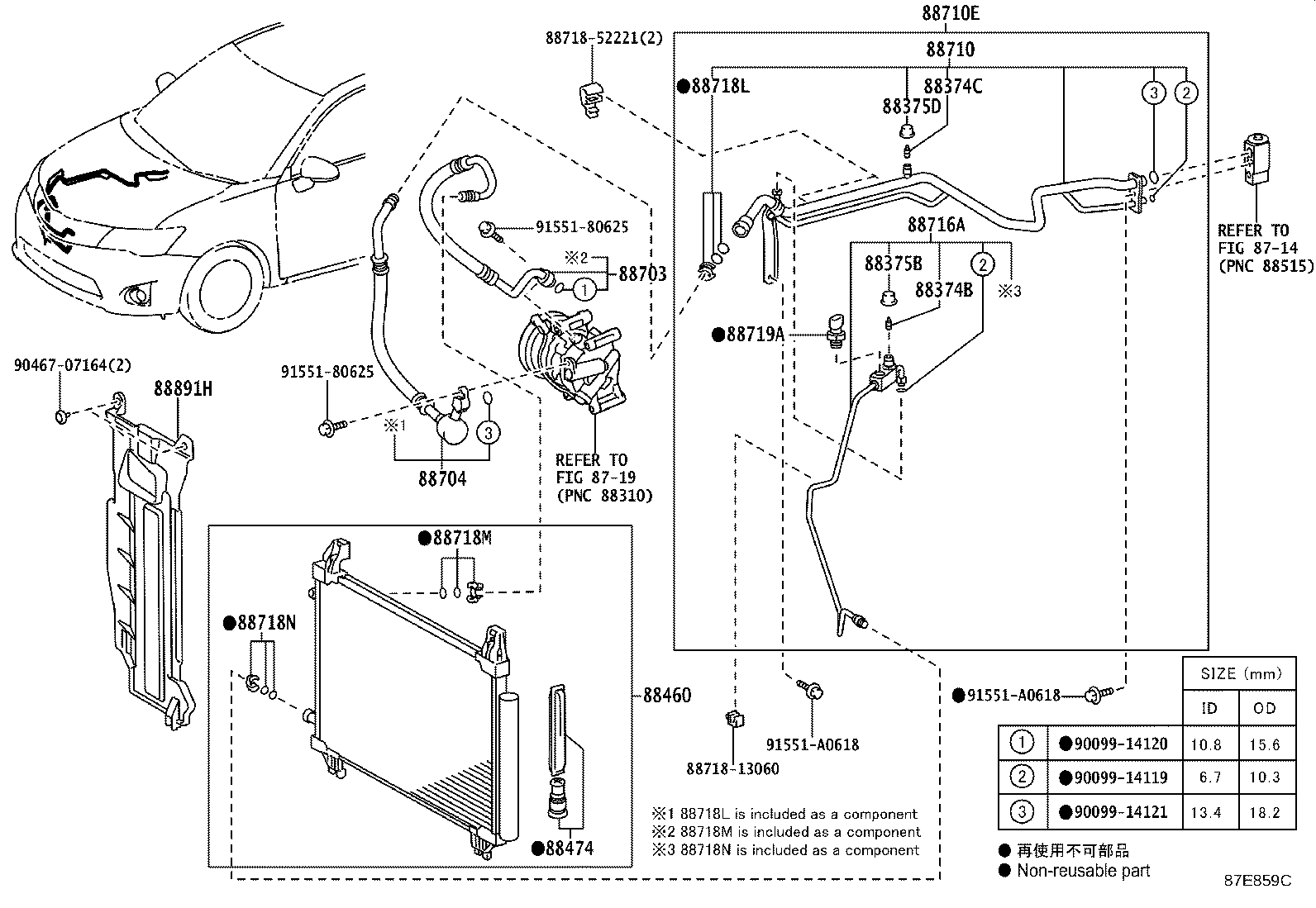

Figure 87E485E 87E485E 2012-04 → — Figure 87E859C 87E859C 2015-03 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88707B Tube Sub-assy, Suction, B
88710 Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88716A Pipe, Cooler Refrigerant Liquid, A
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
