Toyota Corolla/Touring

2019-09 → present · chassis ZRE212,ZWE219 · catalogue 151380 · General

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

30 part groups · 4 illustrations

Illustrations

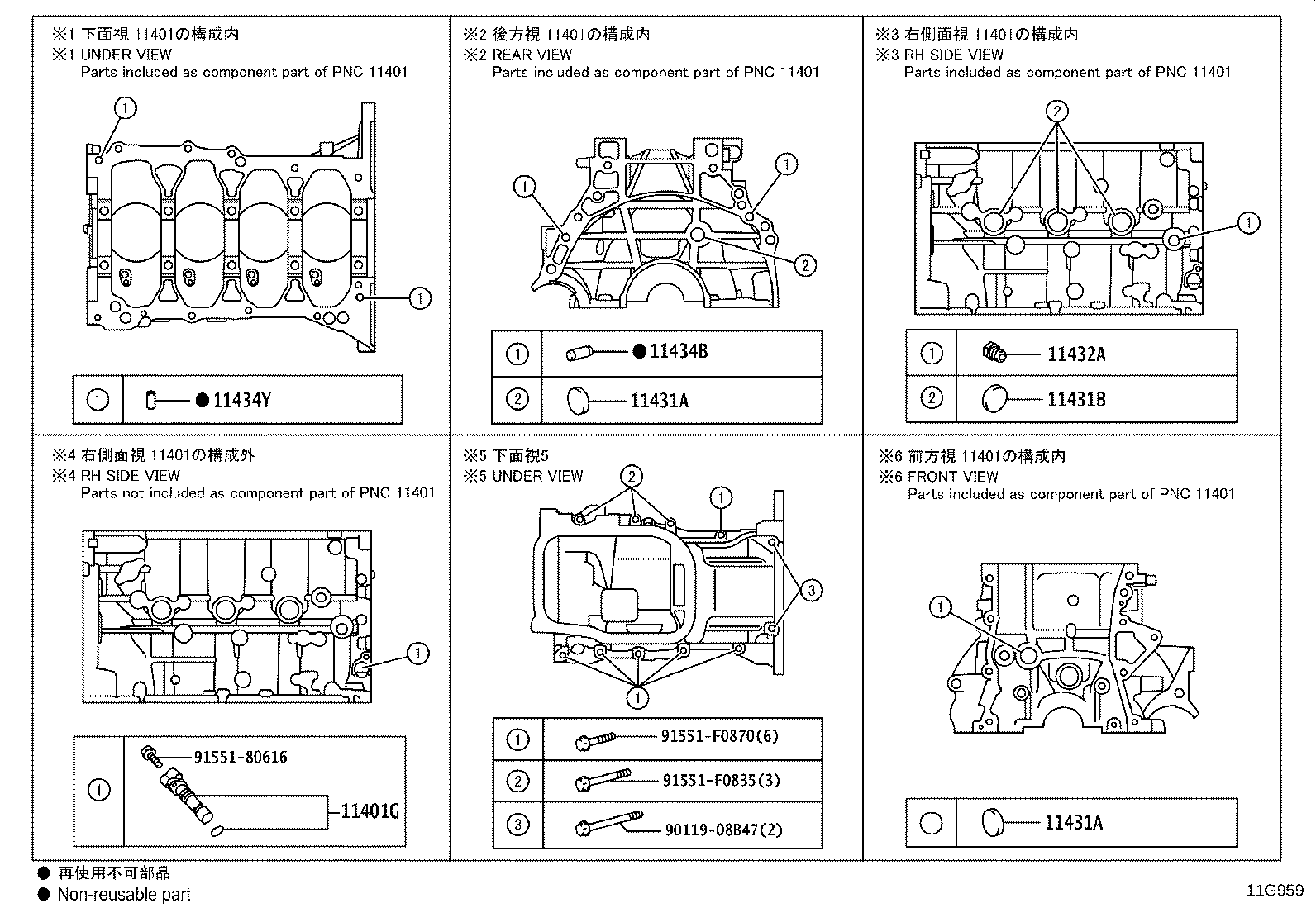

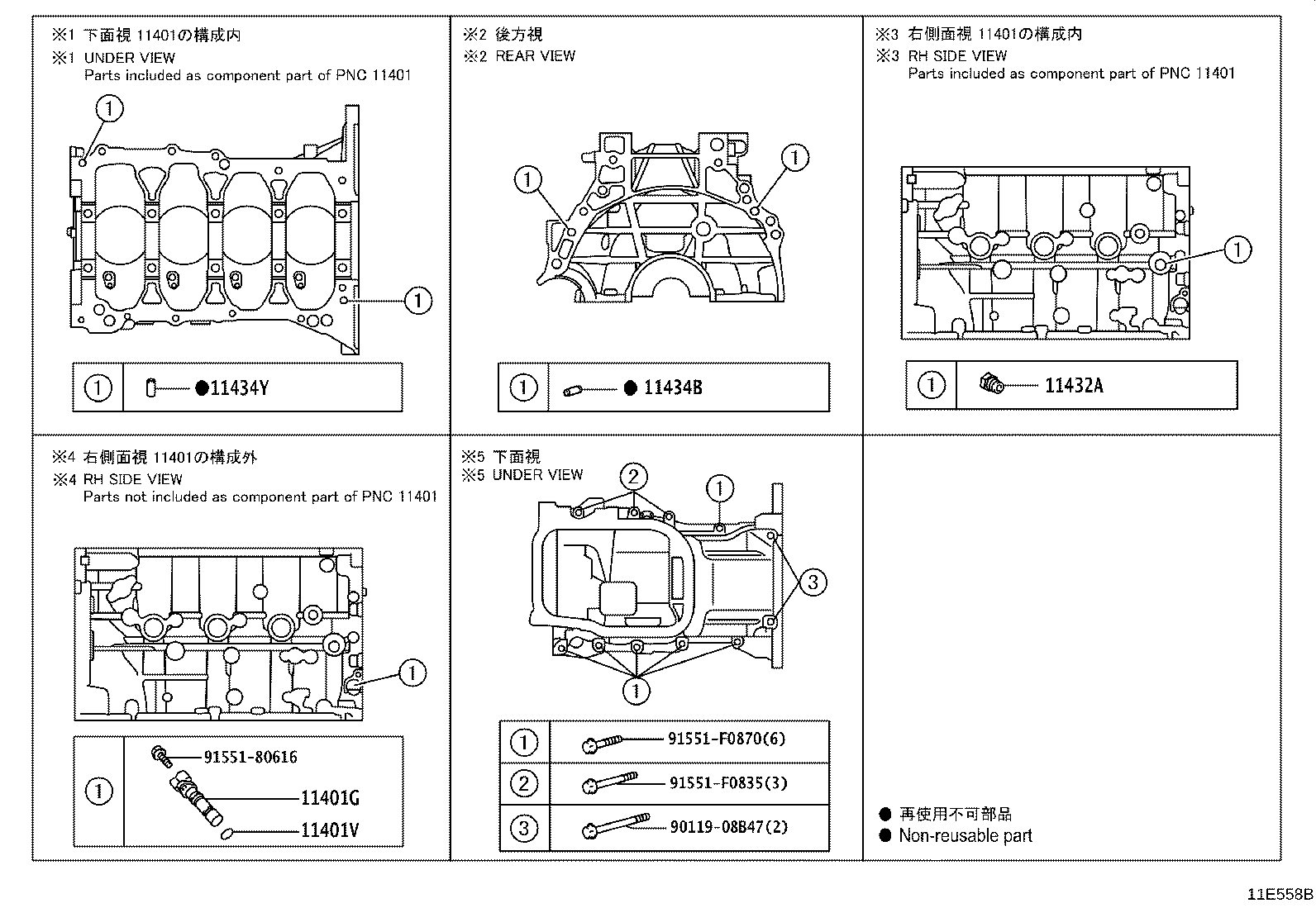

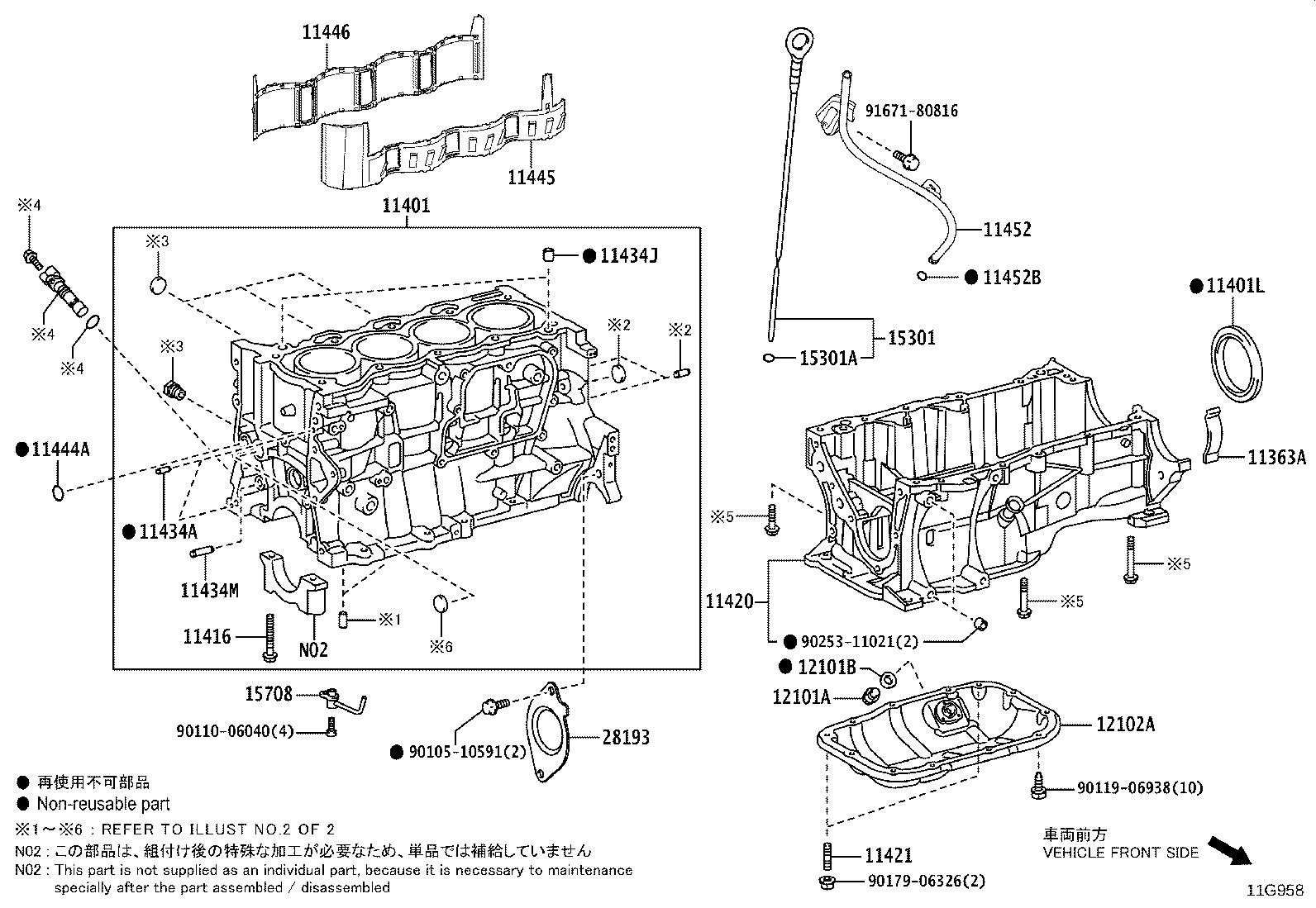

Figure 11E556B 11E556B 2019-09 → — Figure 11G958 11G958 2022-10 → — Figure 11E558B 11E558B 2019-09 → — Figure 11G959 11G959 2022-10 → —

Part groups

PNCDescription
11361J Cover, Flywheel Housing Under
11363A Cover, Flywheel Housing Side
11401 Block Sub-assy, Cylinder
11401G Sensor, Crank Position
11401L Seal, Engine Rear Oil
11401V O-ring, Crank Position Sensor
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11420 Crankcase Assy, Stiffening
11421 Bolt, Stud(FOR OIL PAN)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11432A Plug, W/Head Taper Screw, NO.1
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434M Pin, Straight(FOR CHAIN TENSIONER)
11434Y Pin, Straight(FOR OIL PAN)
11444A Ring, O
11445 Spacer, Cylinder Block Water Jacket
11446 Spacer, Cylinder Block Water Jacket, LH
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12102A Pan Sub-assy, Oil, NO.2
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15708 Nozzle Sub-assy, Oil, NO.1
28193 Insulator, Starter Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
