Toyota Corolla/Touring

2019-09 → present · chassis ZRE212,ZWE219 · catalogue 151380 · General

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

9 part groups · 2 illustrations

Illustrations

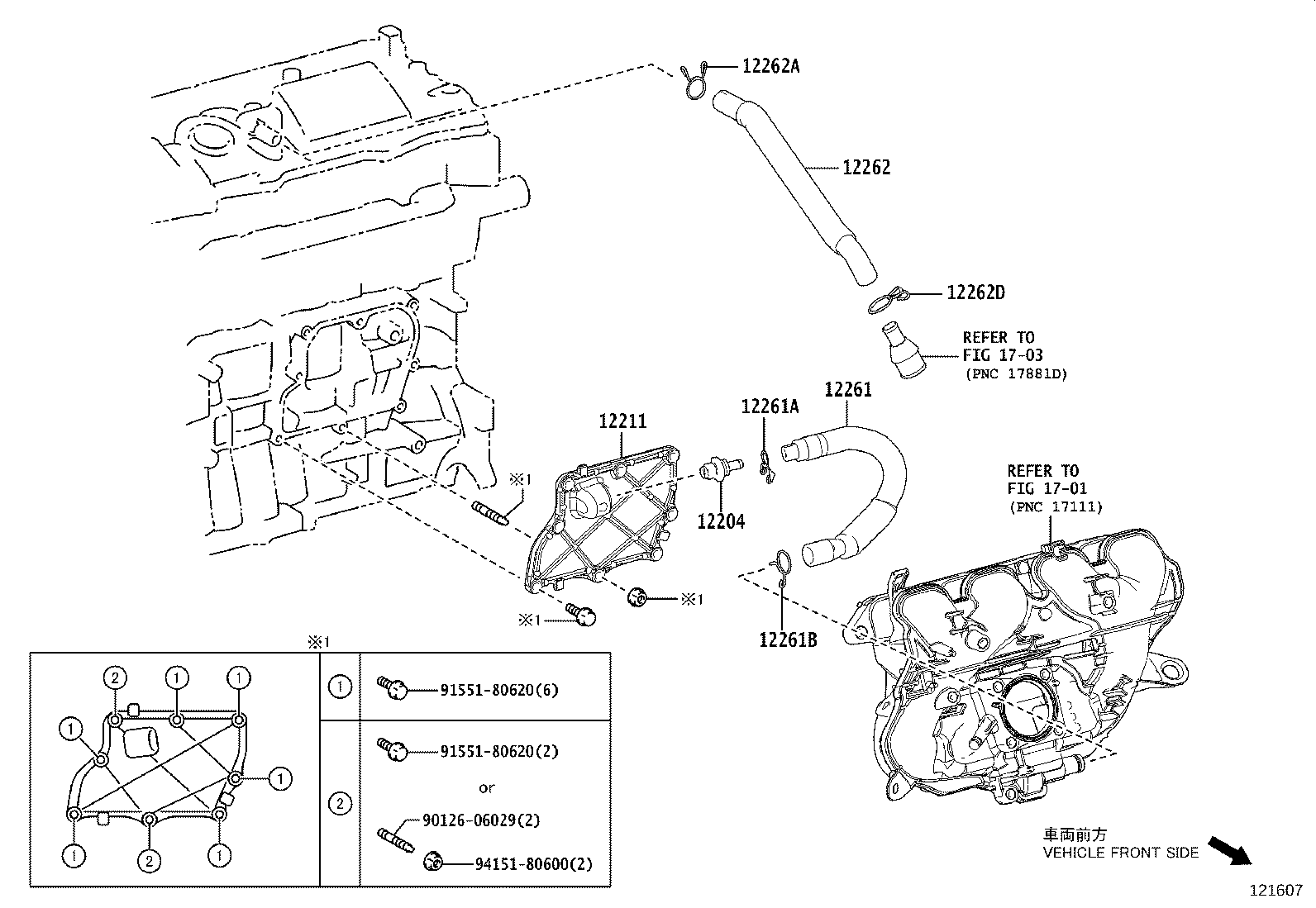

Figure 121359 121359 2019-09 → — Figure 121607 121607 2022-10 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12211 Case, Ventilation, NO.1
12229 Pipe, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12261B Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262D Clip(FOR VENTILATION HOSE NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
