Toyota Corolla/Touring
2019-09 → present · chassis ZRE212,ZWE219 · catalogue 151380 · General
Supported model
Data version 2022-10

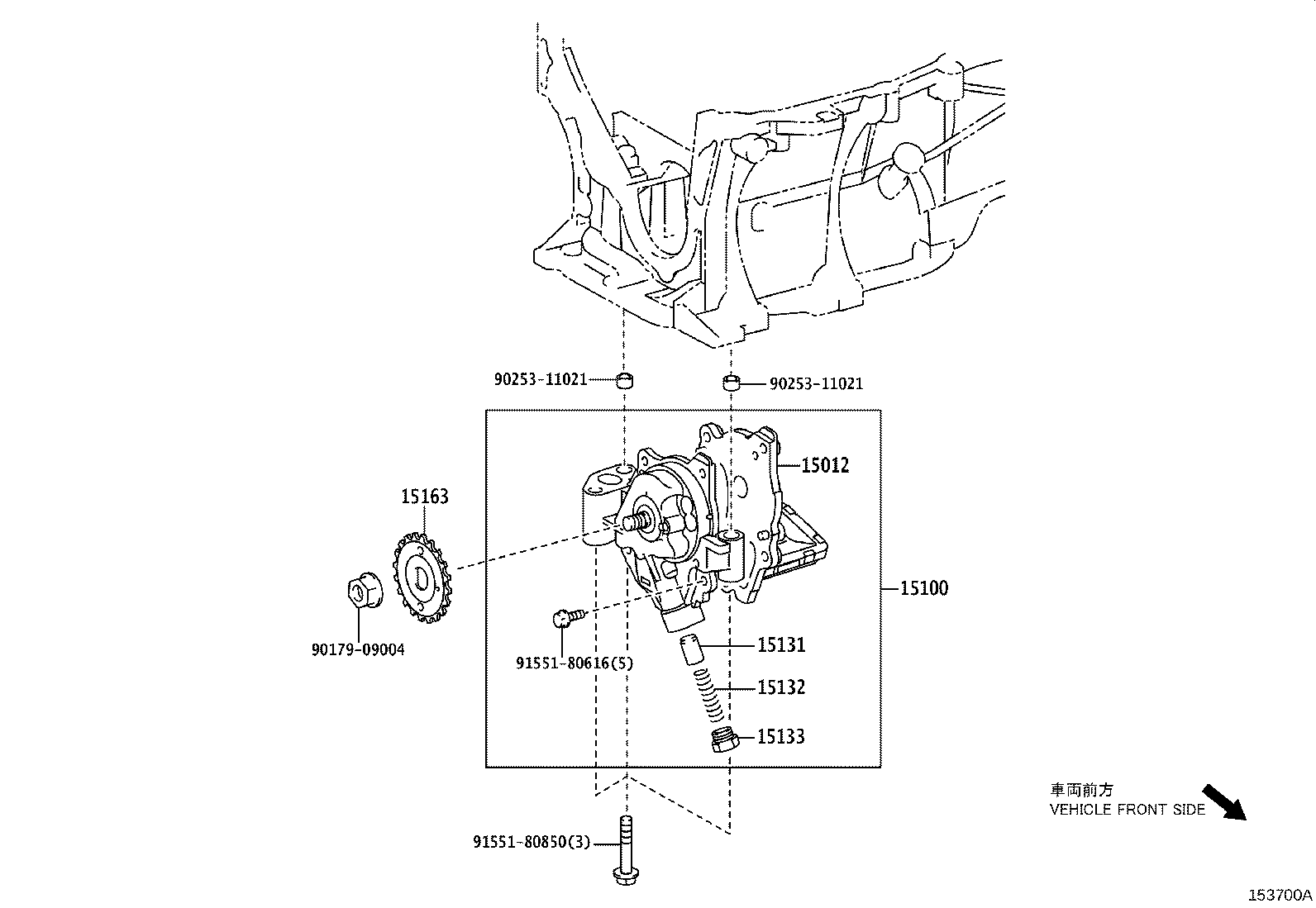

Engine Oil Pump
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15012 | Cover Sub-assy, Oil Pump |
| 15100 | Pump Assy, Oil |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15133 | Plug, Oil Pump Relief Valve |
| 15163 | Gear, Oil Pump Drive Shaft |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
