Toyota Corolla/Touring
2019-09 → present · chassis ZRE212,ZWE219 · catalogue 151380 · General
Supported model
Data version 2022-10

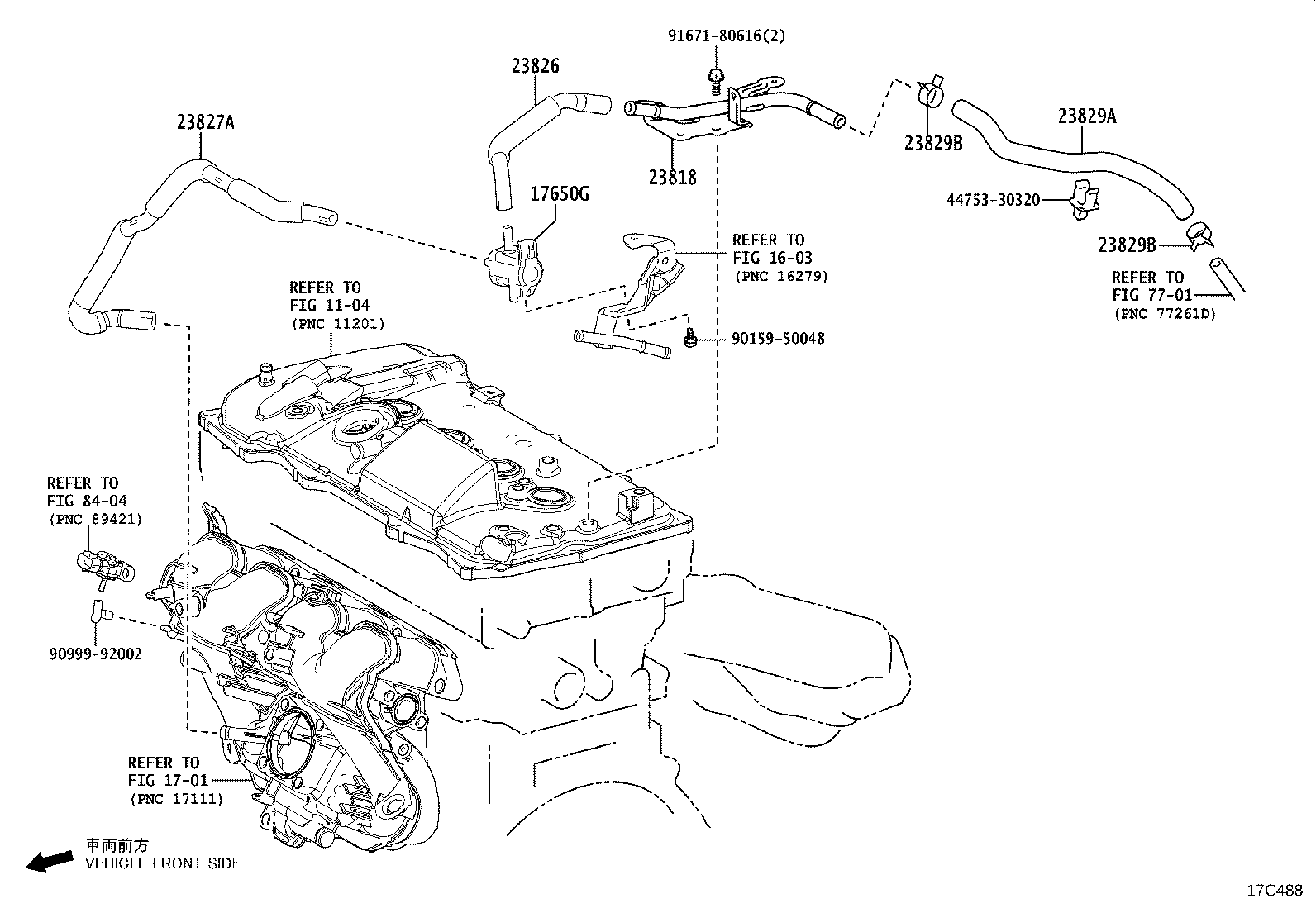

Vacuum Piping
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17302 | Hose Sub-assy, Air |
| 17341T | Hose, Air, NO.1 |
| 17343F | Hose, Air, NO.3 |
| 17650 | Valve Assy, Vacuum Switching |
| 17650G | Valve, Duty Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 23818 | Pipe, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 23841G | Clamp, Fuel Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
