Toyota Corolla/Touring

2019-09 → present · chassis ZRE212,ZWE219 · catalogue 151380 · General

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

10 part groups · 2 illustrations

Illustrations

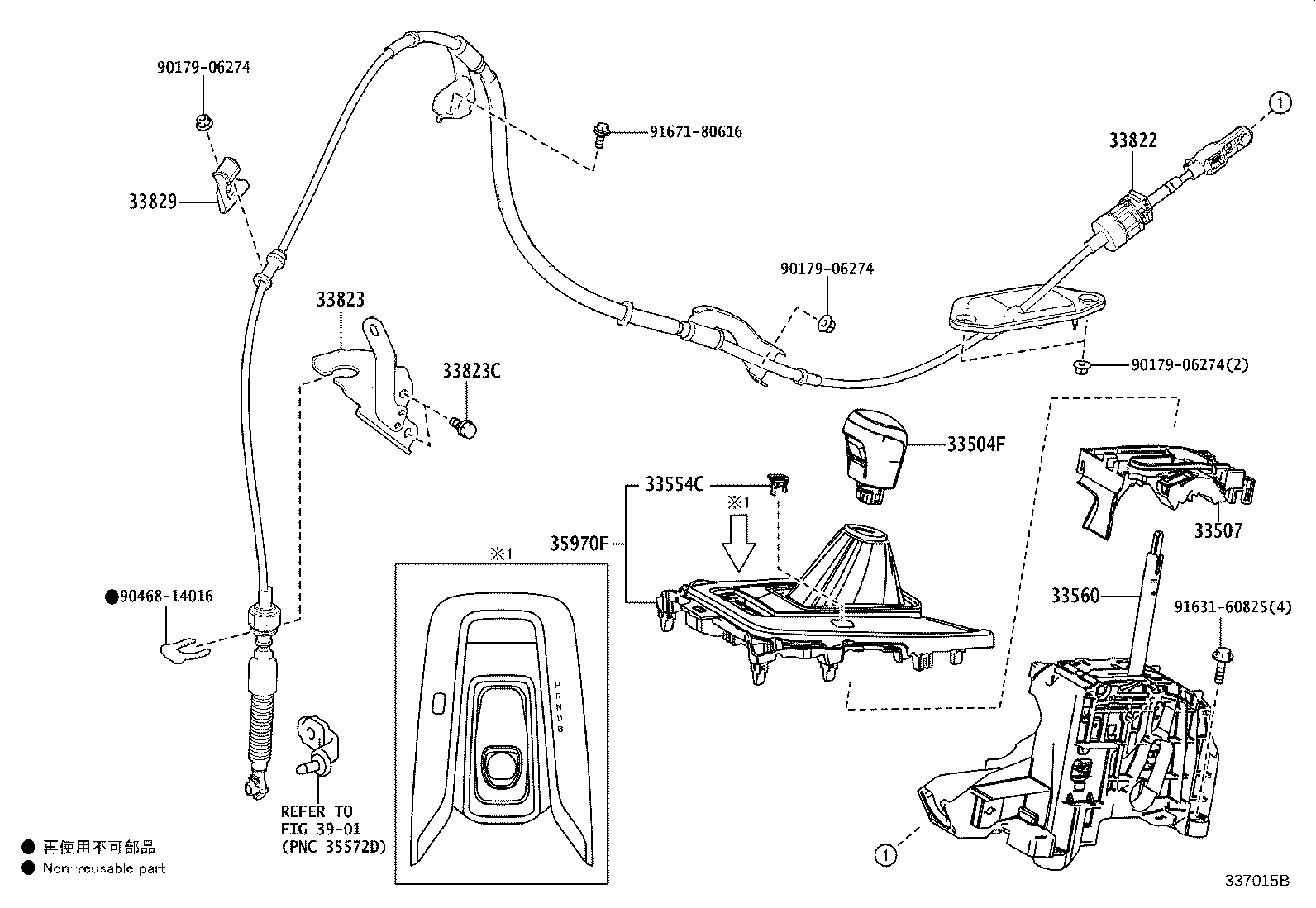

Figure 336055H 336055H 2019-09 → — Figure 337015B 337015B 2022-10 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33507 Bracket Sub-assy, Shift Lever Housing
33554C Cover, Shift Lock Release Button
33560 Unit Assy, Shift Lock Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33822 Cable Transmission Control Select (FOR FLOOR SHIFT)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33829 Support, Transmission Control Cable
35970F Housing Assy, Position Indicator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
