Toyota Corolla/Touring
2019-09 → present · chassis ZRE212,ZWE219 · catalogue 151380 · General
Supported model
Data version 2022-10

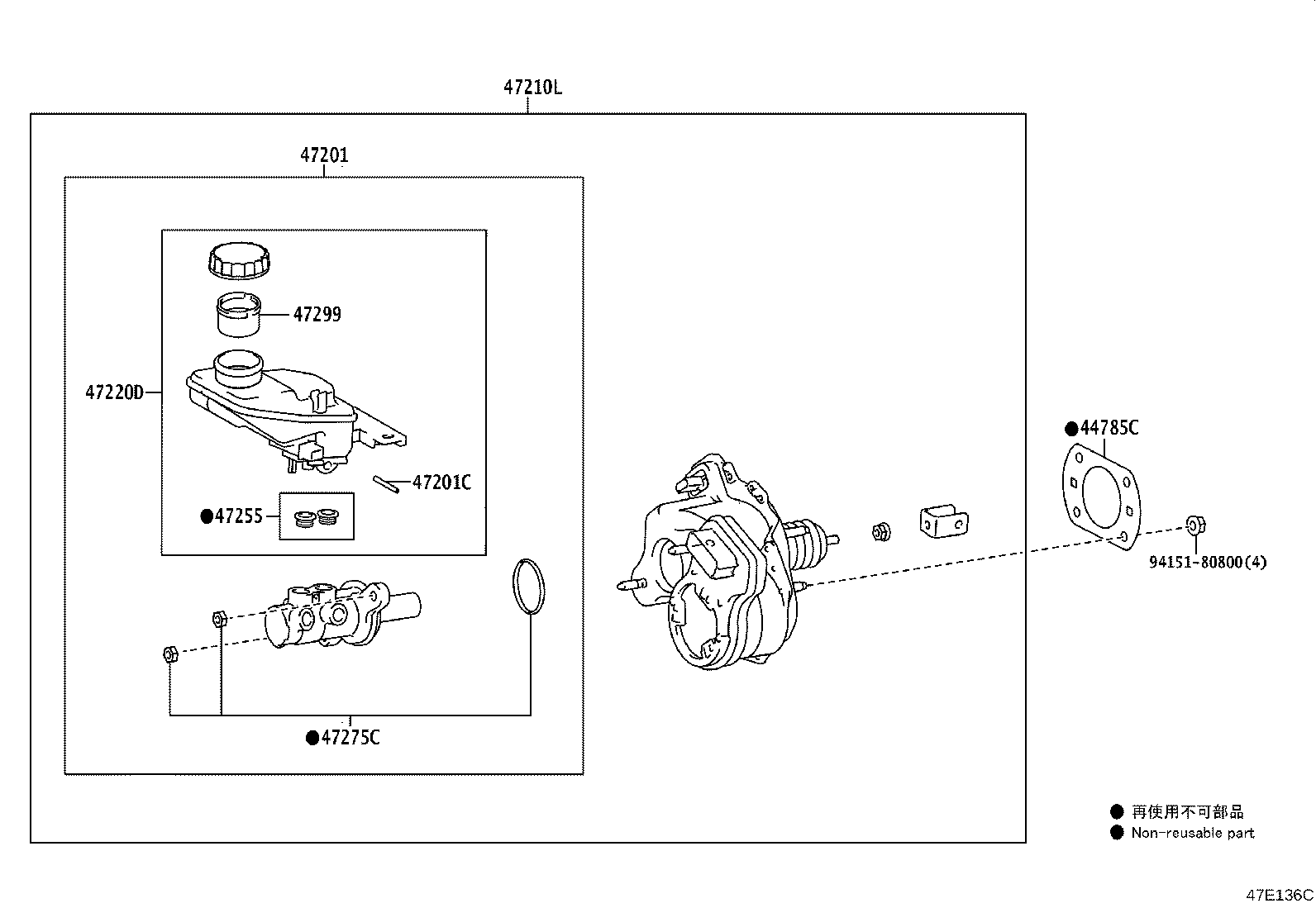

Brake Master Cylinder
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44785C | Gasket, Brake Booster |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47201C | Ring Pin, Brake Master Cylinder |
| 47210L | Brake Booster Assy, W/Master Cylinder |
| 47210U | Pin, Straight(FOR BRAKE MASTER CYLINDER) |
| 47220D | Reservoir Assy, Brake Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47275C | Overhaul Set, Master Cylinder |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
