Toyota Corolla/Touring

2019-09 → present · chassis ZRE212,ZWE219 · catalogue 151380 · General

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

16 part groups · 2 illustrations

Illustrations

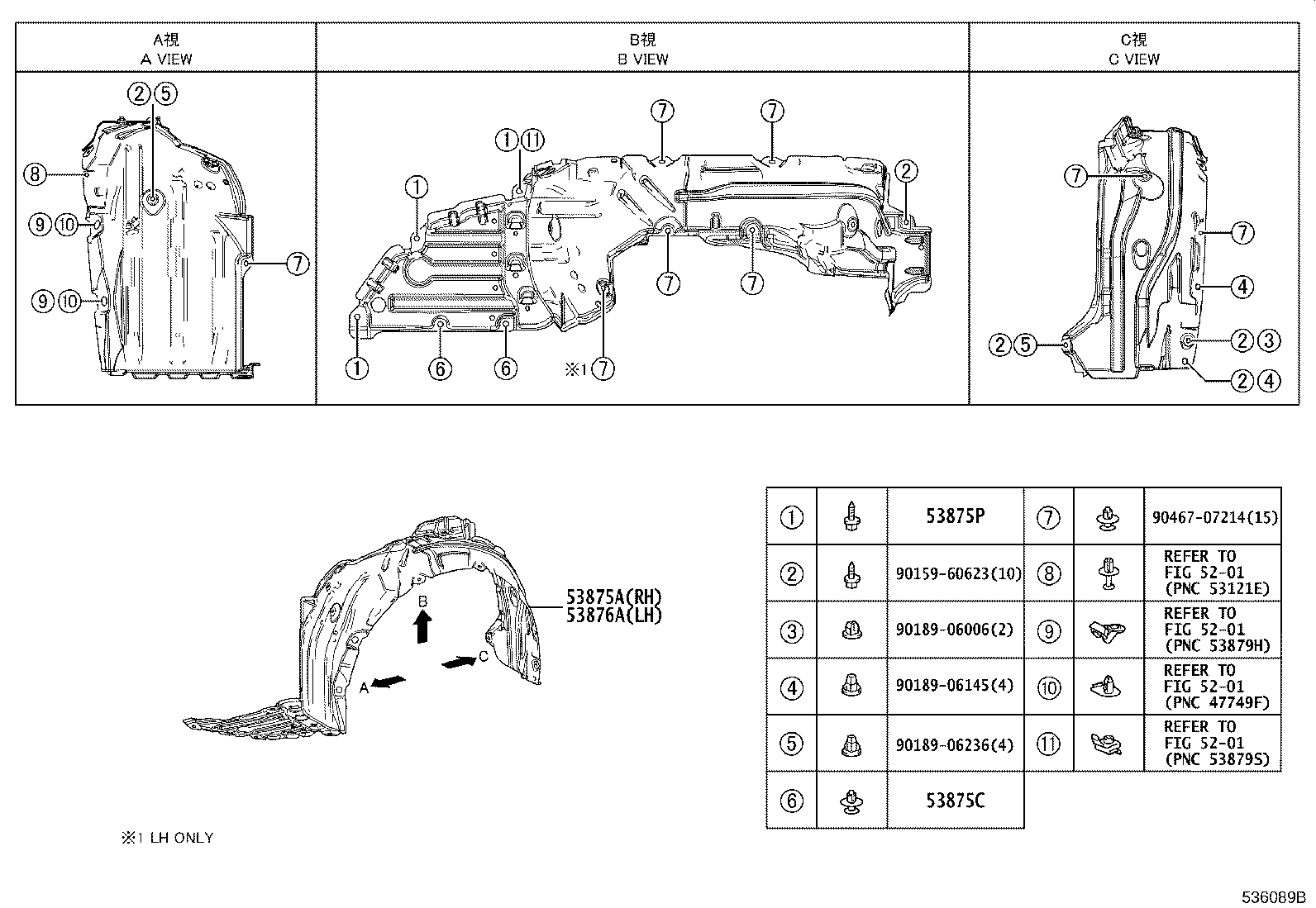

Figure 536088C 536088C 2019-09 → — Figure 536089B 536089B 2019-09 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53301B Cushion, Hood Bumper
53336A Bracket, Hood Stay
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53813D Extension, Front Fender
53823E Protector, Front Side Panel, NO.2 RH
53824B Protector, Front Side Panel, NO.2 LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53882F Seal, Front Fender
53936C Cushion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
