Toyota Corolla/Touring

2019-09 → present · chassis ZRE212,ZWE219 · catalogue 151380 · General

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

11 part groups · 2 illustrations

Illustrations

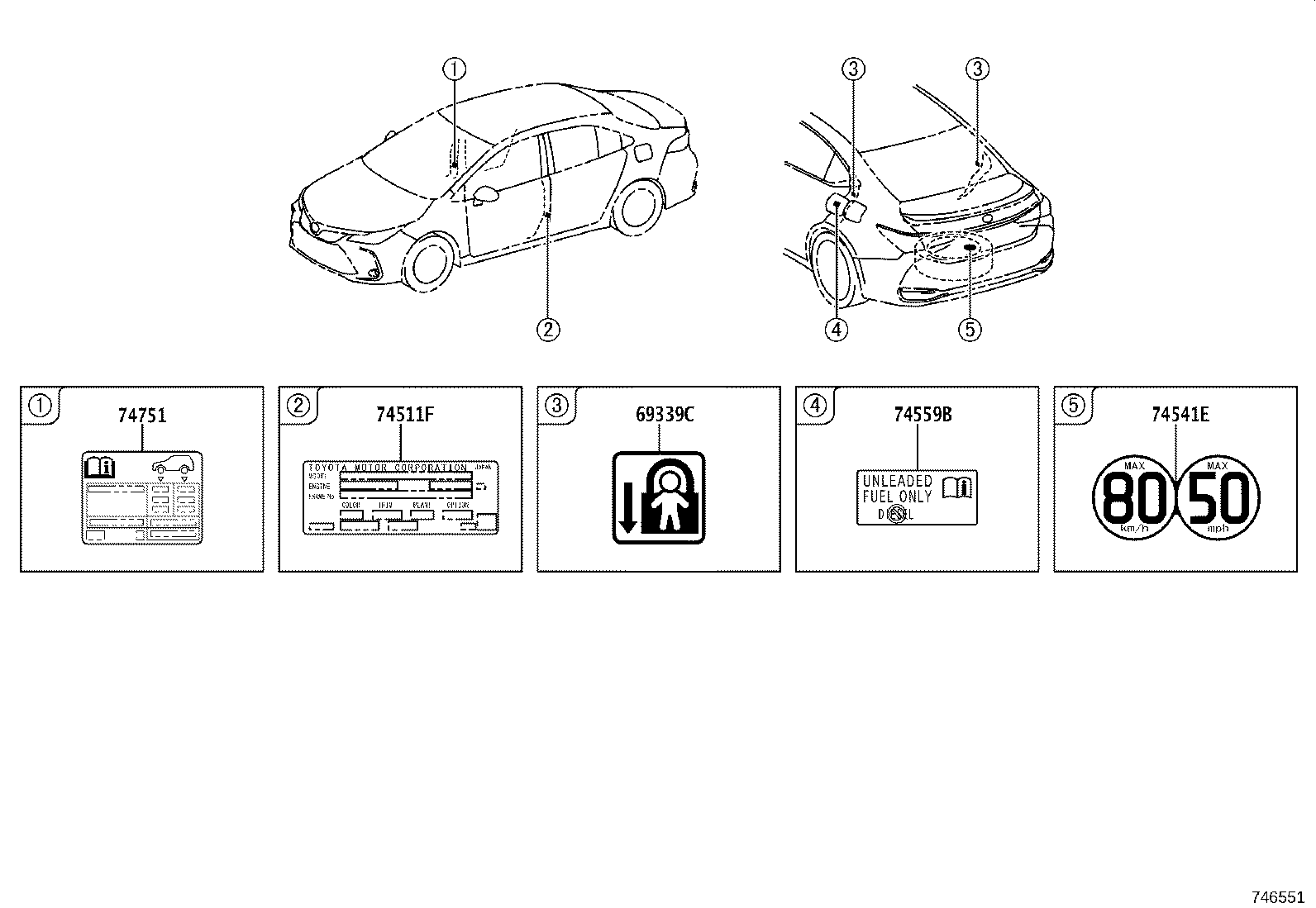

Figure 745023D 745023D 2019-09 → — Figure 746551 746551 2019-09 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
16793E Label, Cooling Fan Caution
288A2A Label, Battery Location, NO.2
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74751 Label, Tire Pressure Information
88723H Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
