Toyota Corolla/Touring
2019-09 → present · chassis ZRE212,ZWE219 · catalogue 151380 · General
Supported model
Data version 2022-10
Hev Inverter
8 part groups · 2 illustrations
Part groups

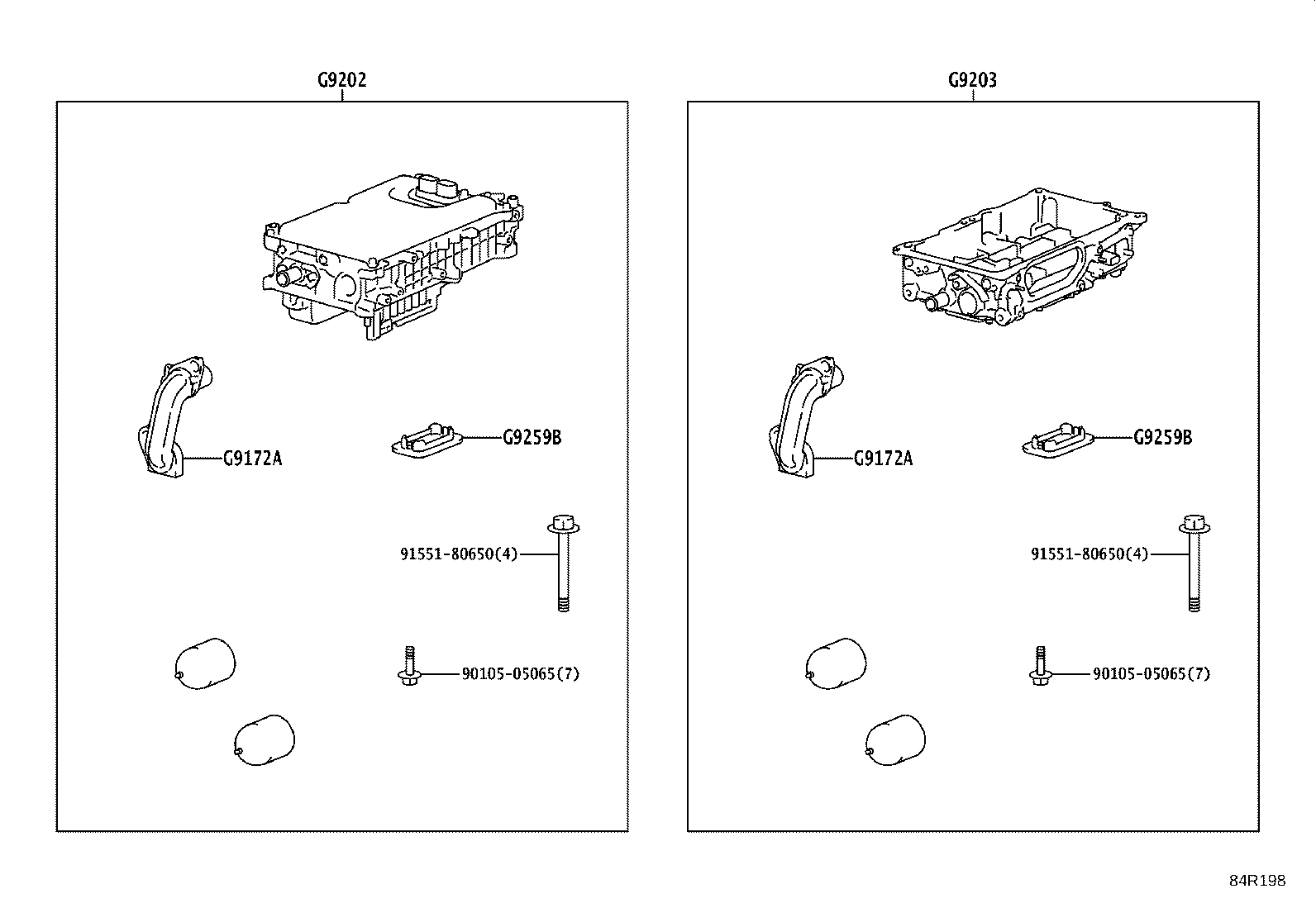

| PNC | Description |
|---|---|
| G9172A | Clamp, Inverter Cooling Pipe |
| G9200 | Inverter Assy, W/Converter |
| G9202 | Case Sub-assy, Inverter |
| G9203 | Case Sub-assy, Converter |
| G9214 | Bracket, Inverter, NO.1 |
| G9215 | Bracket, Inverter, NO.2 |
| G9221 | Cover, Inverter |
| G9259B | Plug, Inverter Drain |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
