Toyota Corolla/Touring
2019-09 → present · chassis ZRE212,ZWE219 · catalogue 151380 · General
Supported model
Data version 2022-10

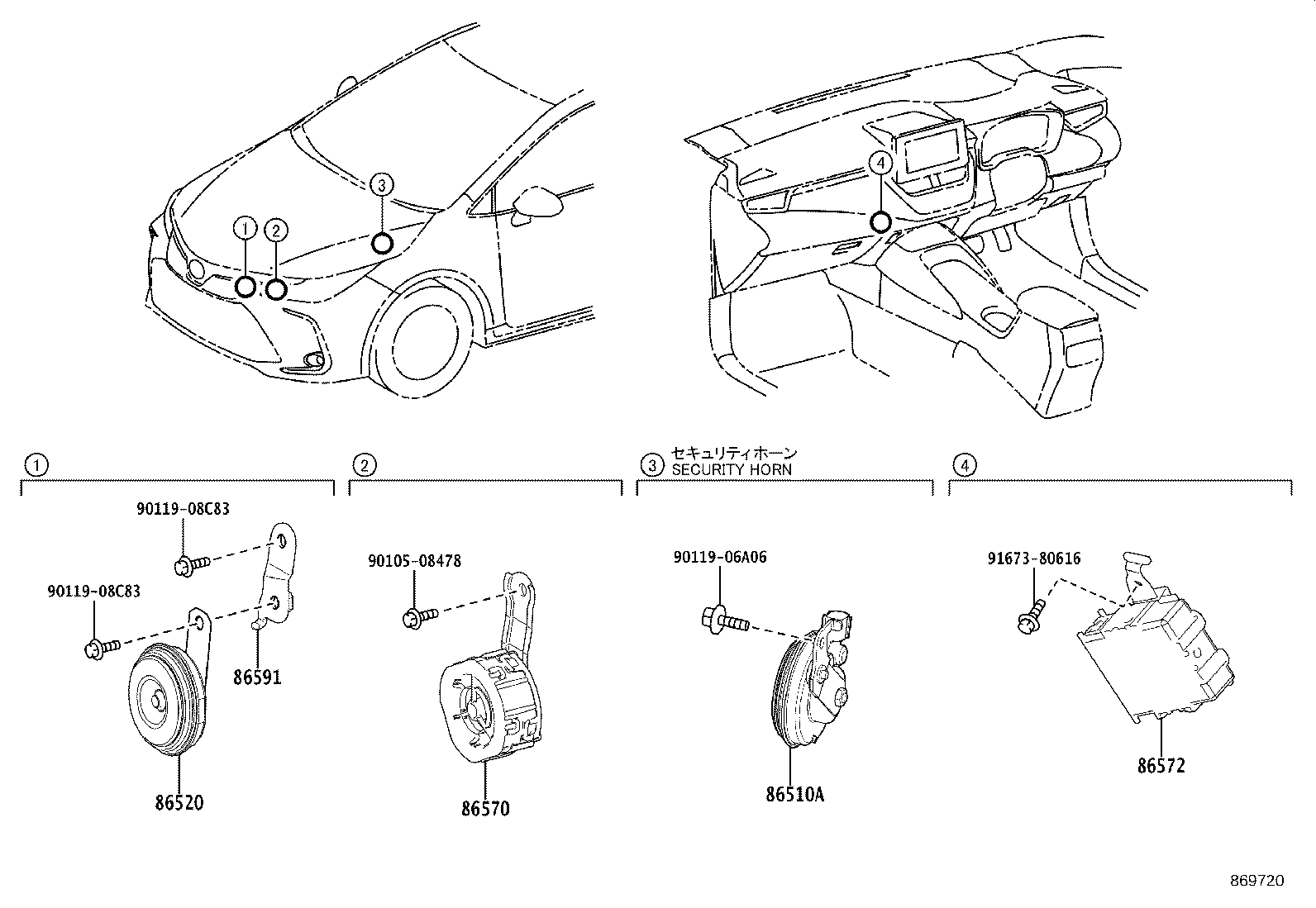

Horn
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86510A | Horn Assy, Security |
| 86520 | Horn Assy, Low Pitched |
| 86570 | Speaker Assy, Vehicle Approaching |
| 86572 | Controller, Vehicle Approaching Speaker |
| 86591 | Bracket, Horn |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
