Toyota Corolla Sprinter
1994-02 → 1996-05 · chassis AE102 · catalogue 152330 · General
Discontinued model
Data version 1997-05

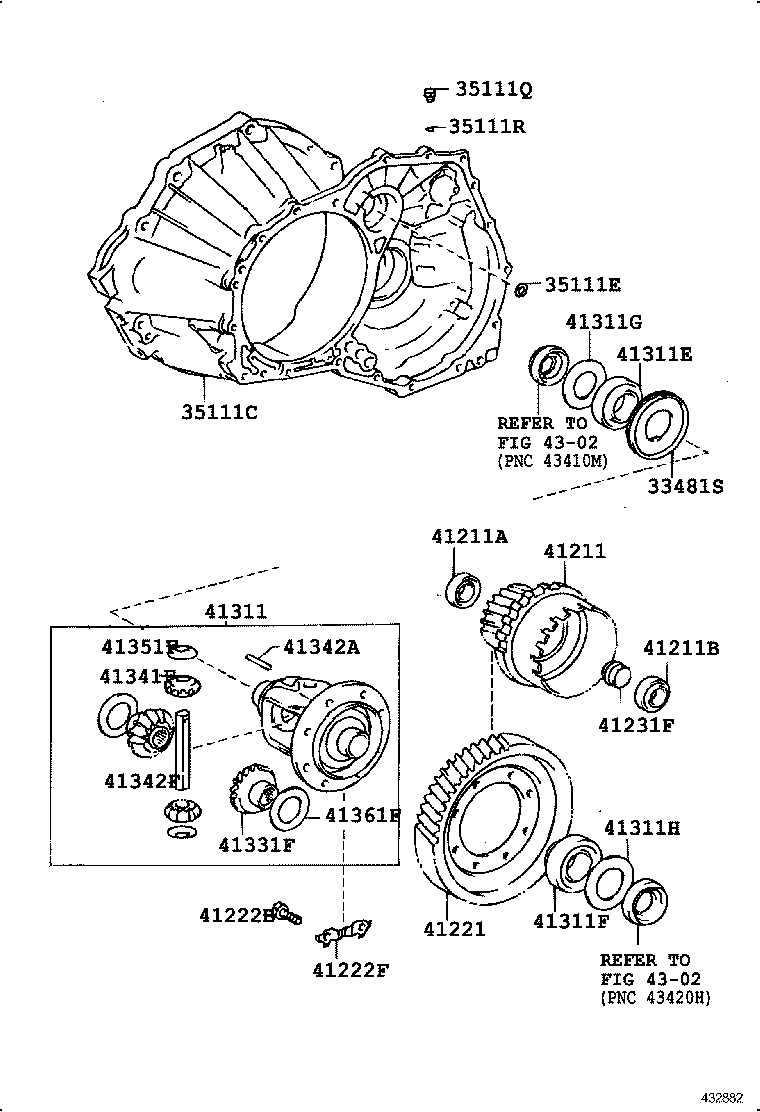

Front Axle Housing & Differential
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31105A | Plug, Tight(FOR FRONT TRANSAXLE CASE) |
| 31105D | Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE) |
| 31115C | Case, Front Transaxle(MTM) |
| 33449 | Magnet, Transmission |
| 33481 | Gear, Speedometer Drive (MTM) |
| 33481S | Gear, Speedometer Drive (ATM) |
| 35111C | Housing, Transaxle |
| 35111E | Washer, Seal (FOR FRONT TRANSAXLE HOUSING) |
| 35111Q | Plug, NO.2 (FOR TRANSAXLE HOUSING) |
| 35111R | Ring, O (FOR TRANSAXLE HOUSING PLUG NO.2) |
| 41211 | Pinion, Differential Drive |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41221 | Gear, Front Differential Ring |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41222F | Plate, Fornt Differential Ring Gear Set Bolt Lock |
| 41231F | Spacer, Front Differential Drive Pinion Bearing |
| 41311 | Case, Front Differential |
| 41311E | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311F | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311G | Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311H | Washer, Plate (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41331F | Gear, Front Differential Side |
| 41341F | Pinion, Front Differential |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
