Toyota Corolla Sprinter

1994-02 → 1996-05 · chassis AE102 · catalogue 152330 · General

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

15 part groups · 2 illustrations

Illustrations

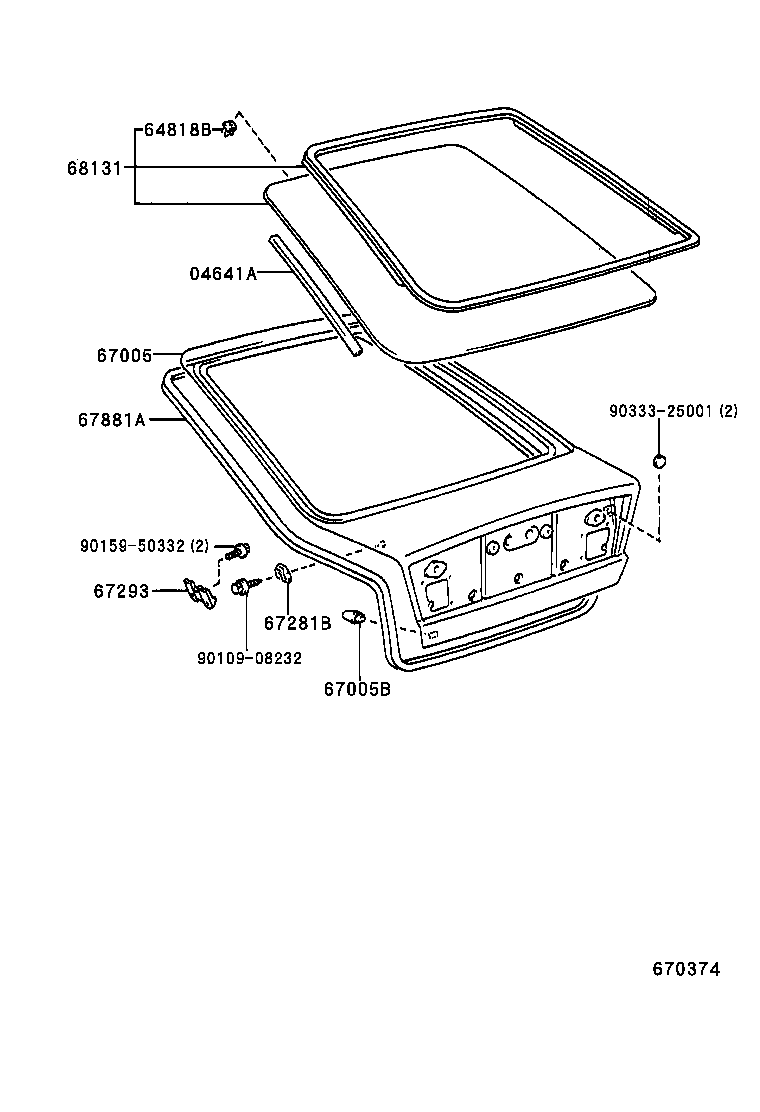

Figure 670384 670384 1992-05 → — Figure 670374 670374 1994-02 → —

Part groups

PNCDescription
04641A Dam Kit, Back Window Glass Adhesive
64373B Stopper, Package Tray Trim
64780C Panel Assy, Back Door Trim, RH
64783A Trim, Back Window Panel, Upper
64790C Panel Assy, Back Door Trim, LH
64818B Spacer, Back Door Glass, NO.1
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67281B Stopper, Back Door, Lower
67293 Cushion, Back Door Lower Stopper
67750 Board Assy, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67765A Cover, Back Door Service Hole, NO.1
67881A Weatherstrip, Back Door
68131 Glass, Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
