Toyota Corolla Sprinter
1994-02 → 1996-05 · chassis AE102 · catalogue 152330 · General
Discontinued model
Data version 1997-05
Switch & Relay & Computer
78 part groups · 8 illustrations

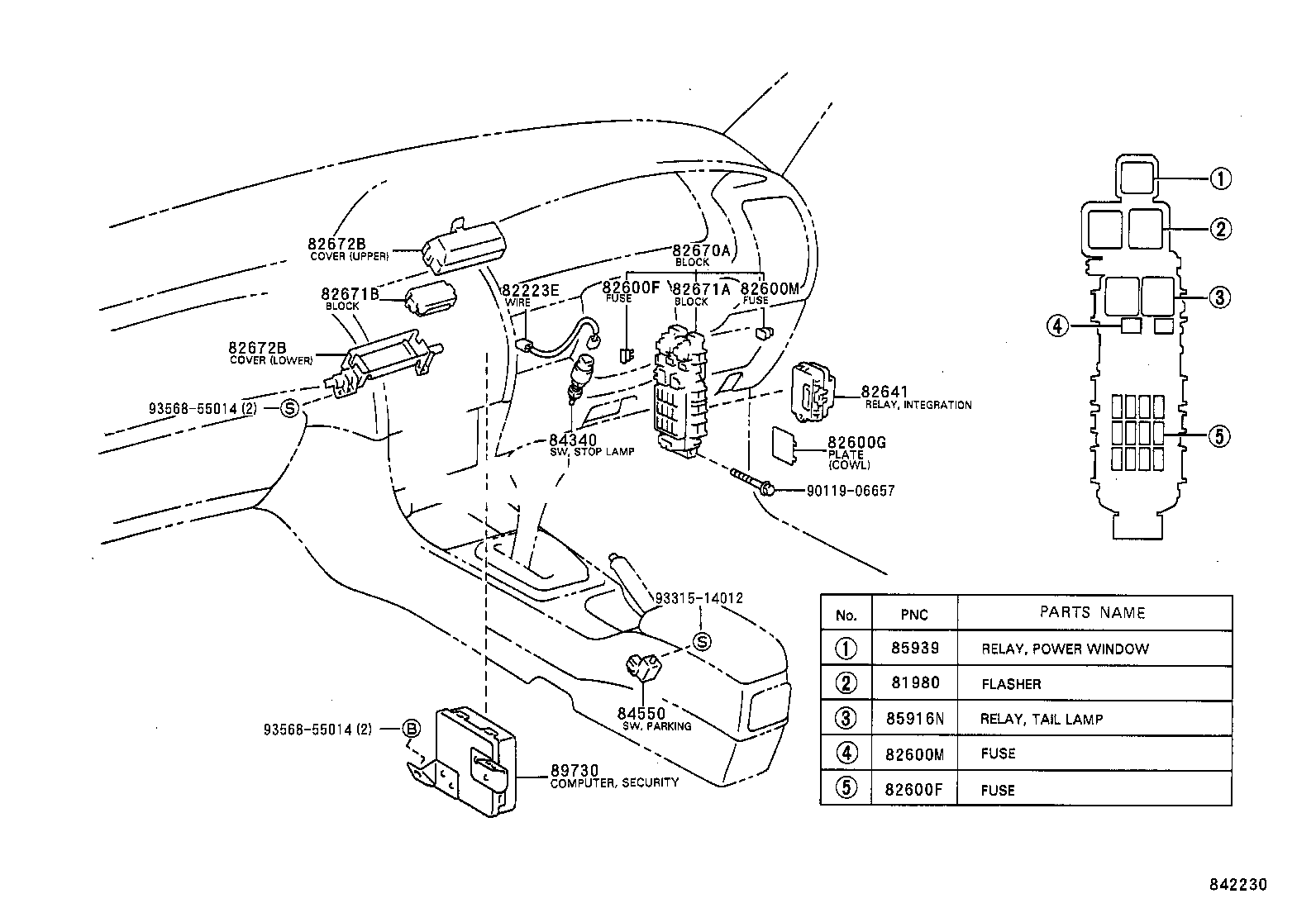

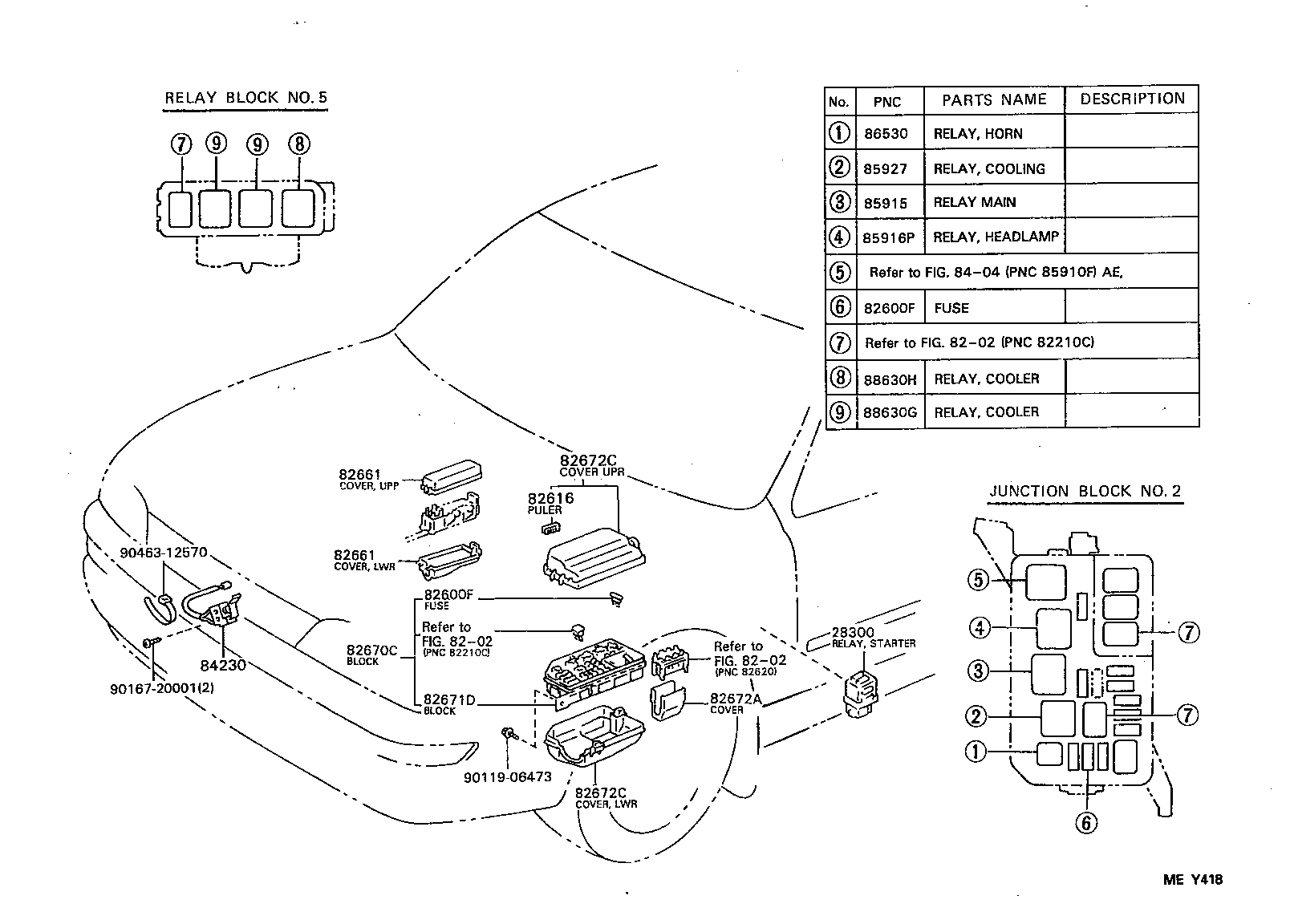

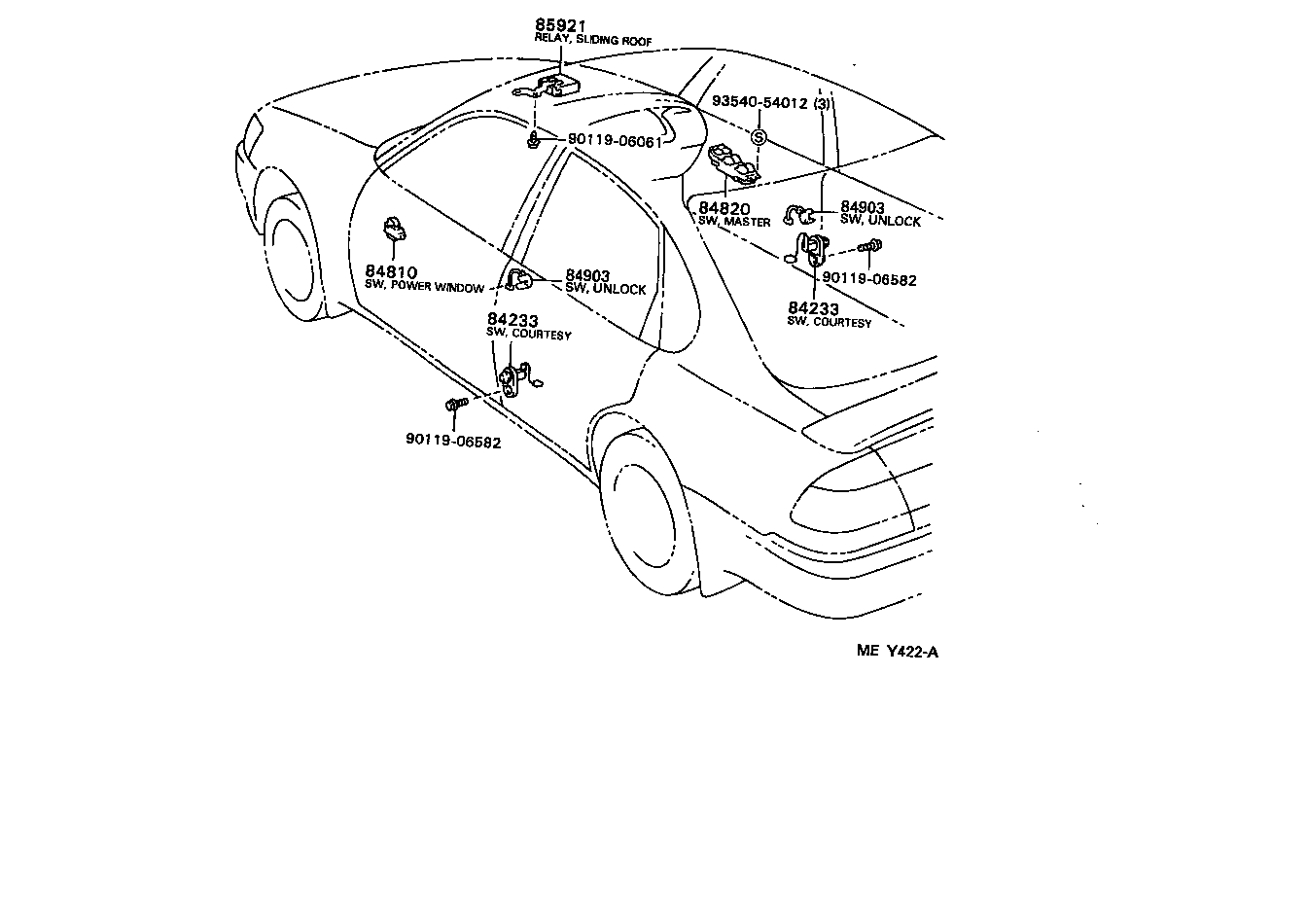

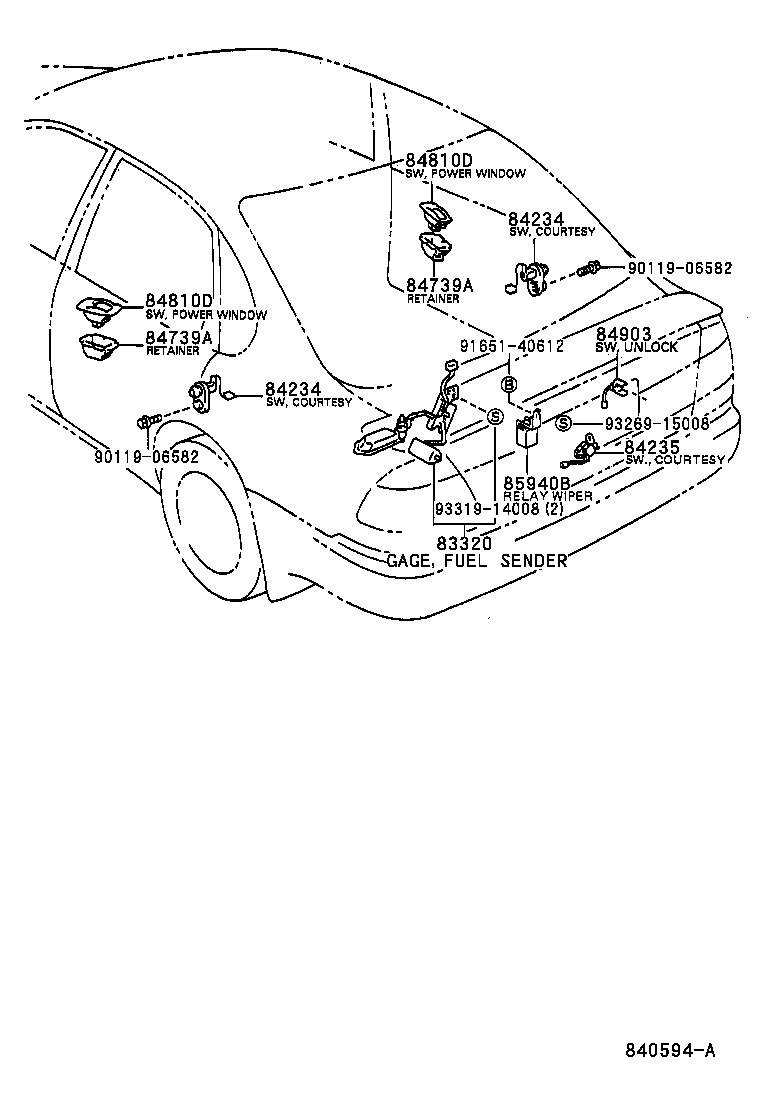

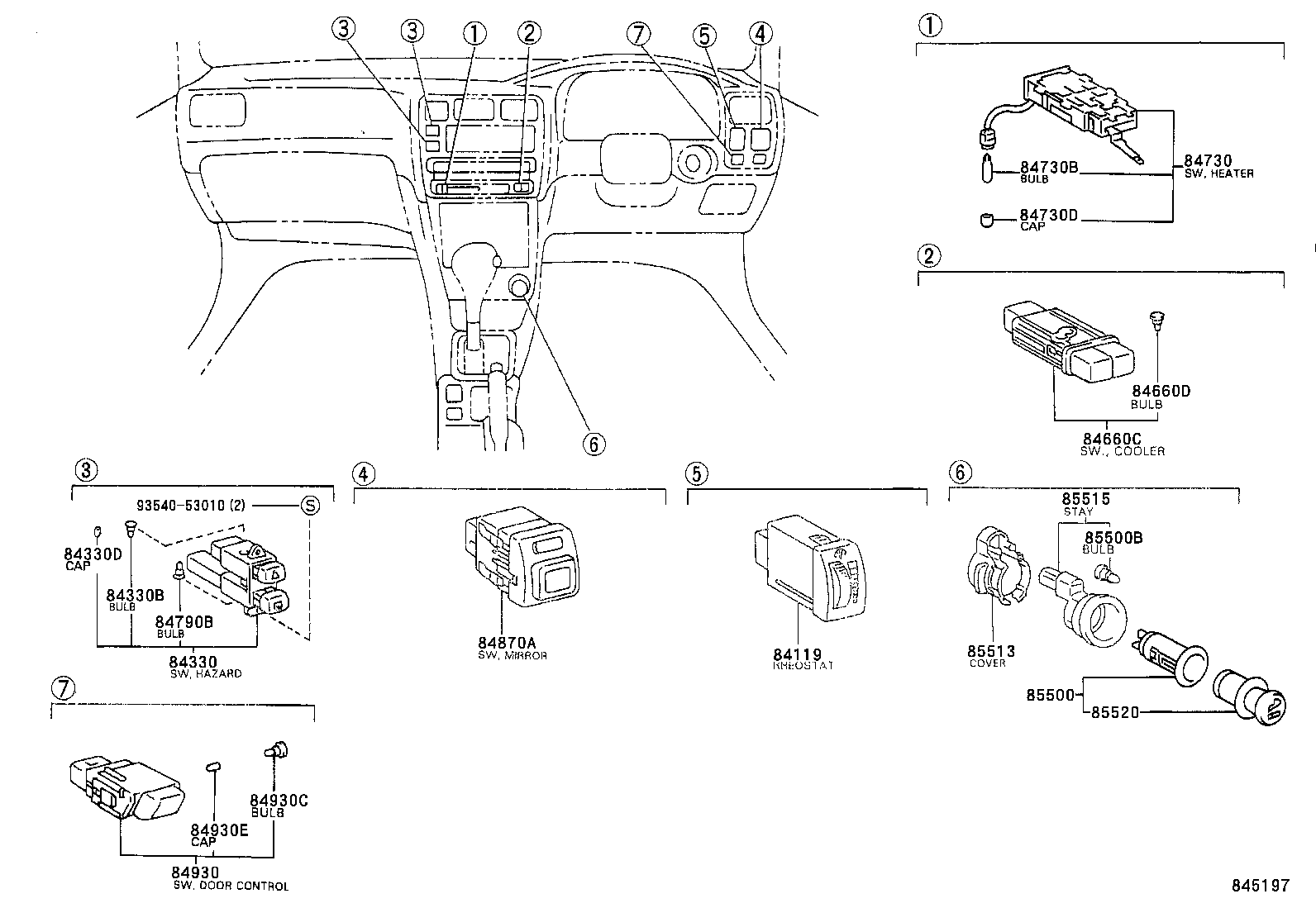

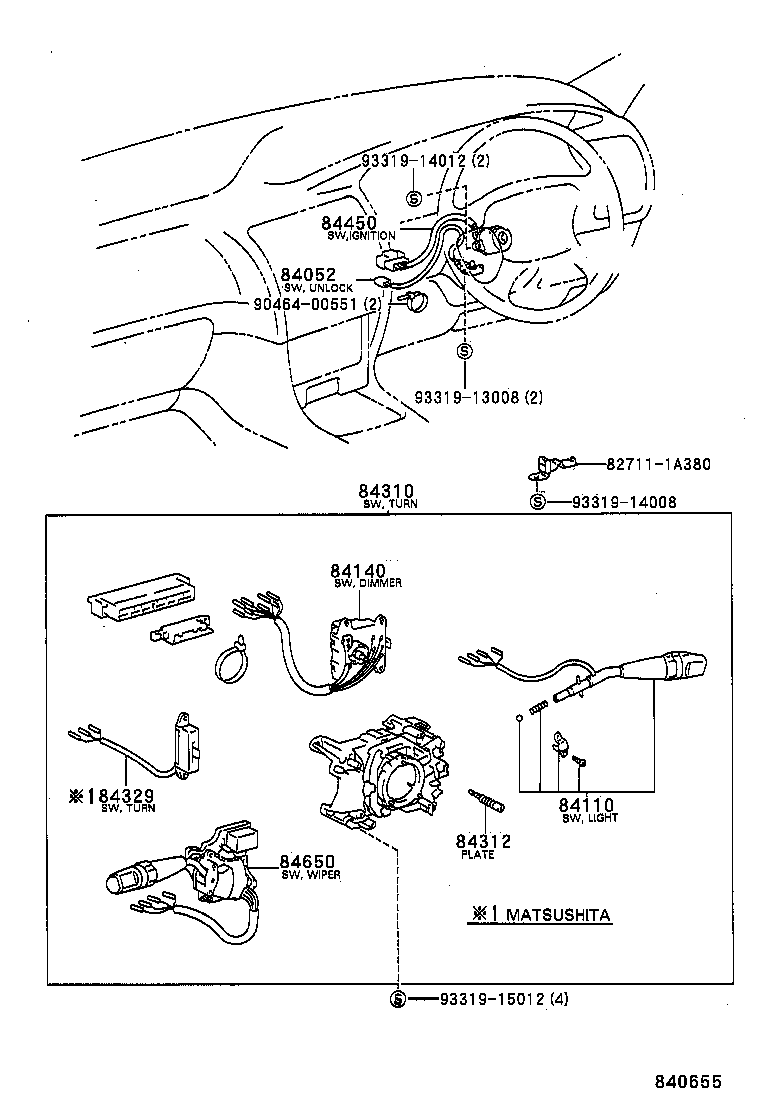

Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 81980 | Flasher Assy, Turn Signal |
| 82223E | Wire, Clutch Start Switch |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82600M | Fuse, Medium Current |
| 82616 | Puller, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82661 | Cover, Relay Block, NO.1 |
| 82670A | Block Assy, Junction, NO.1 |
| 82670B | Block Assy, Junction, NO.2 |
| 82670C | Block Assy, Junction, NO.3 |
| 82671A | Block, Junction |
| 82671B | Block, Junction |
| 82671C | Block, Junction |
| 82671D | Block, Junction |
| 82672A | Cover, Junction Block |
| 82672B | Cover, Junction Block |
| 82672C | Cover, Junction Block |
| 83320 | Gage Assy, Fuel Sender |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84230 | Switch Assy, Courtesy Lamp (FOR ENGINE ROOM) |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84330D | Cap, Hazard Warning Switch Bulb |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84660C | Switch, Cooler |
| 84660D | Bulb(FOR COOLER SWITCH) |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84730D | Cap, Heater Blower Switch Bulb |
| 84739A | Retainer, Switch |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84903 | Switch Sub-assy, Door Un-lock |
| 84930 | Switch Assy, Door Control |
| 84930C | Bulb(FOR DOOR CONTROL SWITCH) |
| 84930E | Cap(FOR DOOR CONTROL SWITCH BULB) |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85915 | Relay, Main |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85921 | Relay, Sliding Roof Control |
| 85927 | Relay, Cooling Fan |
| 85939 | Relay, Power Window |
| 85940B | Relay Assy, Rear Wiper |
| 86530 | Relay Assy, Horn |
| 88630G | Relay Assy, Cooler |
| 88630H | Relay Assy, Cooler |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89615 | Sensor, Knock Control |
| 89730 | Computer Assy, Security Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
