Toyota Corolla Sprinter
1994-02 → 1996-05 · chassis AE102 · catalogue 152330 · General
Discontinued model
Data version 1997-05

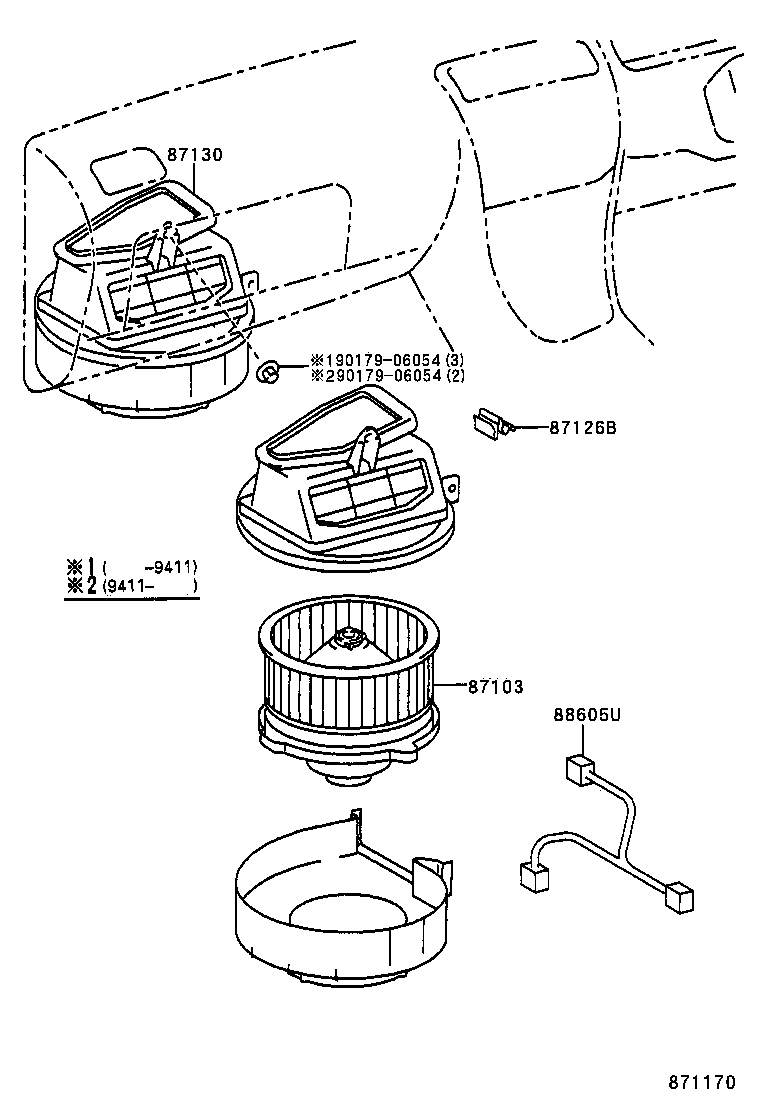

Heating & Air Conditioning - Heater Unit & Blower
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87126A | Clamp, Heater Control |
| 87126B | Clamp, Heater Control |
| 87130 | Blower Assy, Heater, Front |
| 87150 | Radiator Assy, Heater |
| 87201D | Duct Sub-assy, Air |
| 87211F | Duct, Air |
| 88605U | Harness Sub-assy, Wiring Air Conditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
