Toyota Corolla Sprinter

1994-02 → 1996-05 · chassis AE102 · catalogue 152330 · General

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

14 part groups · 2 illustrations

Illustrations

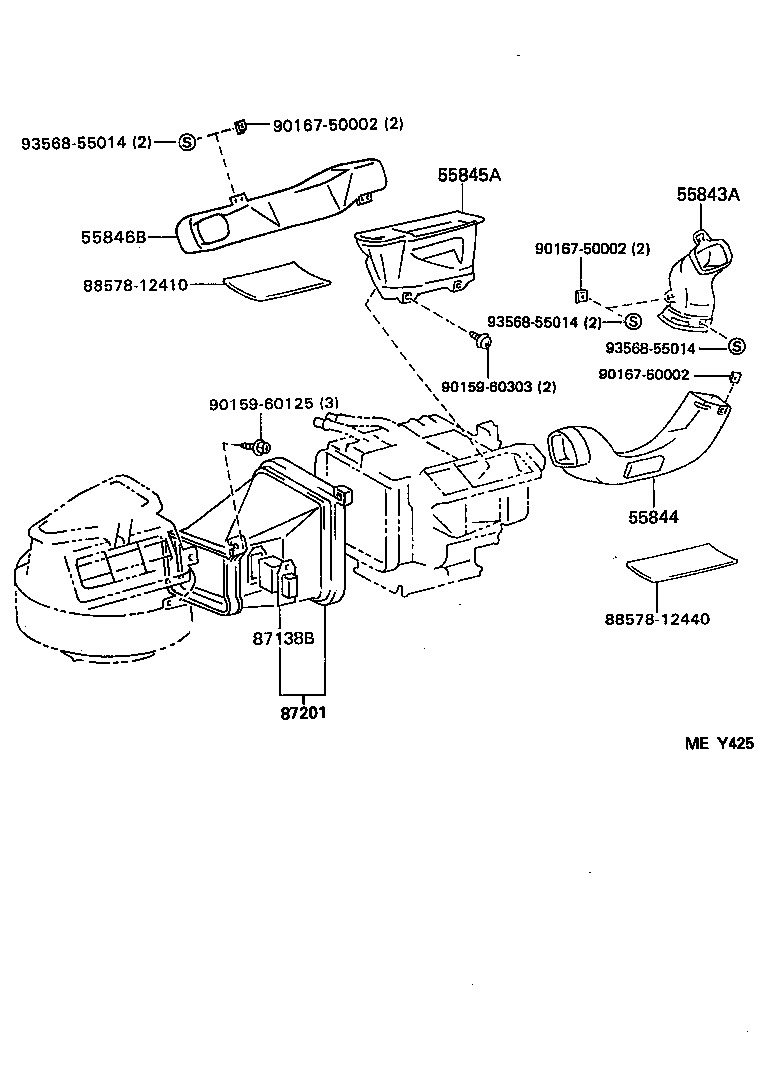

Figure MEY424A MEY424A 1994-02 → — Figure MEY425 MEY425 1994-02 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846B Duct, Heater TO Register, NO.4
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55916A Lever, Cooler Control
55917A Lever, Temperature Damper Control
87138B Resistor, Heater Blower
87201 Duct Sub-assy, Air, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
