Toyota Corolla

2013-08 → 2019-03 · chassis ZRE172 · catalogue 152370 · General

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

10 part groups · 2 illustrations

Illustrations

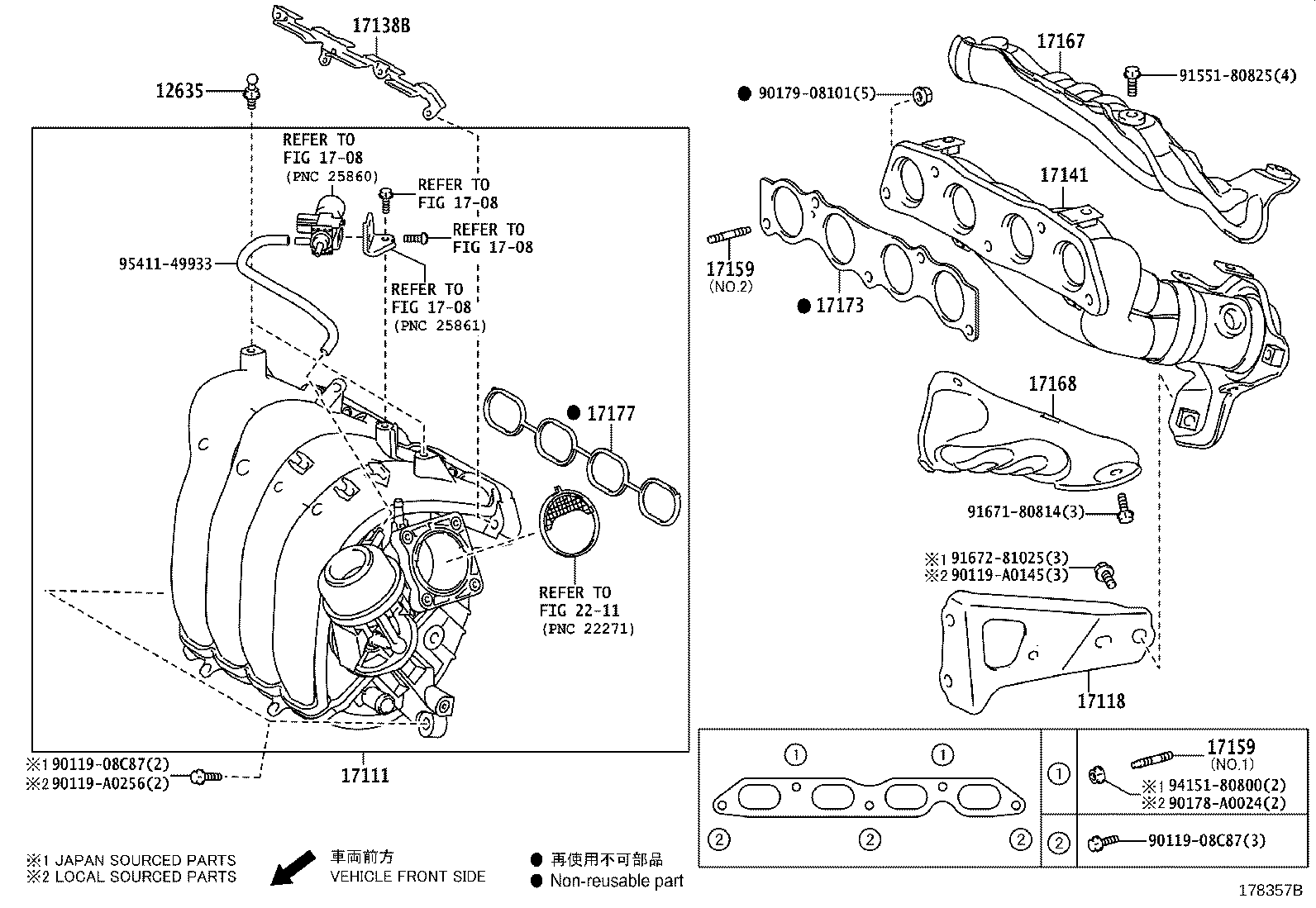

Figure 178080C 178080C 2013-08 → — Figure 178357B 178357B 2014-04 → —

Part groups

PNCDescription
12635 Joint, Engine Cover
17111 Manifold, Intake
17118 Stay, Manifold
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
