Toyota Corolla

2013-08 → 2019-03 · chassis ZRE172 · catalogue 152370 · General

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

19 part groups · 3 illustrations

Illustrations

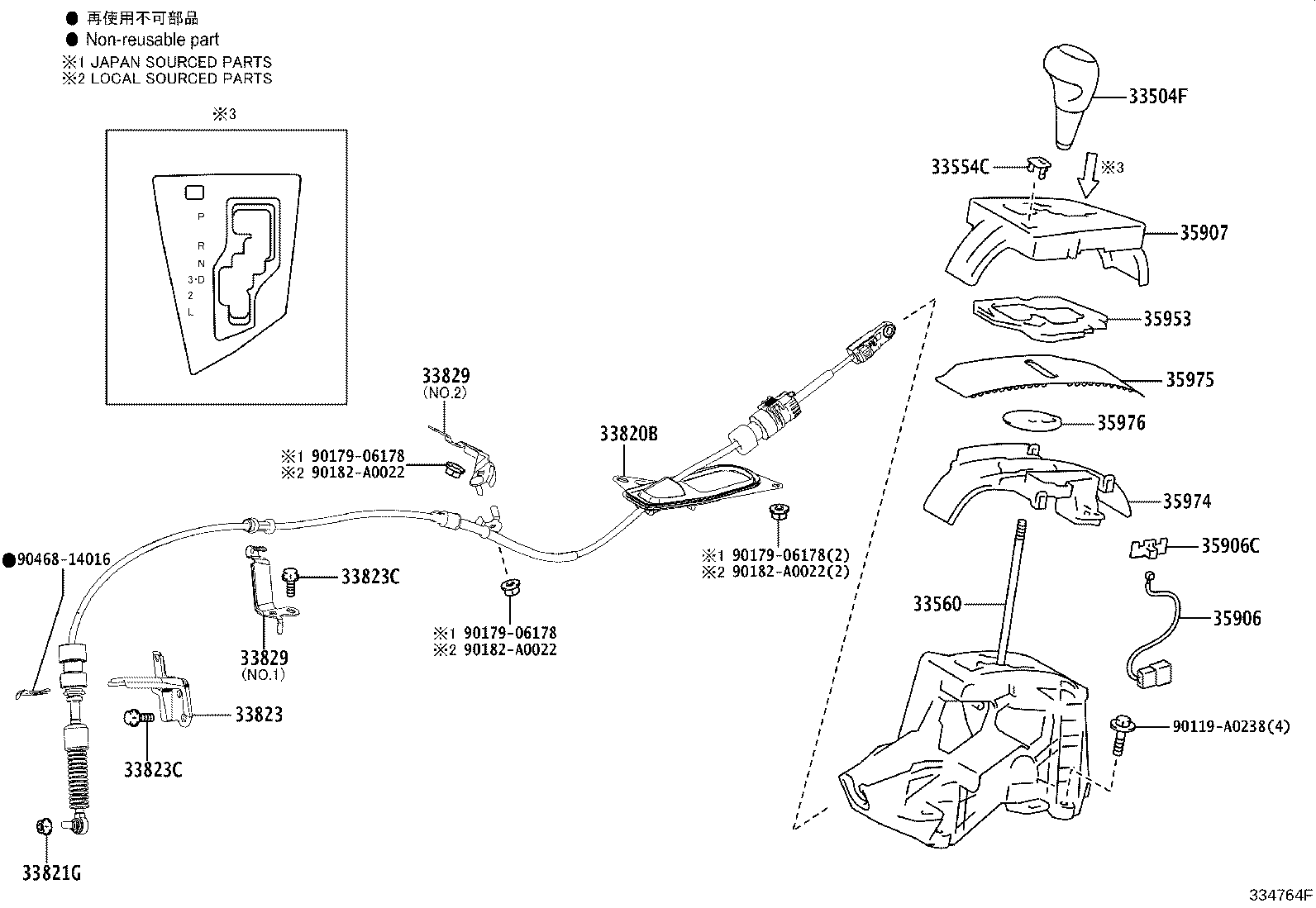

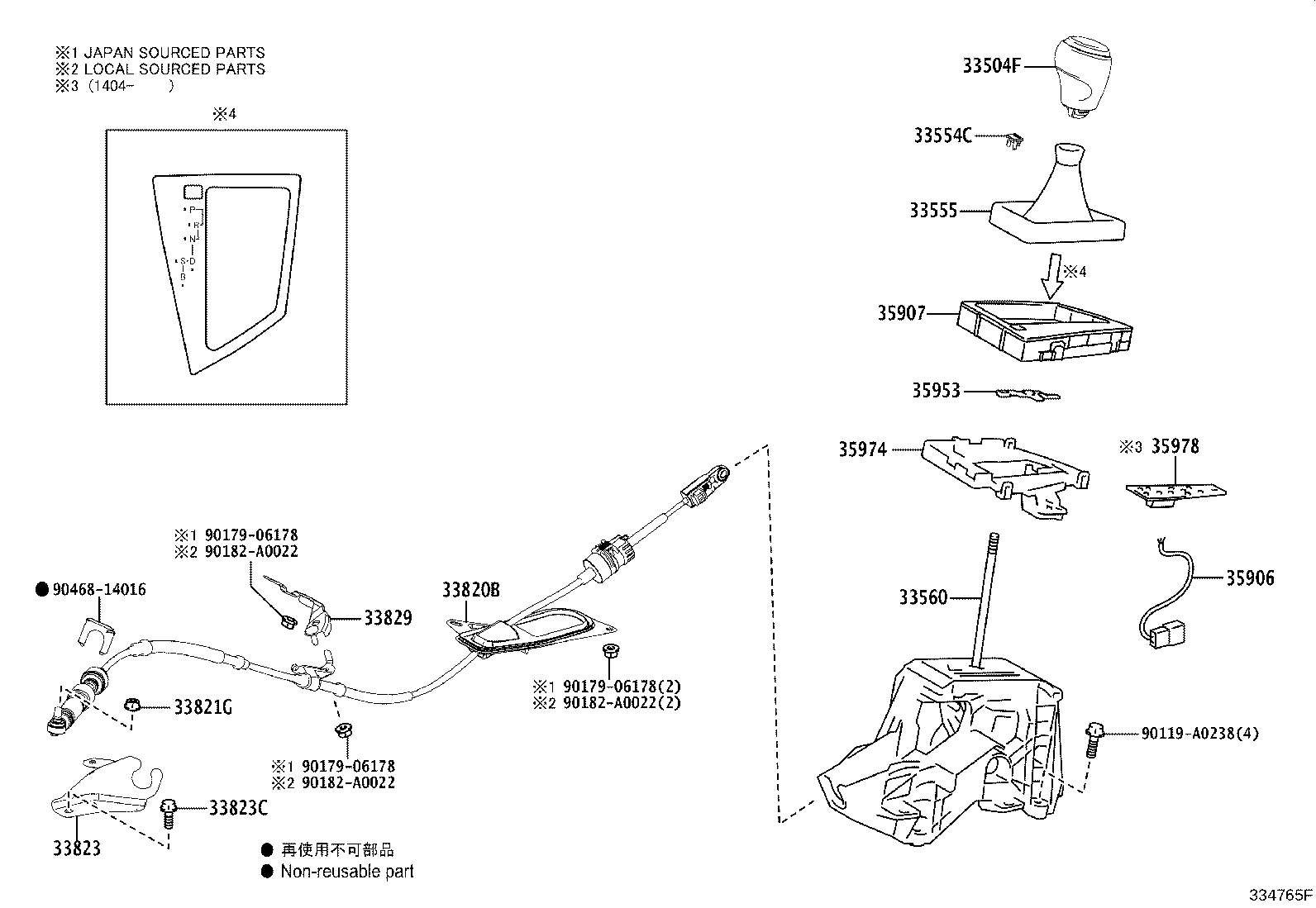

Figure 334763A 334763A 2013-08 → — Figure 334764F 334764F 2013-08 → 2014-08 Figure 334765F 334765F 2014-04 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33554C Cover, Shift Lock Release Button
33555 Boot, Shift Lever
33560 Unit Assy, Shift Lock Control
335A0 Bracket Assy, Control Cable
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33829 Support, Transmission Control Cable
35906 Wire Sub-assy, Indicator Lamp
35906C Chip, Indicator Lamp
35907 Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
35953 Guide, Position Indicator Light
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
