Toyota Corolla

2013-08 → 2019-03 · chassis ZRE172 · catalogue 152370 · General

Supported model Data version 2019-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 3 illustrations

Illustrations

Figure 534033A

534033A 2013-08 → 2016-08

Figure 535041B

535041B 2016-08 → —

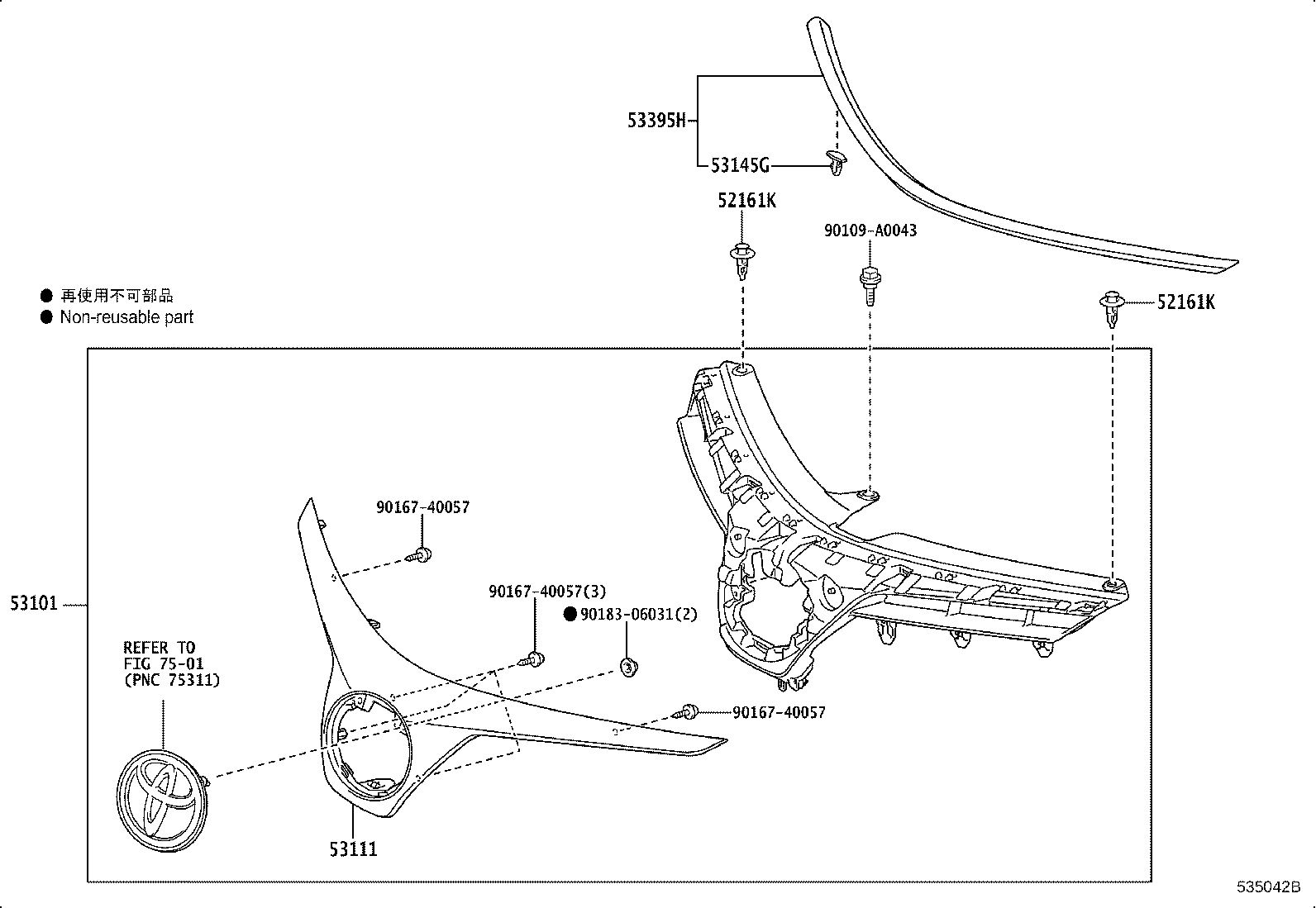

Figure 535042B

535042B 2016-08 → —

Part groups

PNC	Description
52161K	Piece, Front Bumper
53101	Grille Sub-assy, Radiator
53111	Grille, Radiator
53145G	Clip, Radiator Grille
53395H	Seal, Hood TO Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
