Toyota Corolla
2013-08 → 2019-03 · chassis ZRE172 · catalogue 152370 · General
Supported model
Data version 2019-04

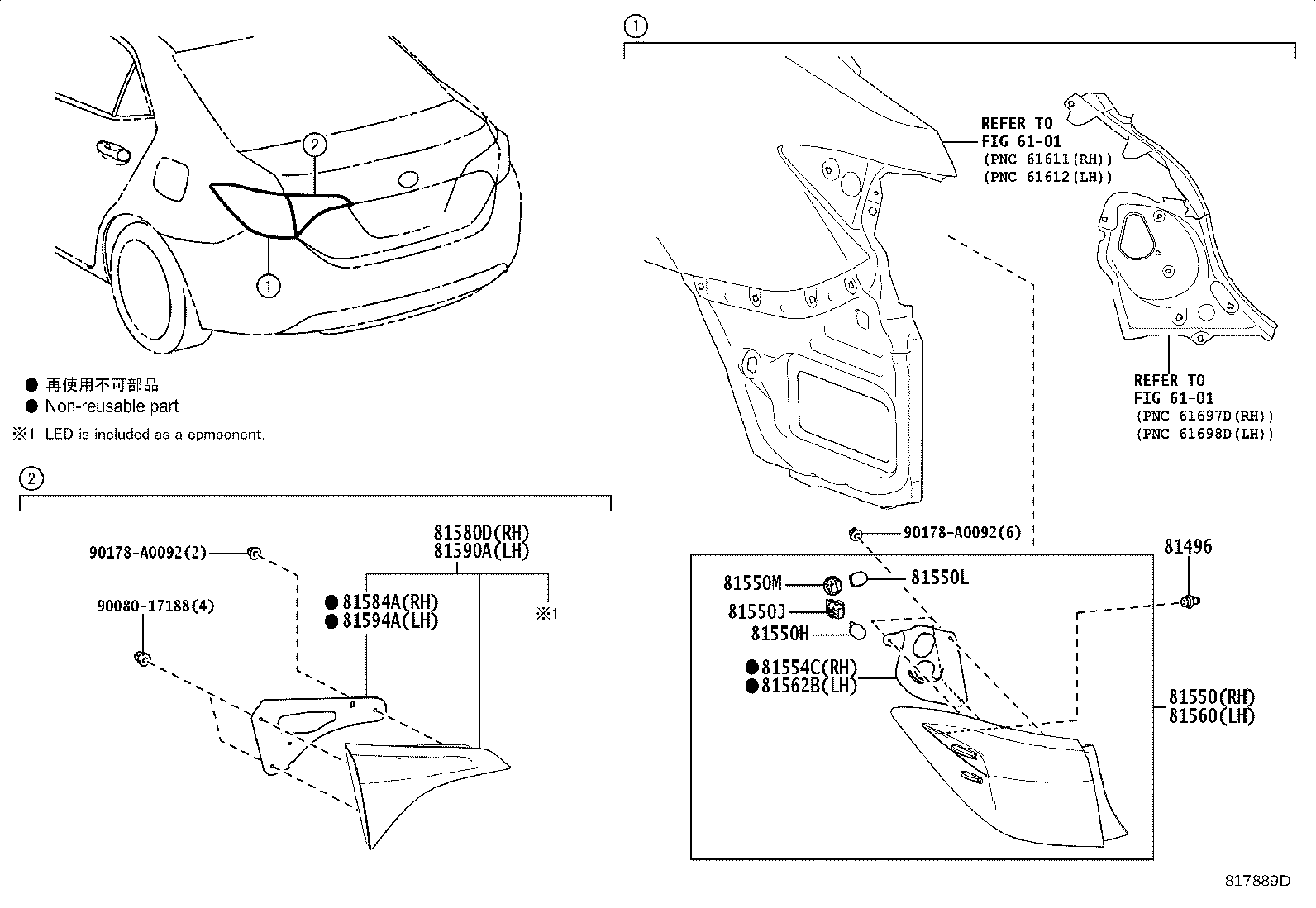

Rear Combination Lamp
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550J | Socket, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550M | Socket, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81554C | Packing, Rear Combination Lamp Body, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81562B | Packing, Rear Combination Lamp Body, LH |
| 81580D | Lamp Assy, Rear, RH |
| 81580F | Socket Plug, Rear Lamp |
| 81584A | Gasket, Rear Lamp RH |
| 81590A | Lamp Assy, Rear, LH |
| 81594A | Gasket, Rear Lamp LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
