Toyota Corolla
2013-08 → 2019-03 · chassis ZRE172 · catalogue 152370 · General
Supported model
Data version 2019-04

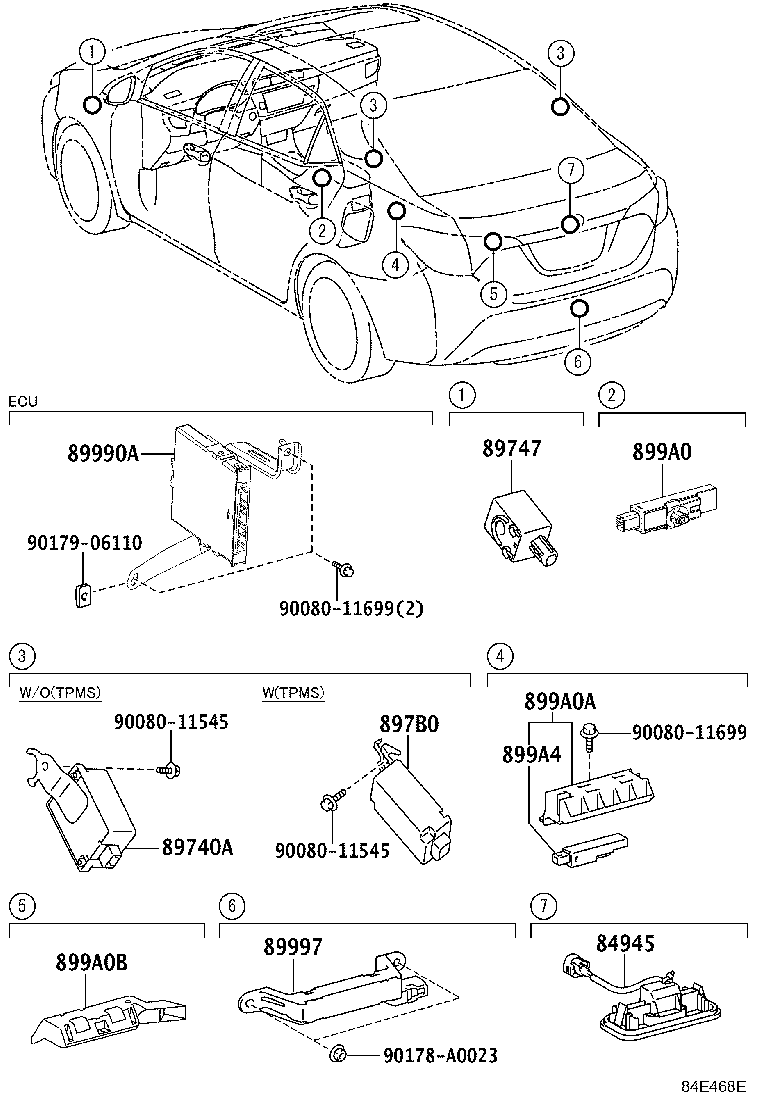

Wireless Door Lock
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84945 | Switch, Luggage Electrical Key |
| 89740A | Receiver Assy, Smart Door Control |
| 89741 | Receiver, Door Control |
| 89747 | Buzzer, Wireless Door Lock |
| 897A0 | Receiver Assy,Door Control & Tire Pressure Monitoring System |
| 897B0 | Receiver Assy, Electrical Key & Tpms |
| 89990A | Computer Assy, Smart Key |
| 89997 | Antenna, Electrical Key |
| 899A0 | Antenna Assy, Indoor Electrical Key, NO.1 |
| 899A0A | Antenna Assy, Indoor Electrical Key, NO.2 |
| 899A0B | Antenna Assy, Indoor Electrical Key, NO.3 |
| 899A4 | Case, Indoor Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
