Heating & Air Conditioning - Water Piping

5 part groups · 5 illustrations

Illustrations

Figure 87D692A

87D692A 2013-08 → 2016-08

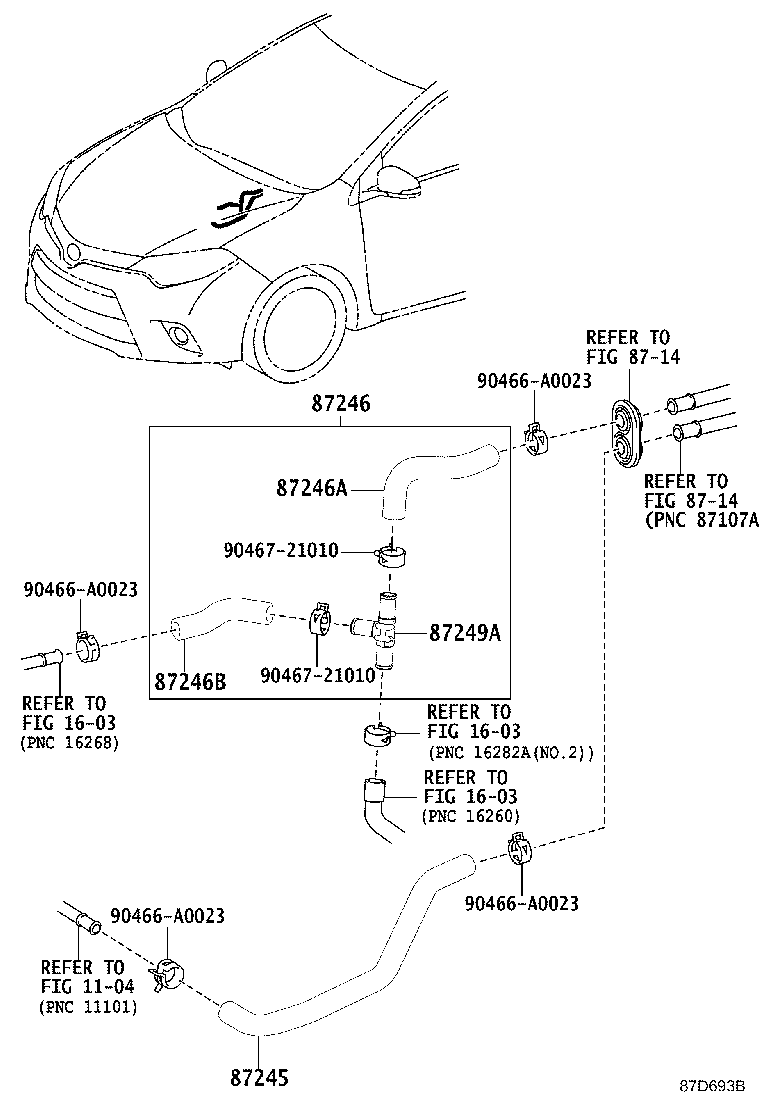

Figure 87D693B

87D693B 2014-04 → 2016-08

Figure 87D693B

87D693B 2014-08 → 2016-08

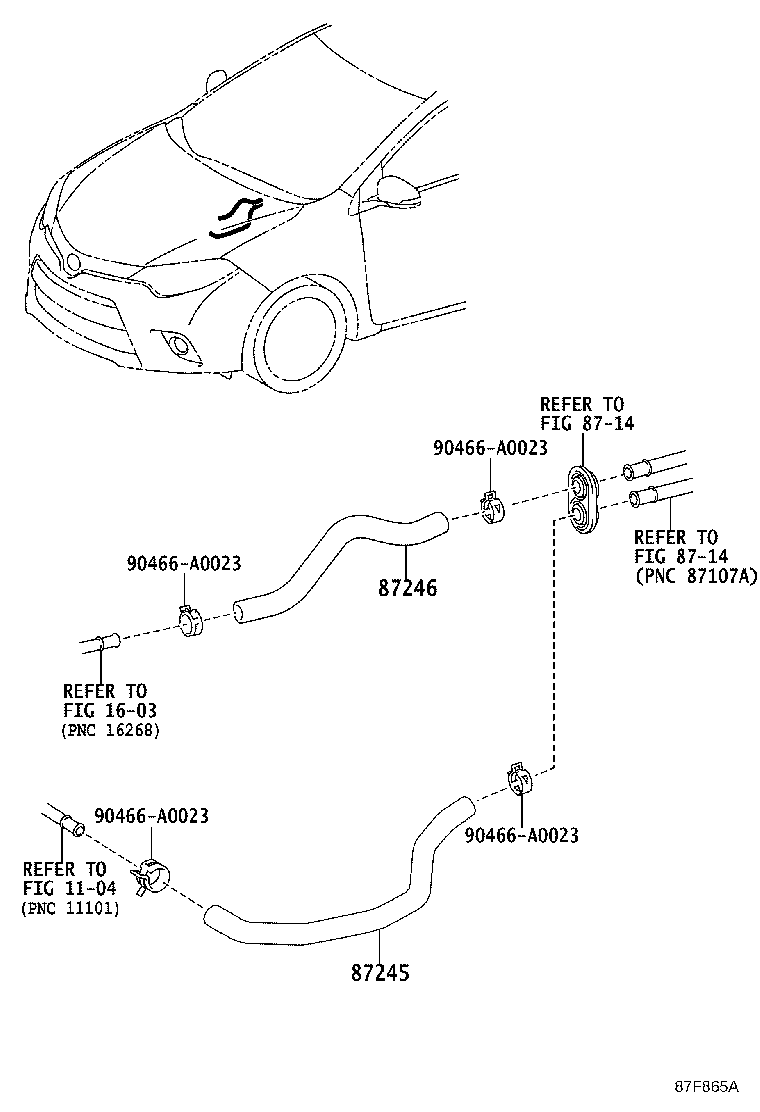

Figure 87F865A

87F865A 2016-08 → —

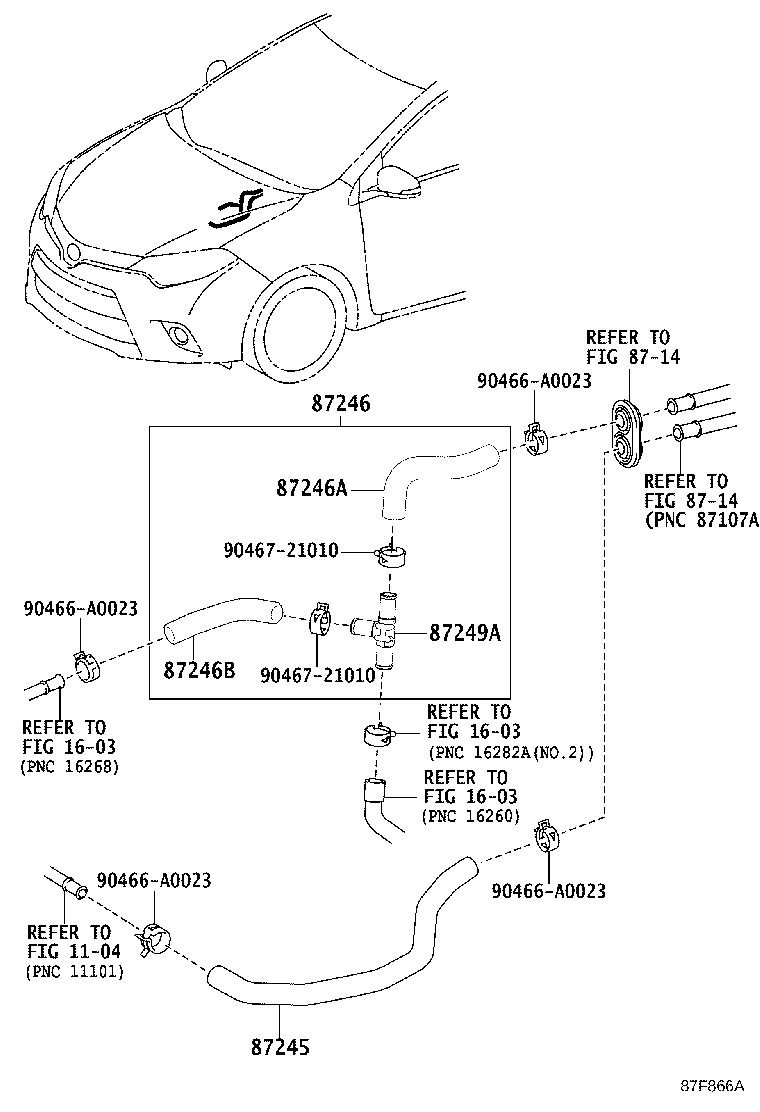

Figure 87F866A

87F866A 2016-08 → —

Part groups

PNC	Description
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87249A	Pipe, Heater Water Outlet, A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
