Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

20 part groups · 3 illustrations

Illustrations

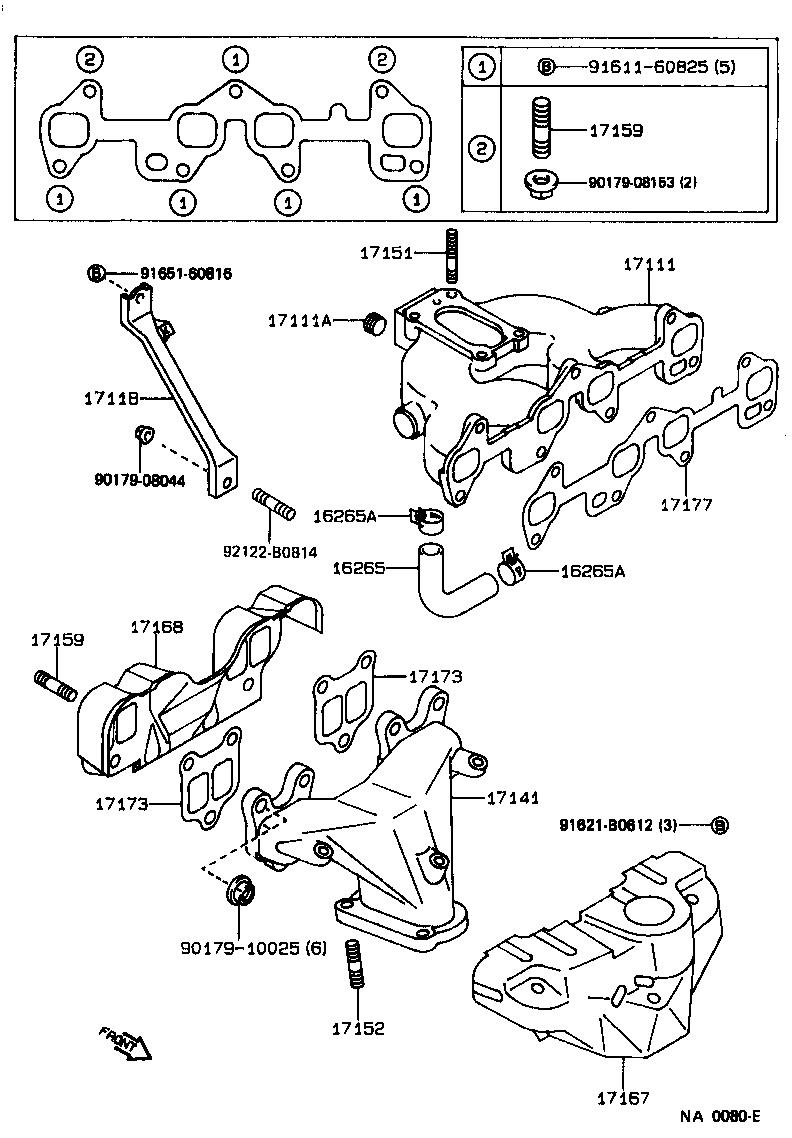

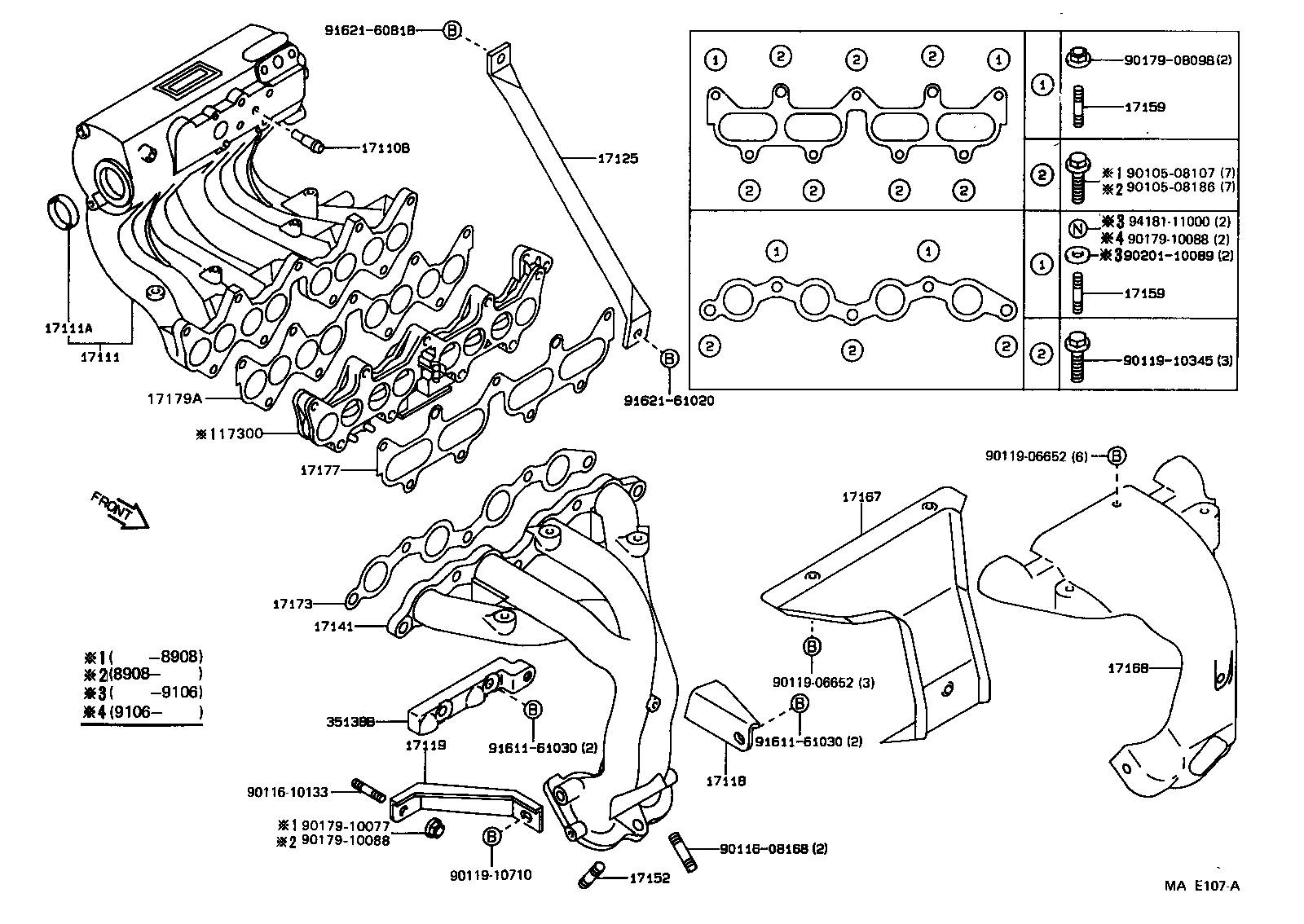

Figure MAC397D MAC397D 1987-05 → — Figure MAE107A MAE107A 1987-05 → — Figure NA0080E NA0080E 1987-05 → —

Part groups

PNCDescription
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17141 Manifold, Exhaust
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17300 Valve Assy, Intake Air Control
35138B Adapter, Stiffener Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
