Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

14 part groups · 2 illustrations

Illustrations

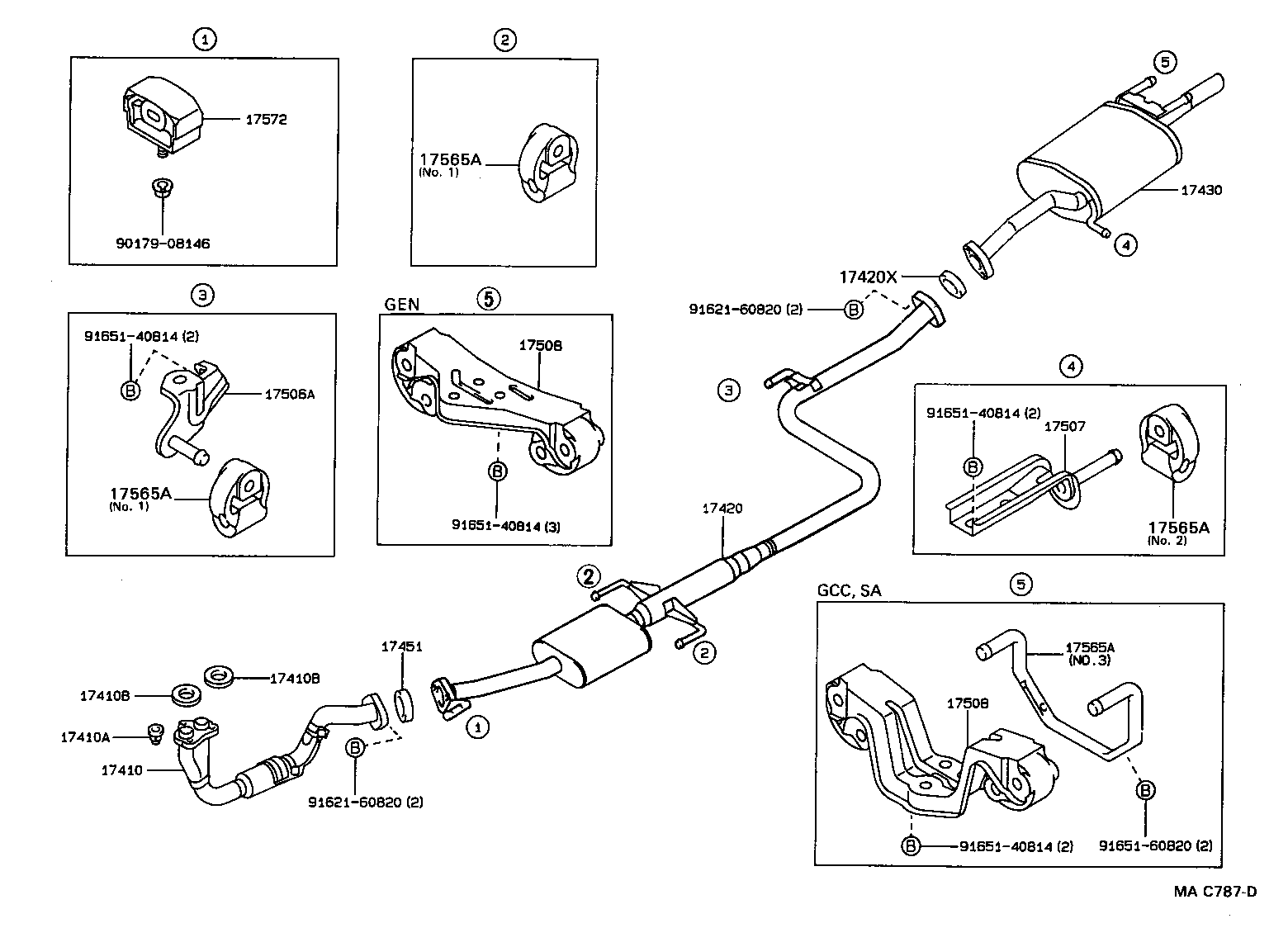

Figure MAC618B MAC618B 1987-05 → — Figure MAC787D MAC787D 1987-05 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508 Support Sub-assy, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17572 Bracket, Exhaust Pipe NO.1 Support
17572C Bracket, Exhaust Pipe Front (FOR FRONT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
