Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

25 part groups · 15 illustrations

Illustrations

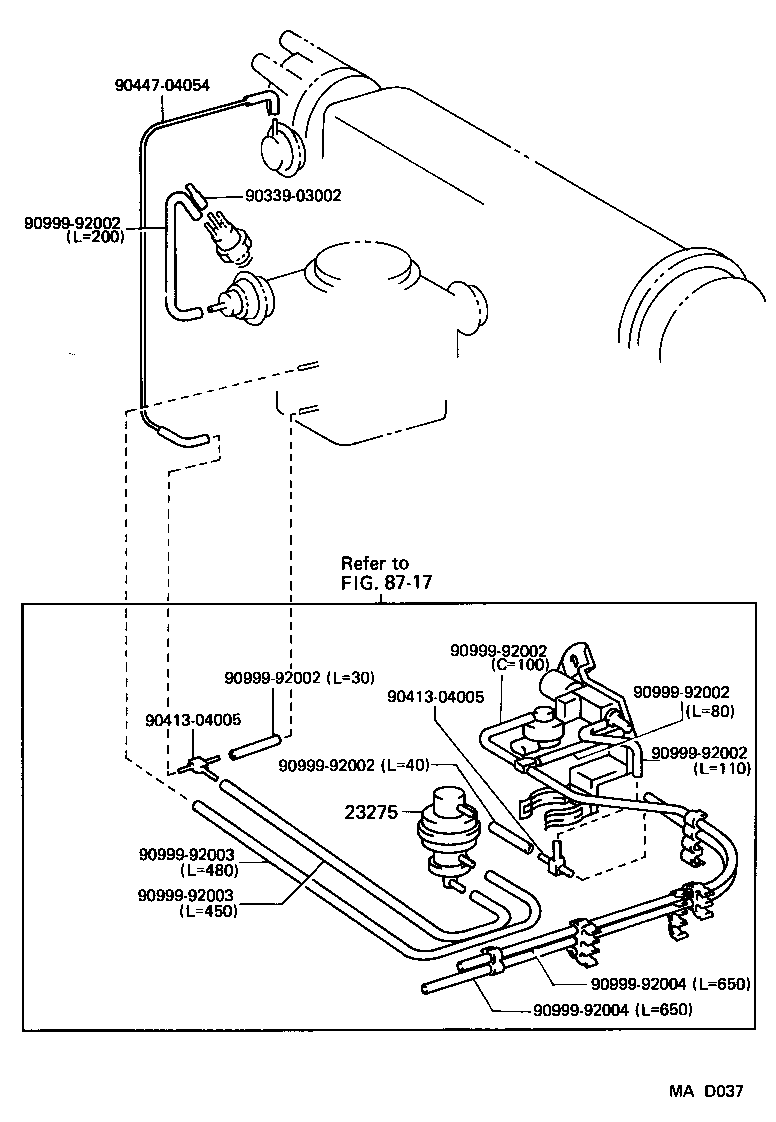

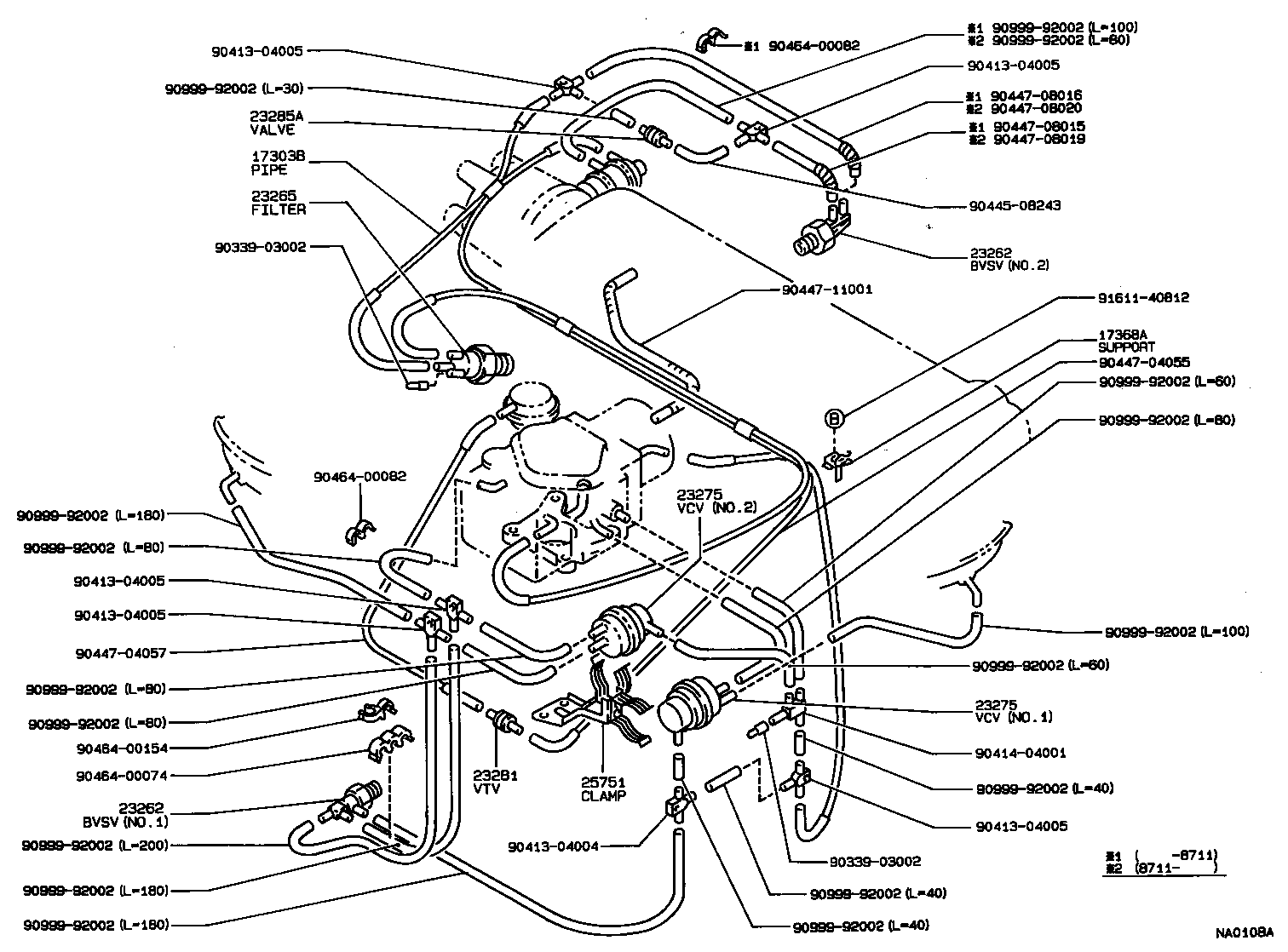

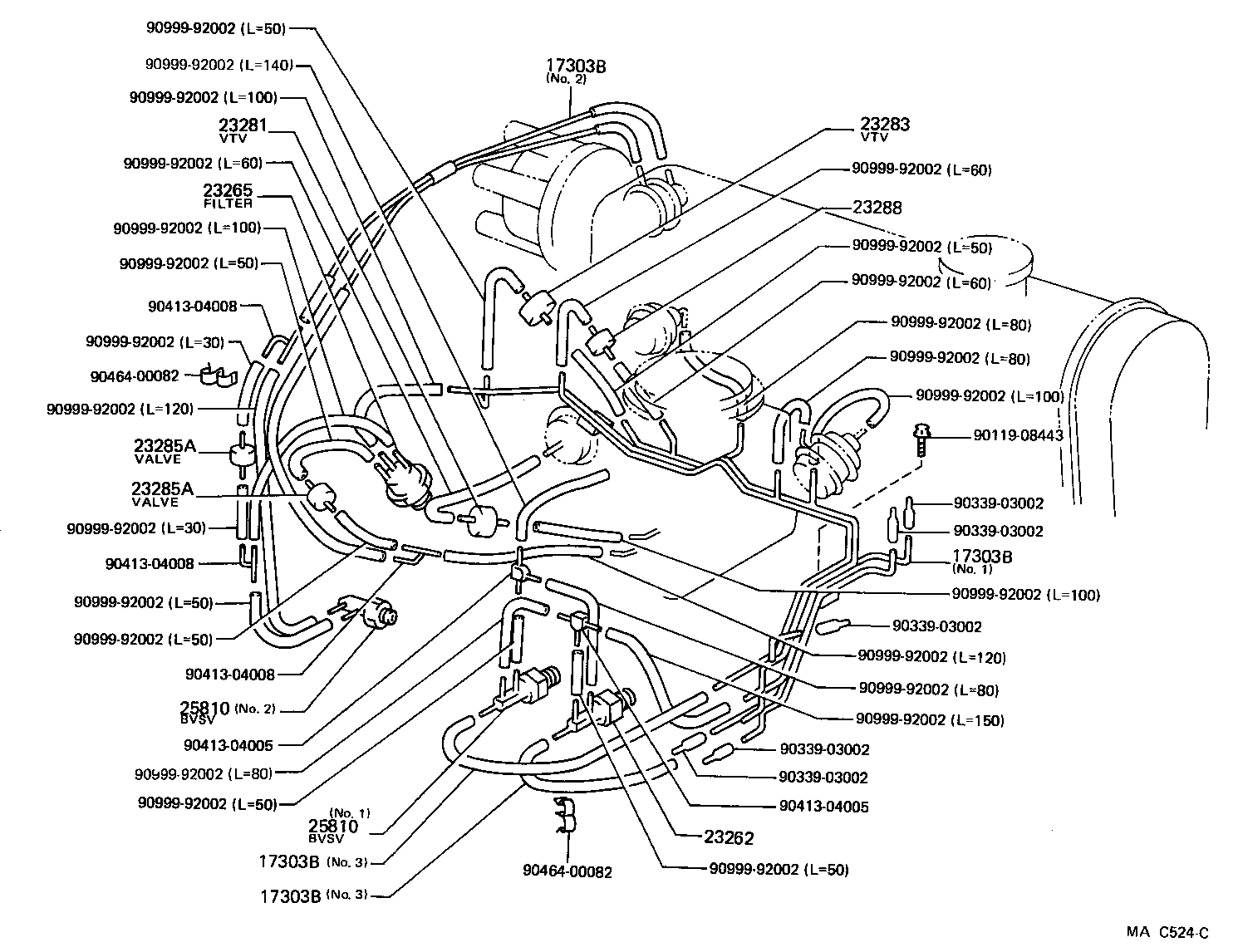

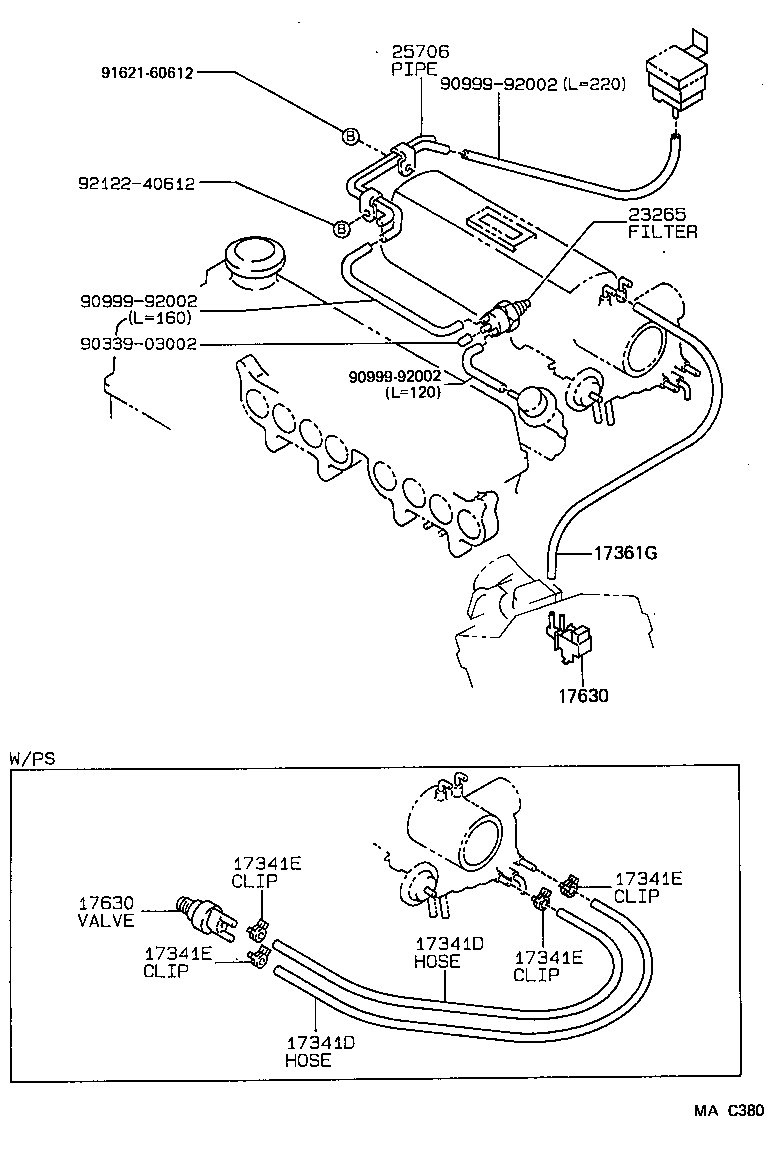

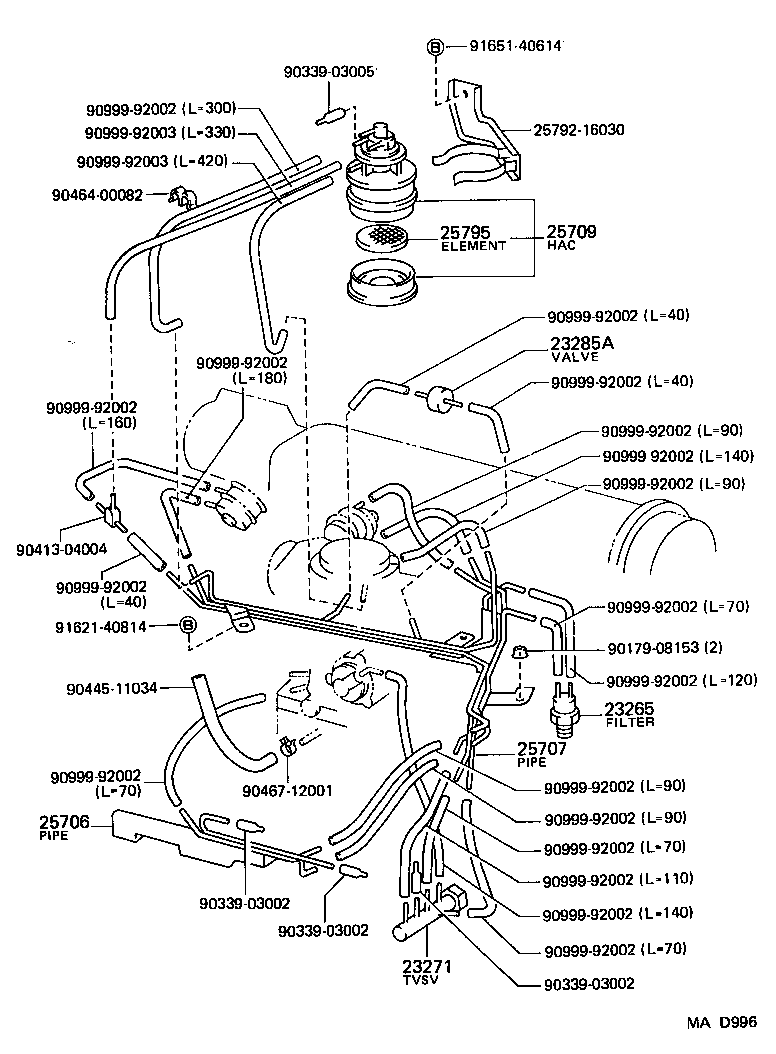

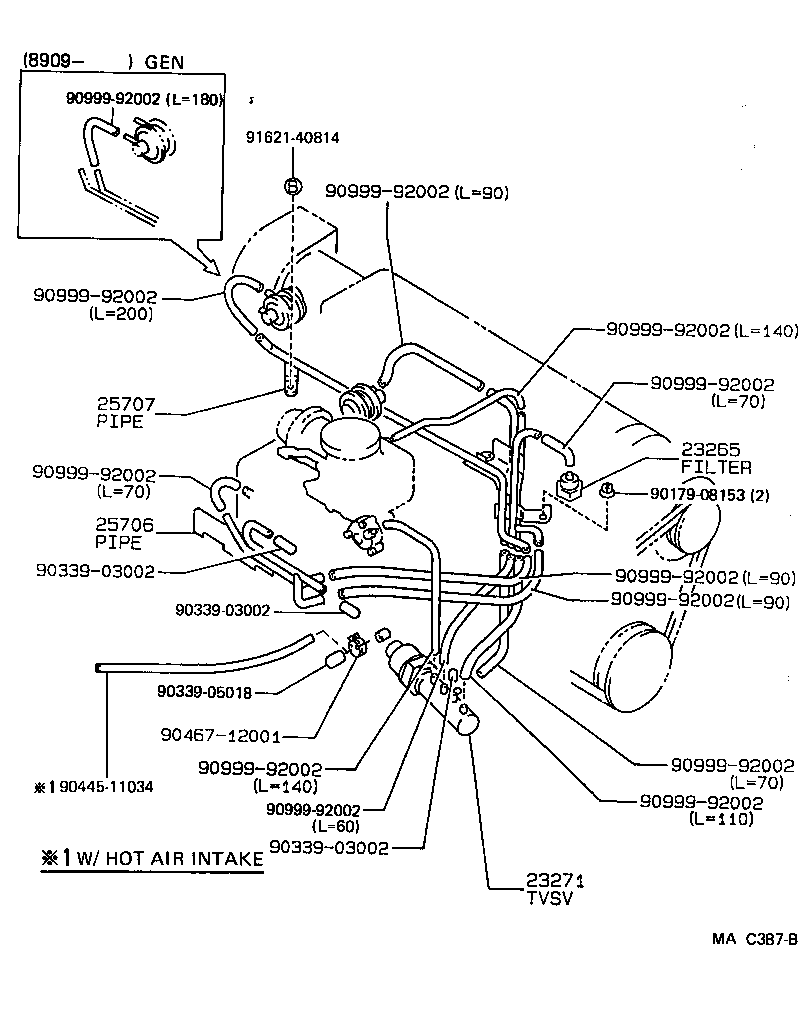

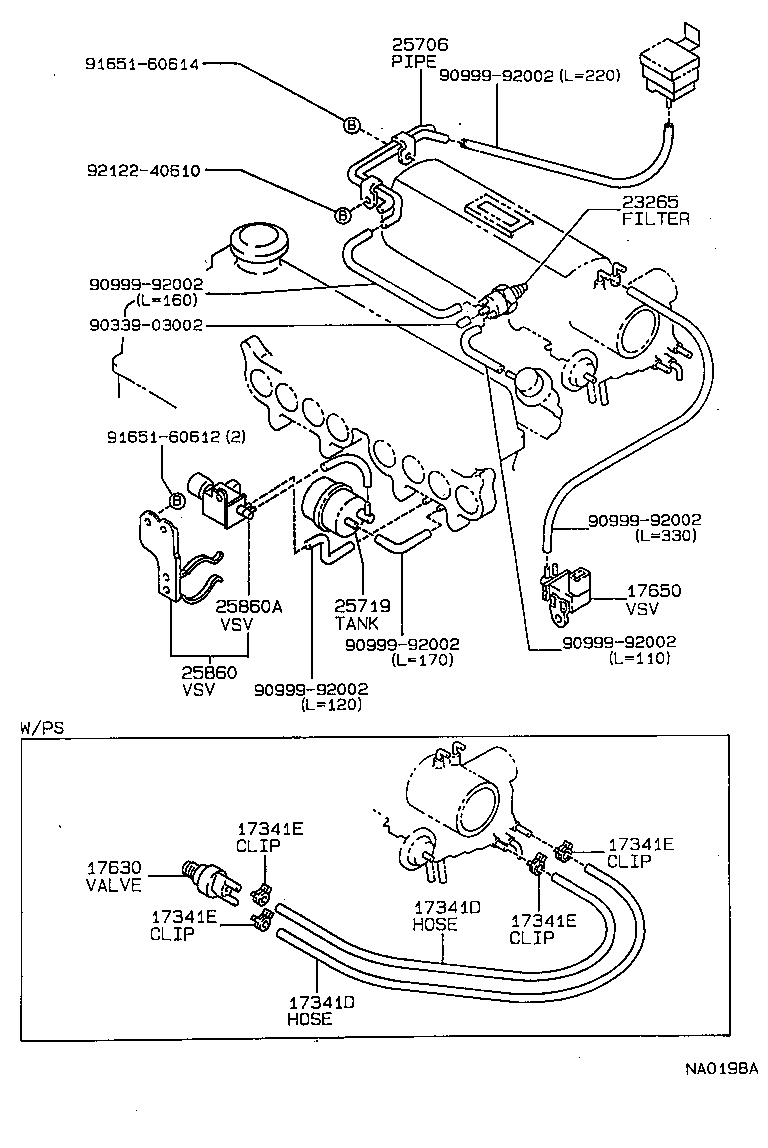

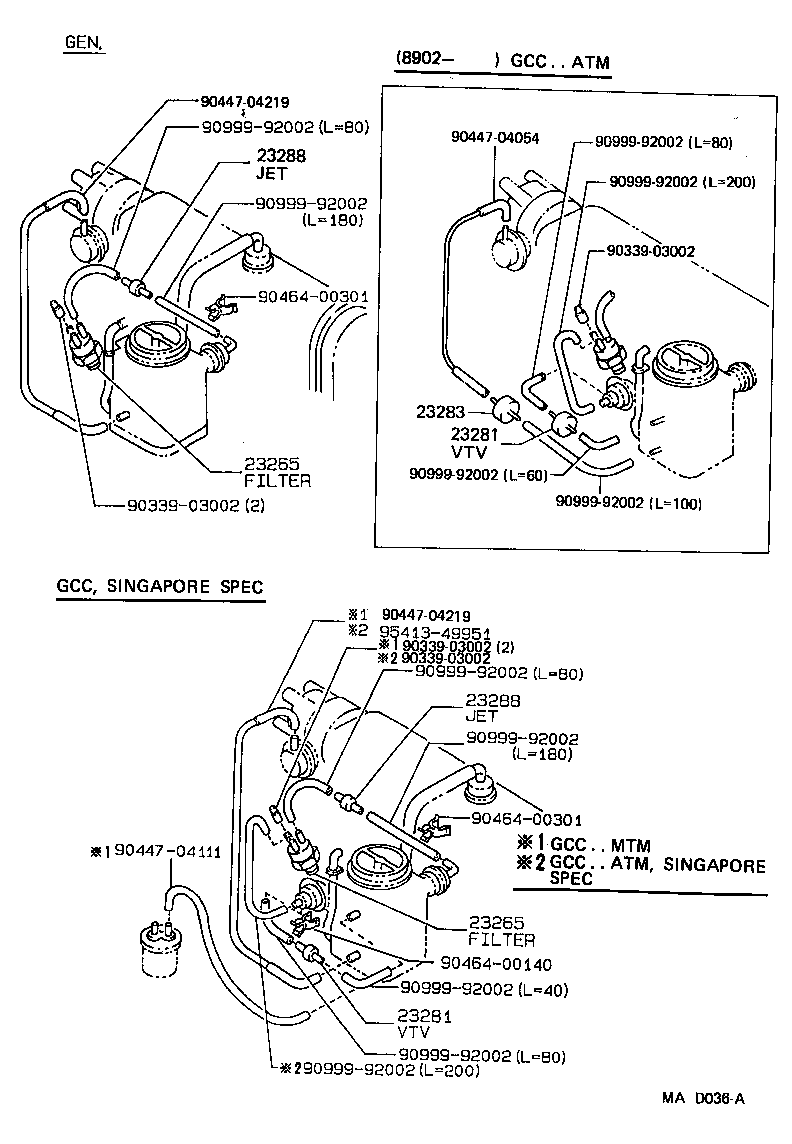

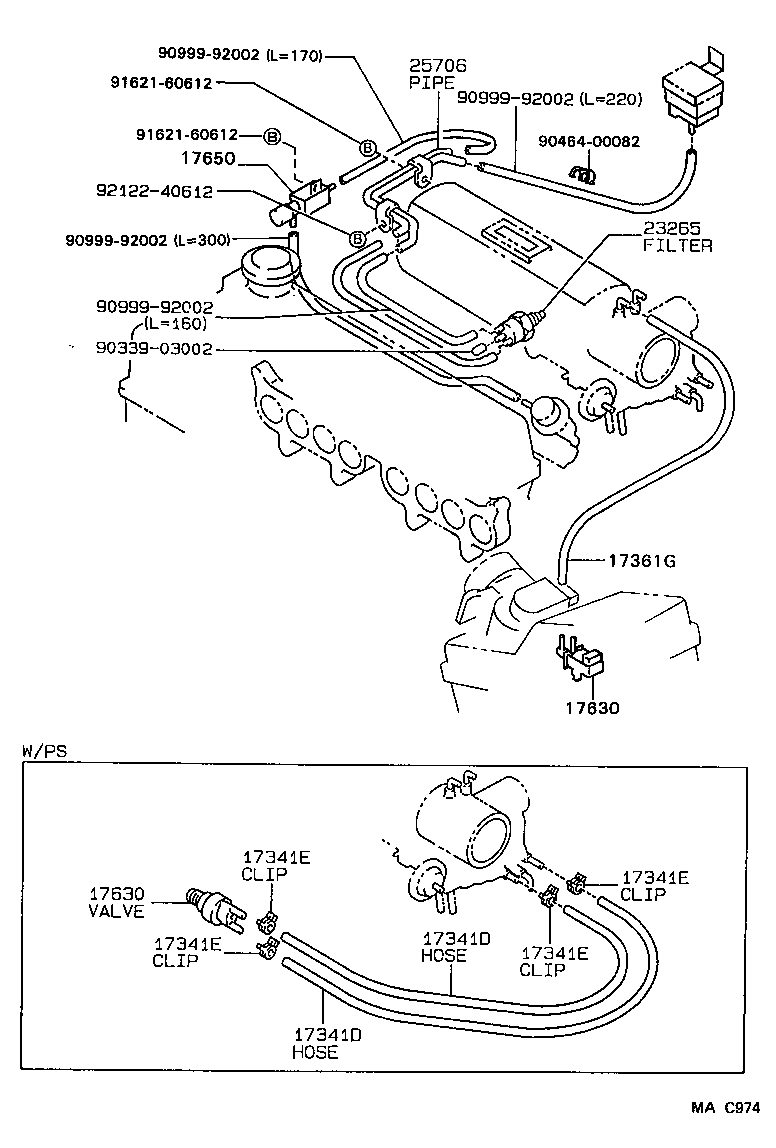

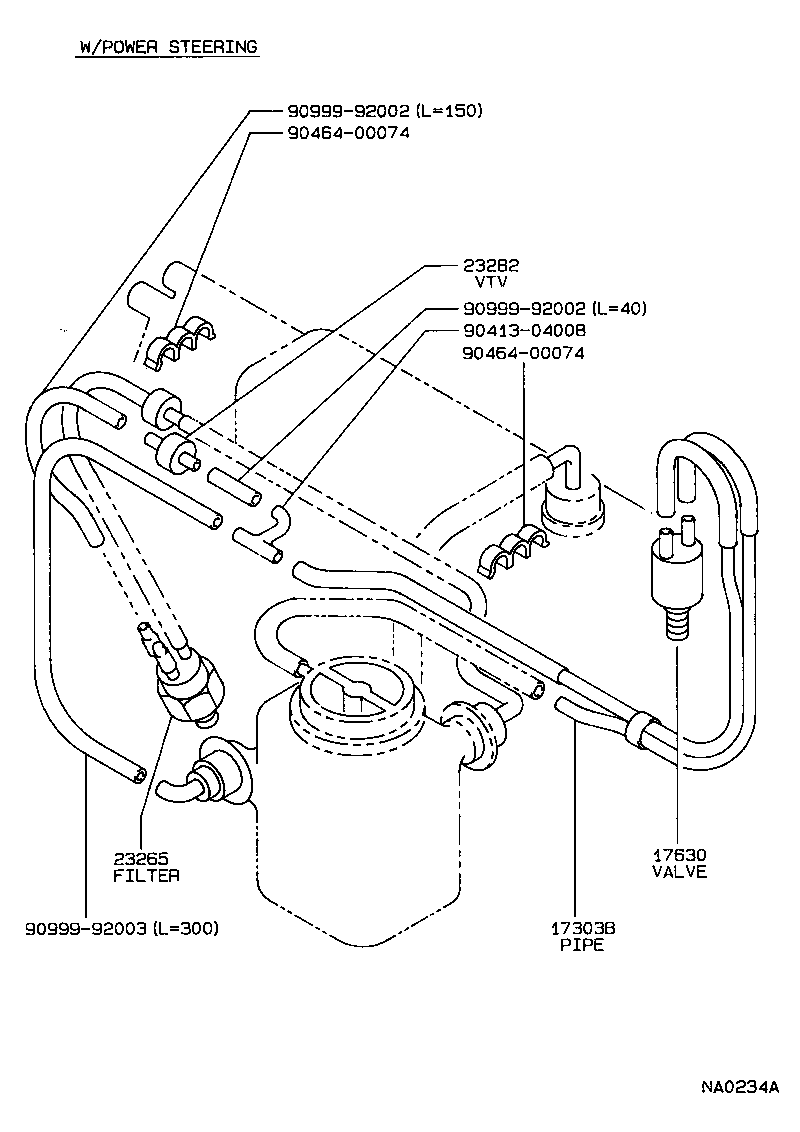

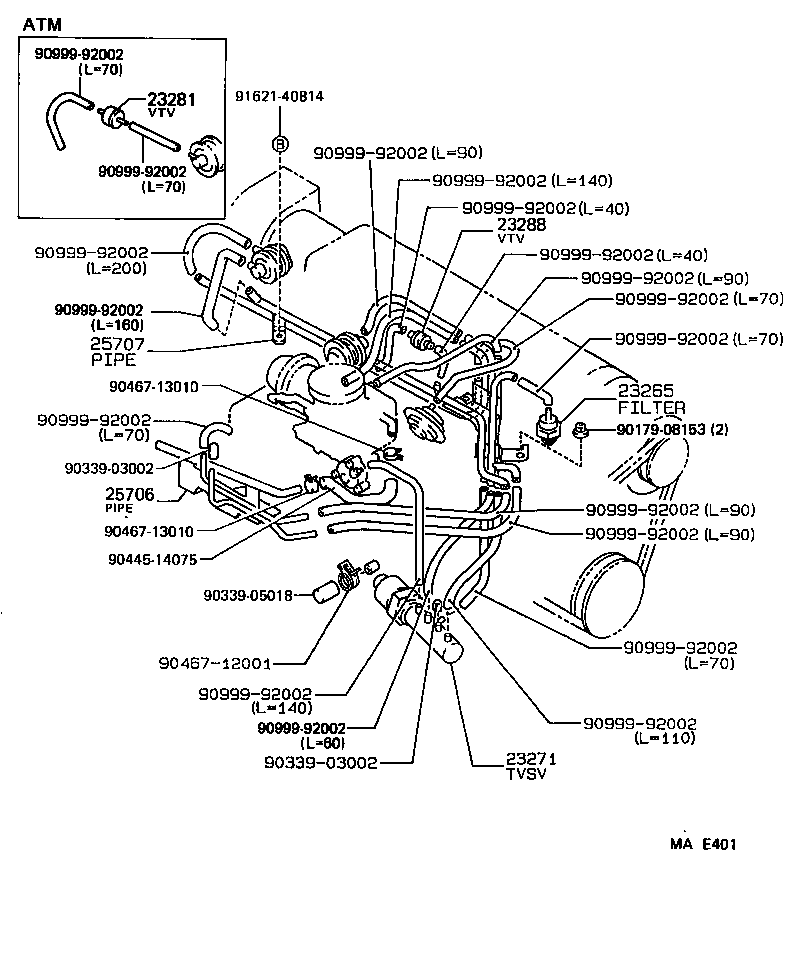

Figure MA9504B MA9504B 1987-05 → — Figure MAC387B MAC387B 1987-05 → 1989-08 Figure MAC387B MAC387B 1989-08 → 1989-10 Figure MAC387B MAC387B 1989-10 → — Figure MAE401 MAE401 1989-08 → — Figure MAD996 MAD996 1989-10 → — Figure NA0198A NA0198A 1987-05 → 1989-08 Figure MAC974 MAC974 1989-08 → — Figure MAC380 MAC380 1989-08 → — Figure MA9504B MA9504B 1987-05 → — Figure MAD036A MAD036A 1987-05 → — Figure NA0234A NA0234A 1987-08 → — Figure NA0108A NA0108A 1987-08 → 1989-08 Figure MAC524C MAC524C 1989-08 → — Figure MAD037 MAD037 1989-01 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17361G Tube, Air(FOR IDLE-UP)
17368A Support, Air Tube
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25709 Valve Sub-assy, High Altitude Compensator
25719 Tank, Vacuum Surge
25751 Clamp, Vacuum Control Valve, NO.1
25795 Element, Altitude Compensator Filter
25810 Valve Assy, Bimetal
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
