Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

6 part groups · 4 illustrations

Illustrations

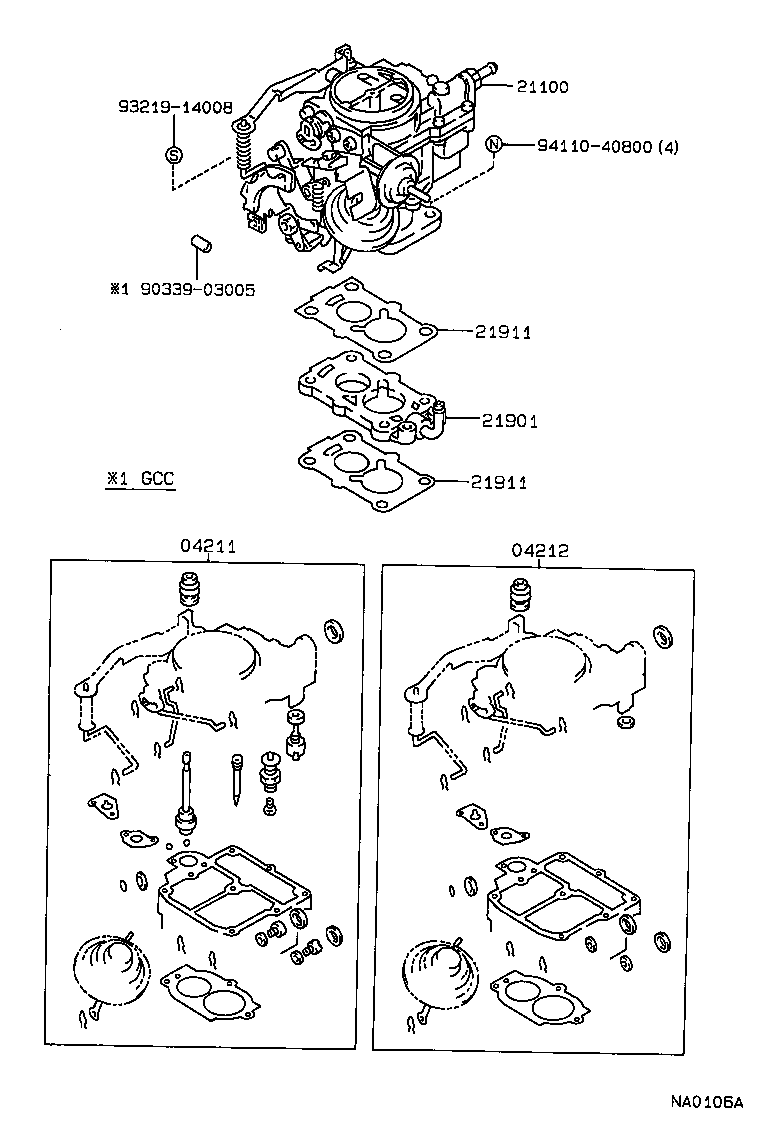

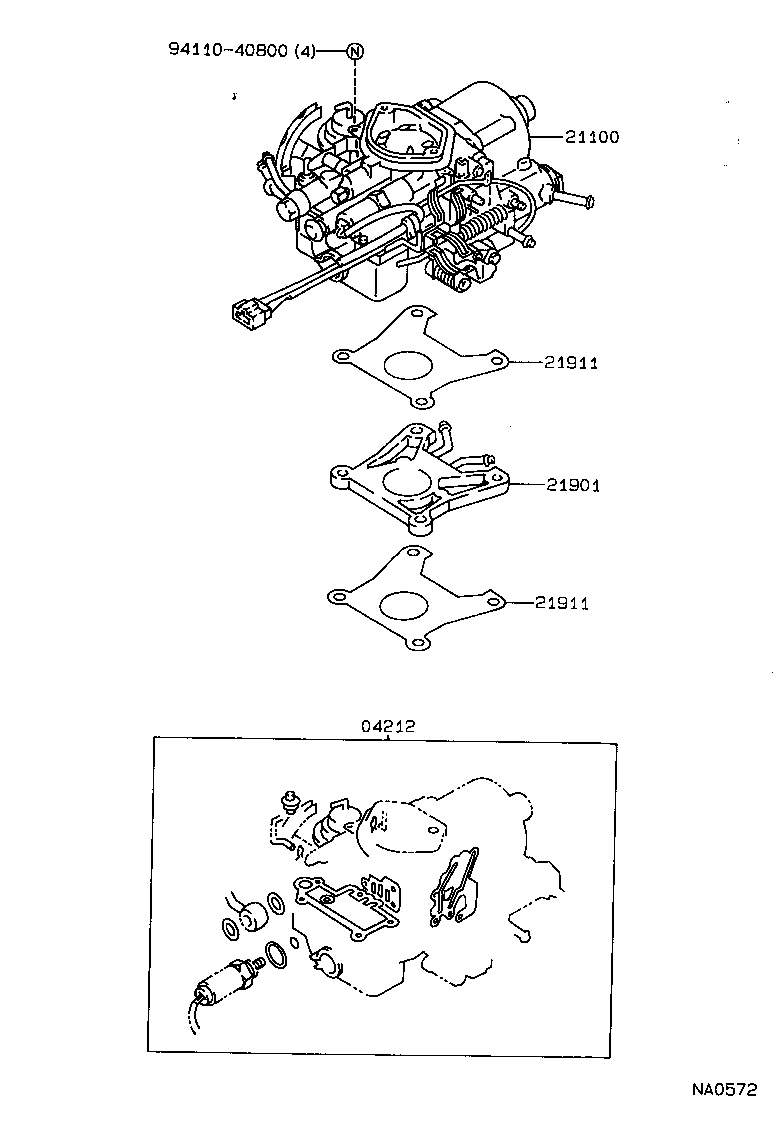

Figure NA0162C NA0162C 1987-05 → — Figure NA0106A NA0106A 1987-05 → — Figure NA0572 NA0572 1987-05 → 1989-08 Figure MAC155A MAC155A 1989-08 → —

Part groups

PNCDescription
04211 Carburetor Kit
04212 Gasket Kit, Carburetor
21100 Carburetor Assy
21901 Insulator Sub-assy, Carburetor Heat, NO.1
21911 Gasket, Carburetor
21916 Gasket, Carburetor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
