Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pump & Pipe

8 part groups · 3 illustrations

Illustrations

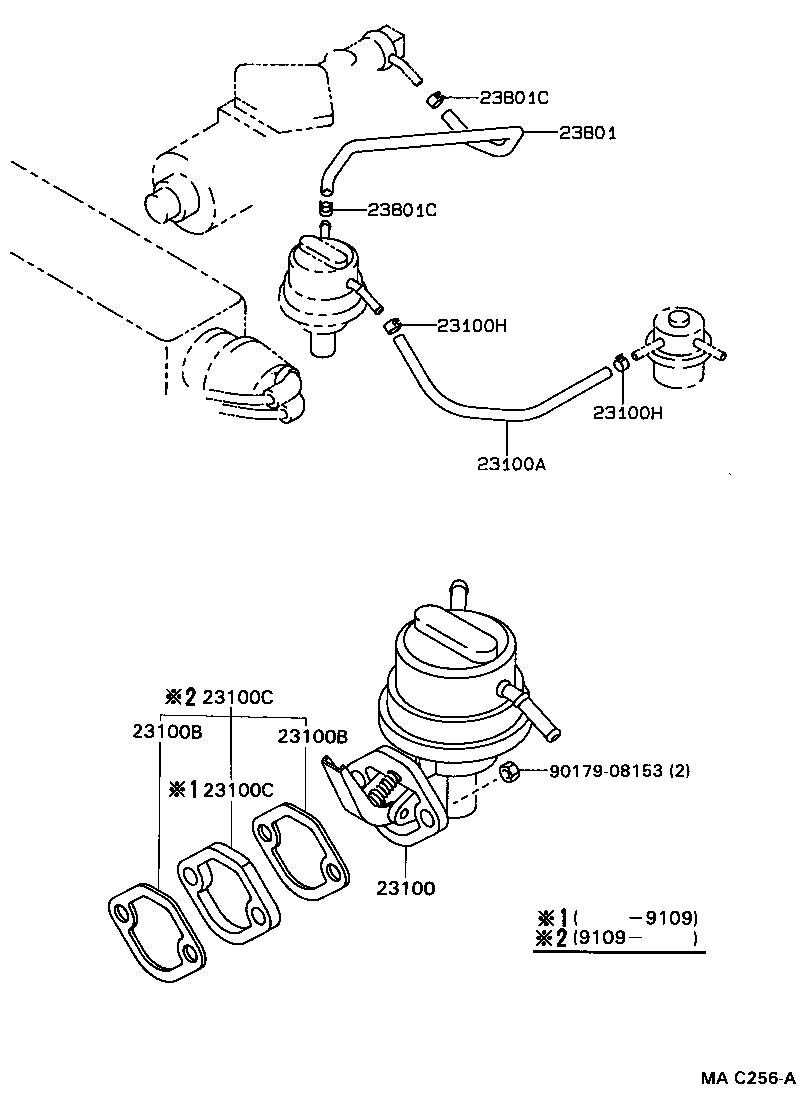

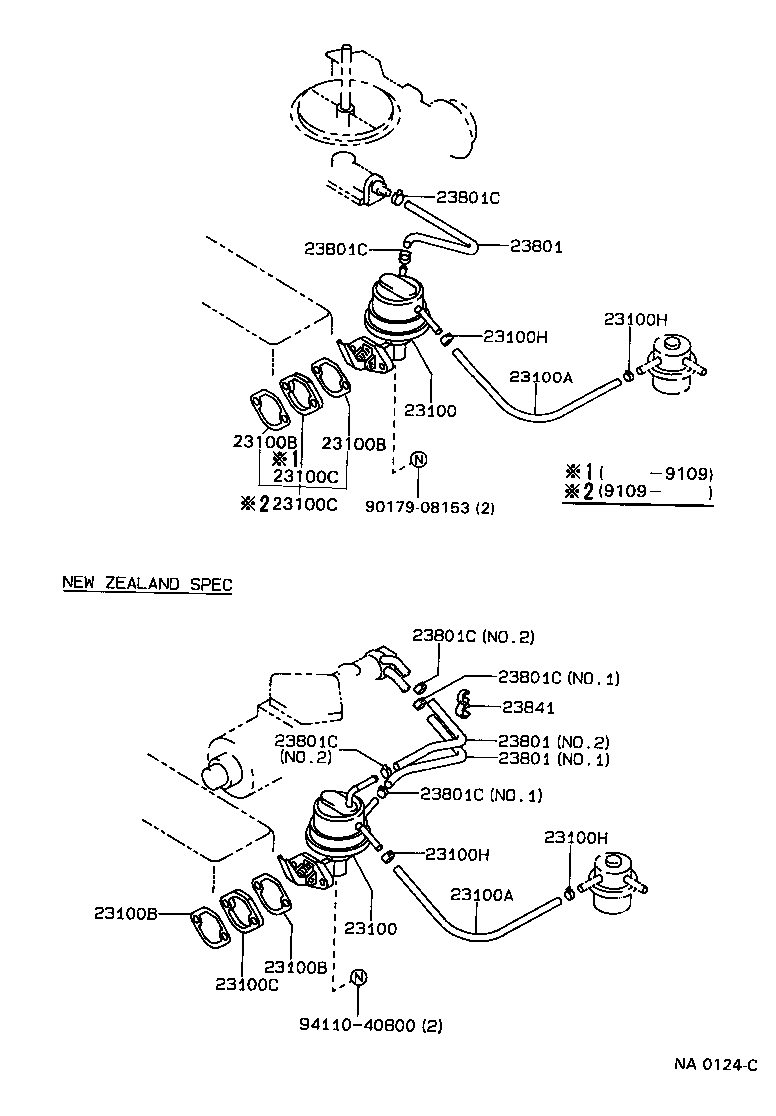

Figure NA0167 NA0167 1987-05 → — Figure NA0124C NA0124C 1987-05 → 1989-08 Figure MAC256A MAC256A 1989-08 → —

Part groups

PNCDescription
23100 Pump Assy, Fuel
23100A Hose, Fuel
23100B Gasket, Fuel Pump
23100C Insulator, Fuel Pump
23100H Clip(FOR FUEL HOSE)
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801C Clip(FOR CARBURETOR FUEL HOSE)
23841 Clamp, Fuel Pipe(HOSE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
