Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

14 part groups · 10 illustrations

Illustrations

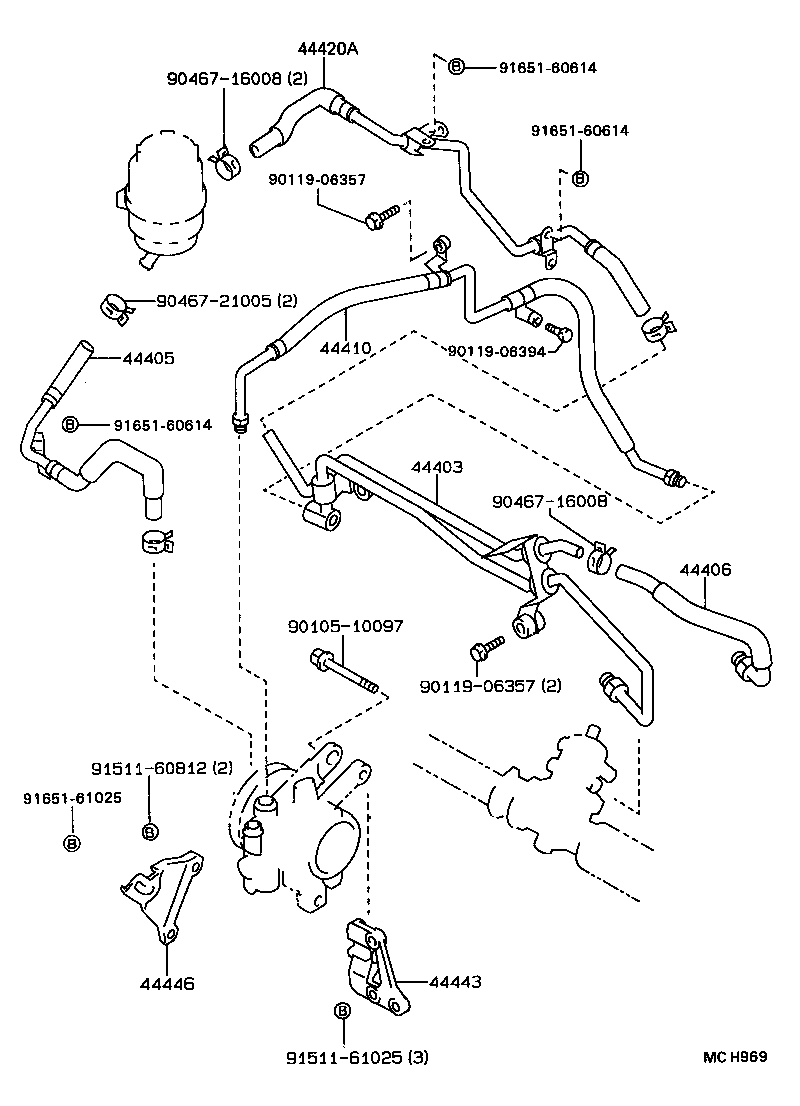

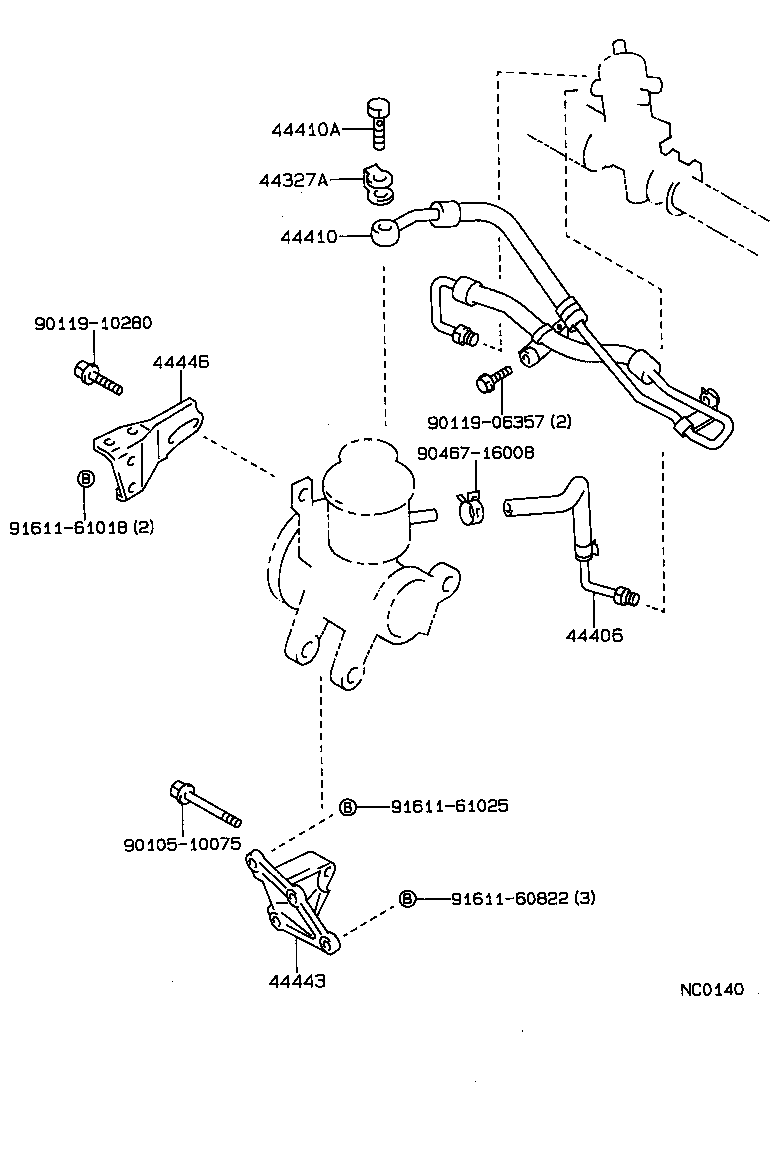

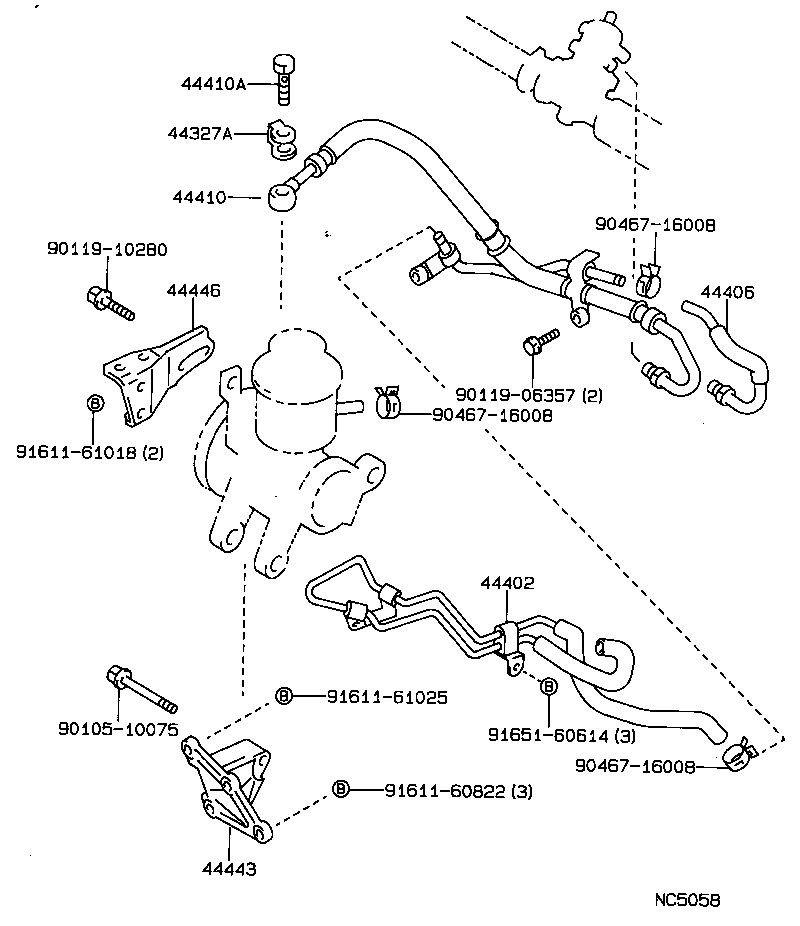

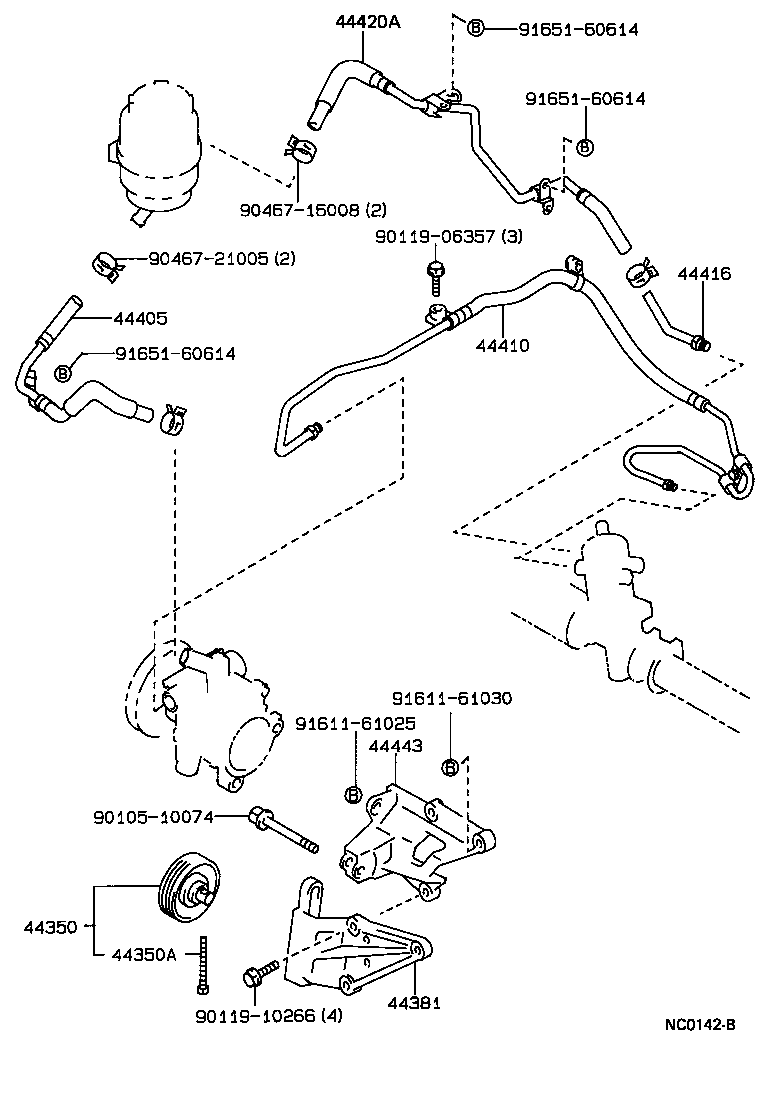

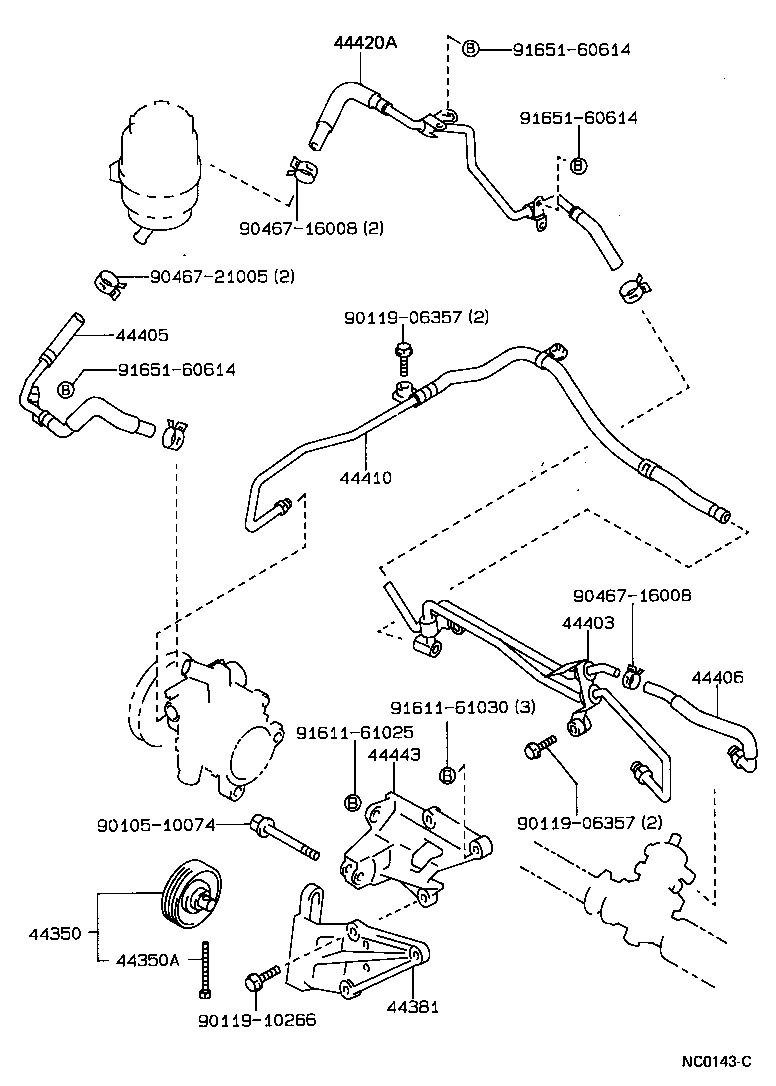

Figure MCH968 MCH968 1987-05 → — Figure MCH969 MCH969 1987-05 → — Figure NC0140 NC0140 1987-05 → 1989-08 Figure NC0140 NC0140 1989-08 → — Figure NC0141A NC0141A 1987-05 → 1989-08 Figure NC0141A NC0141A 1989-08 → — Figure NC5058 NC5058 1989-08 → — Figure NC0142B NC0142B 1987-05 → 1989-08 Figure NC0142B NC0142B 1989-08 → — Figure NC0143C NC0143C 1987-05 → 1989-08

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44350 Pulley Assy, Power Steering Idle
44350A Bolt(FOR POWER STEERING IDLE PULLEY)
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44403 Tube Sub-assy, Pressure Feed, NO.1
44405 Tube Sub-assy, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420A Tube Assy, Return
44443 Bracket, Pump
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
