Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

11 part groups · 5 illustrations

Illustrations

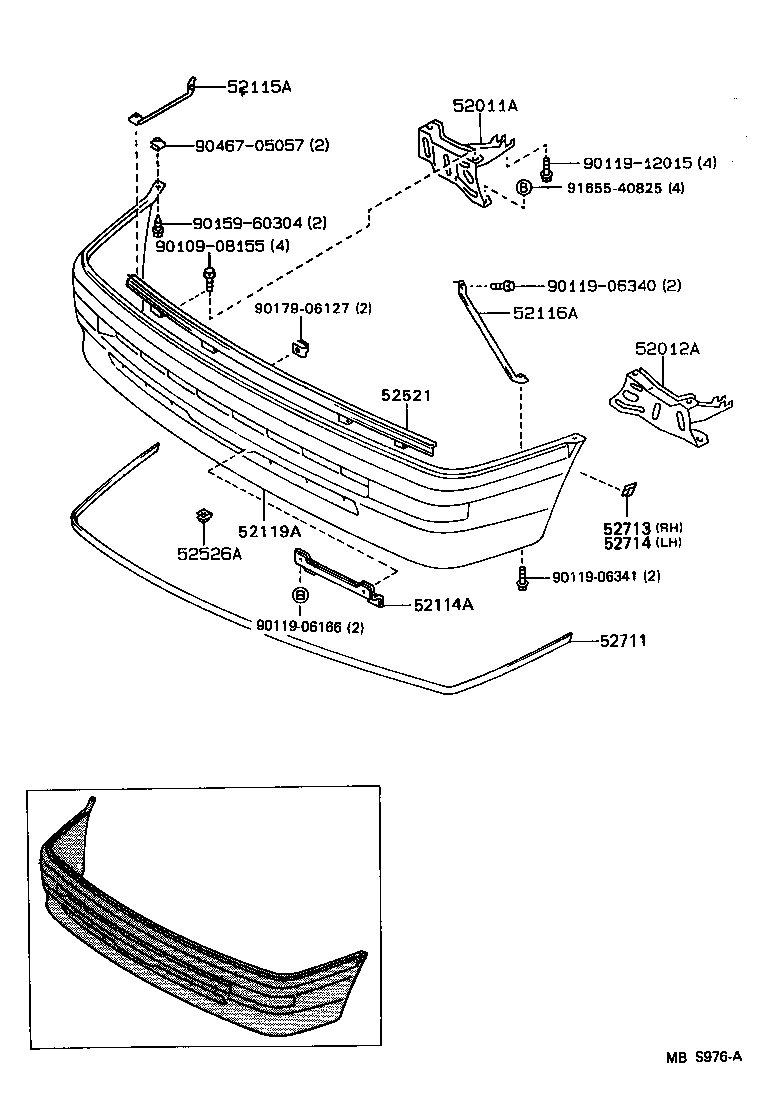

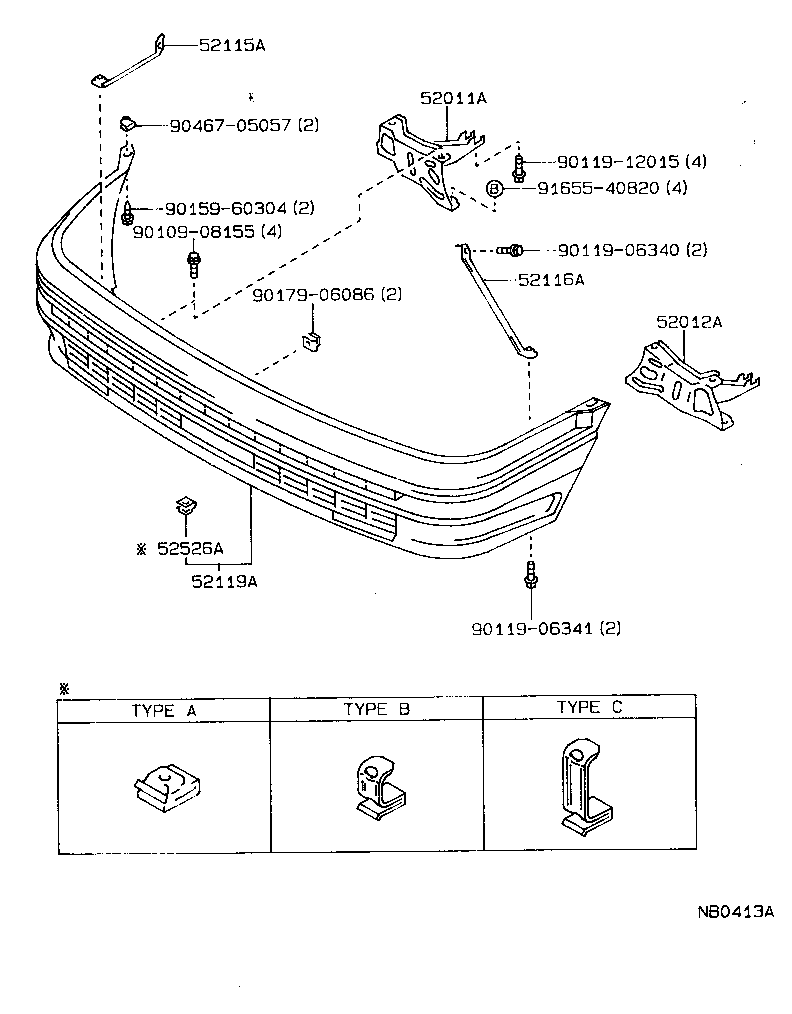

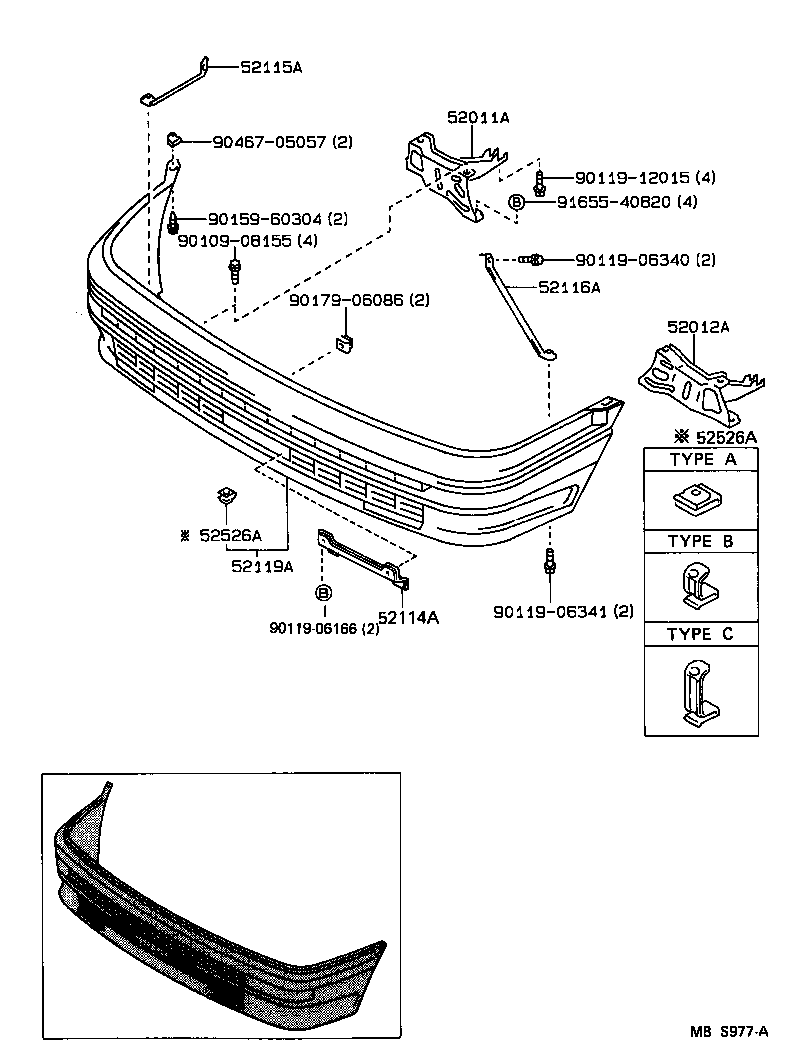

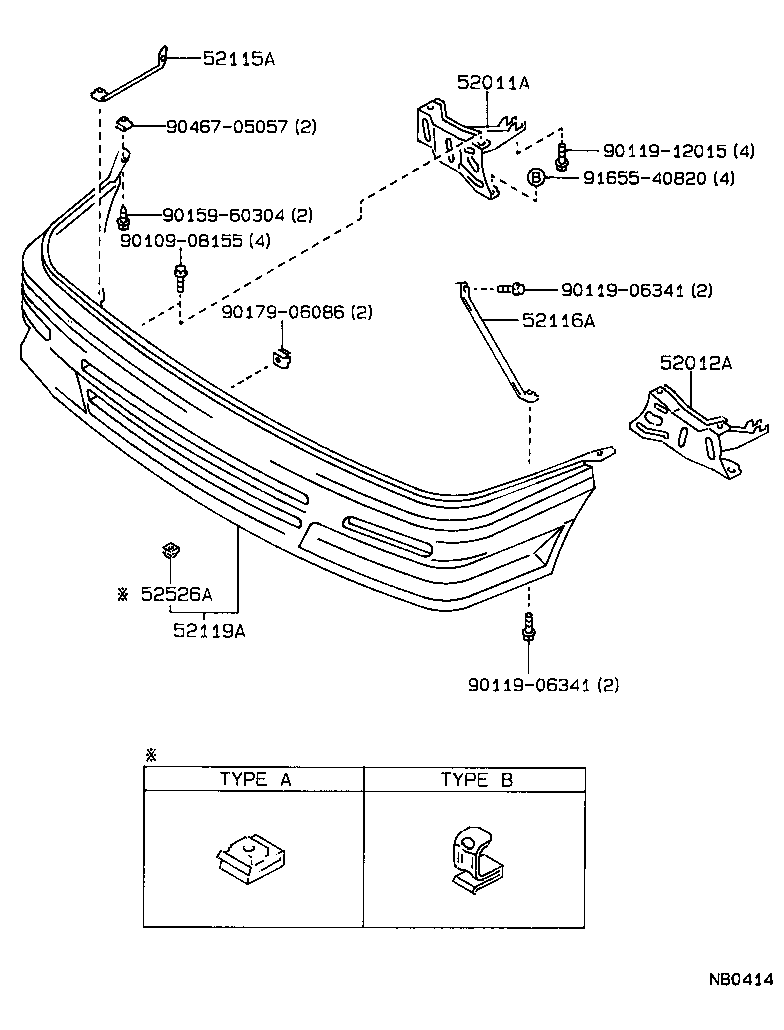

Figure NB0021B NB0021B 1987-05 → — Figure NB0413A NB0413A 1987-05 → 1989-08 Figure NB0414 NB0414 1987-05 → — Figure MBS976A MBS976A 1989-08 → — Figure MBS977A MBS977A 1989-08 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52526A Retainer, Front Bumper, Lower NO.1
52711 Moulding, Front Bumper
52713 Plug, Front Bumper Moulding
52714 Plug, Front Bumper Moulding, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
