Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

8 part groups · 3 illustrations

Illustrations

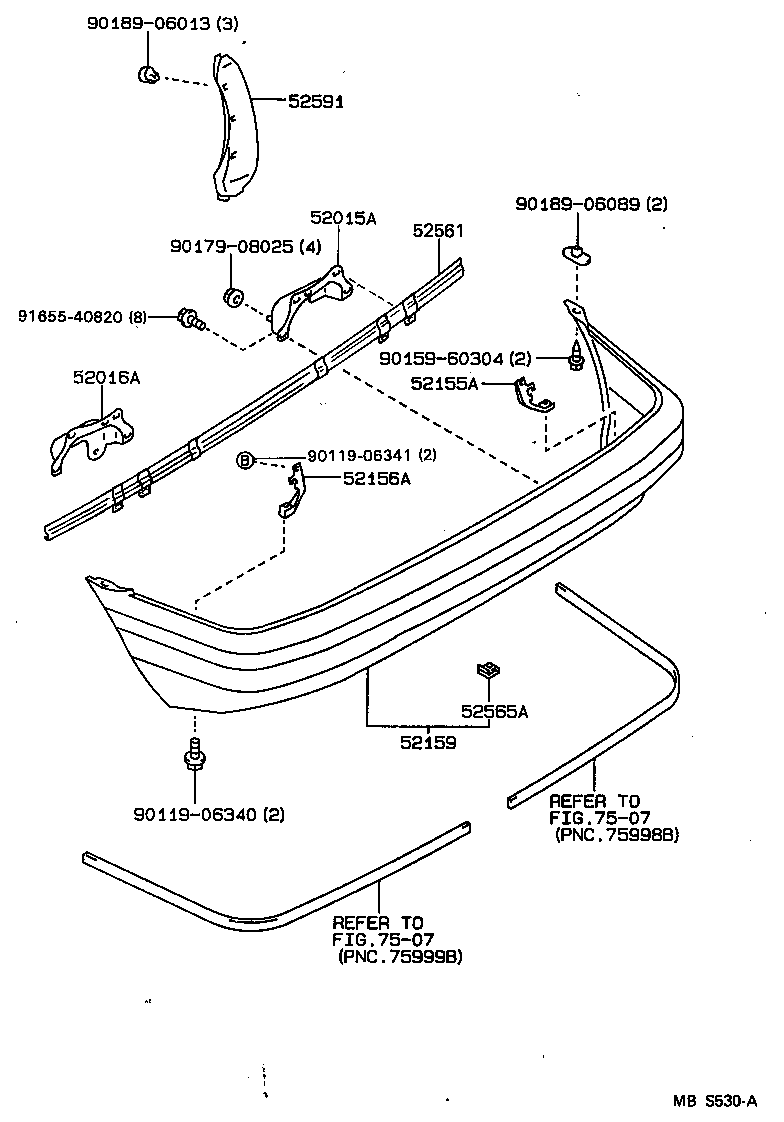

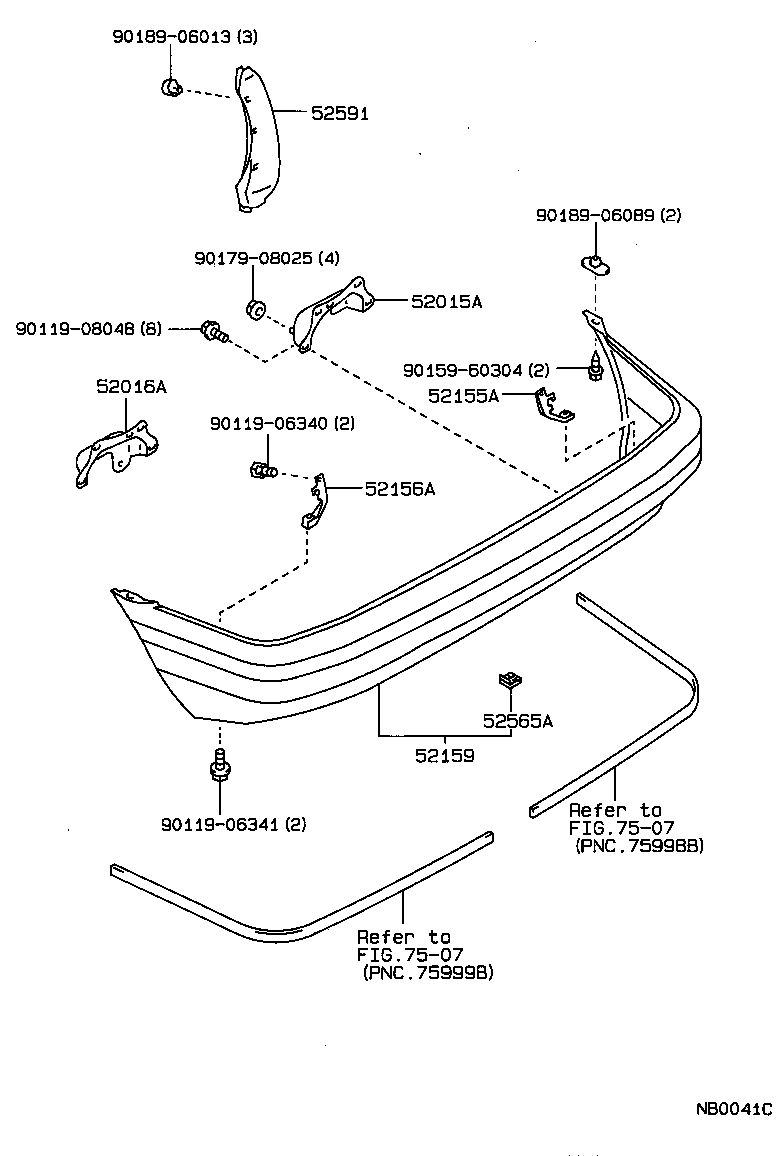

Figure NB0039B NB0039B 1987-05 → — Figure NB0041C NB0041C 1987-05 → — Figure MBS530A MBS530A 1989-08 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52591 Seal, Rear Bumper Side, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
