Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

11 part groups · 2 illustrations

Illustrations

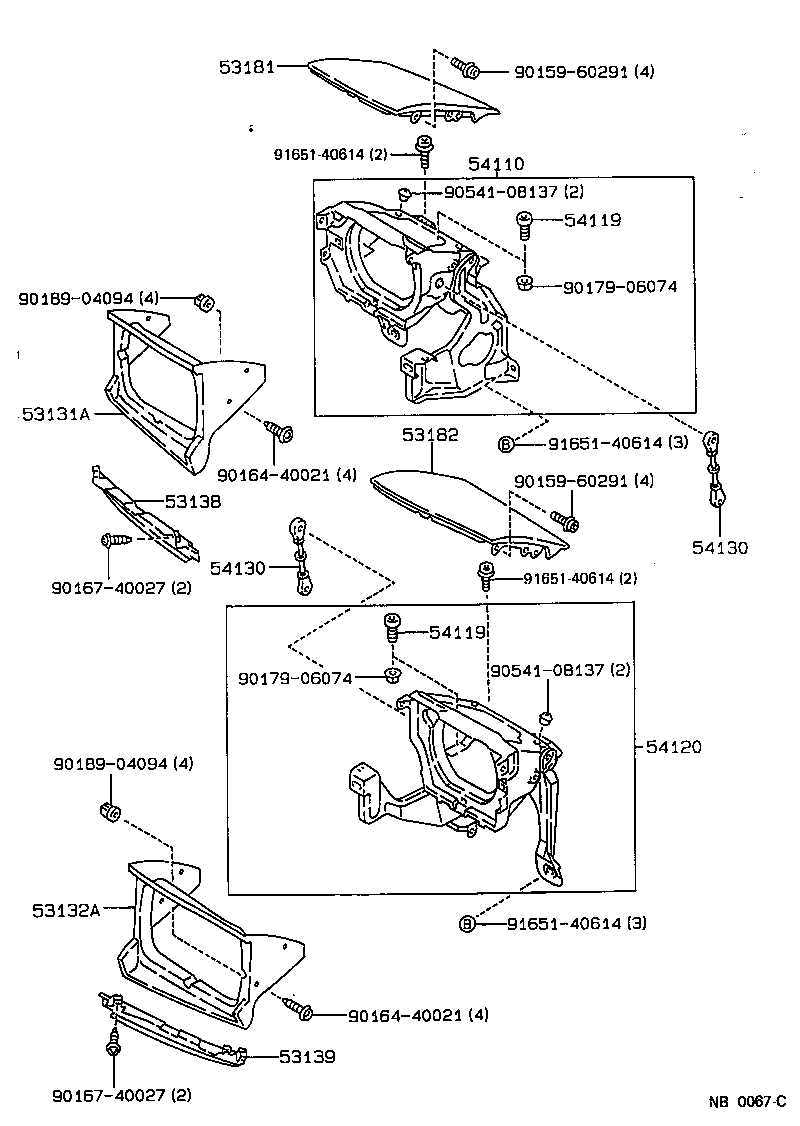

Figure NB0068D NB0068D 1987-05 → — Figure NB0067C NB0067C 1987-05 → —

Part groups

PNCDescription
53111 Grille, Radiator
53131A Door, Headlamp, RH
53132A Door, Headlamp, LH
53138 Protector, Headlamp Door, RH
53139 Protector, Headlamp Door, LH
53181 Cover, Headlamp, RH
53182 Cover, Headlamp, LH
54110 Bracket Assy, Retractable Headlamp, RH
54119 Stop, Retractable Headlamp Link
54120 Bracket Assy, Retractable Headlamp, LH
54130 Rod Assy, Retractable Headlamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
