Toyota Corolla CP/HB
1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General
Discontinued model
Data version 1994-04

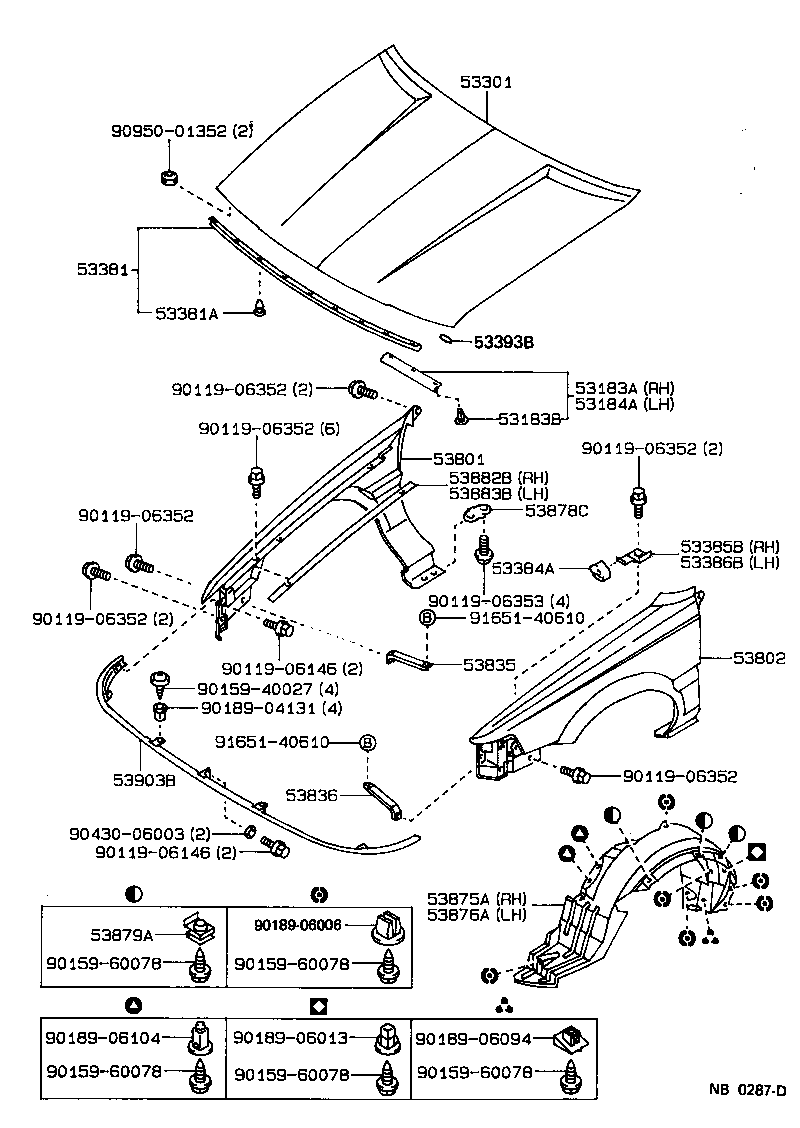

Hood & Front Fender
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53183A | Seal, Headlamp Cover, RH |
| 53183B | Clip(FOR HEADLAMP COVER SEAL) |
| 53184A | Seal, Headlamp Cover, LH |
| 53301 | Hood Sub-assy |
| 53301B | Cushion, Hood Bumper |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53384A | Bumper, Fender TO Hood |
| 53385B | Bracket, Fender TO Hood Bumper, RH |
| 53386B | Bracket, Fender TO Hood Bumper, LH |
| 53393B | Protector, Hood, Front |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53835 | Brace, Front Fender TO Extension, RH |
| 53836 | Brace, Front Fender TO Extension, LH |
| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
| 53878C | Spacer, Front Fender |
| 53879A | Retainer, Front Fender Liner |
| 53882B | Seal, Front Fender, RH |
| 53883B | Seal, Front Fender, LH |
| 53903B | Panel Sub-assy, Front End |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
