Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

10 part groups · 2 illustrations

Illustrations

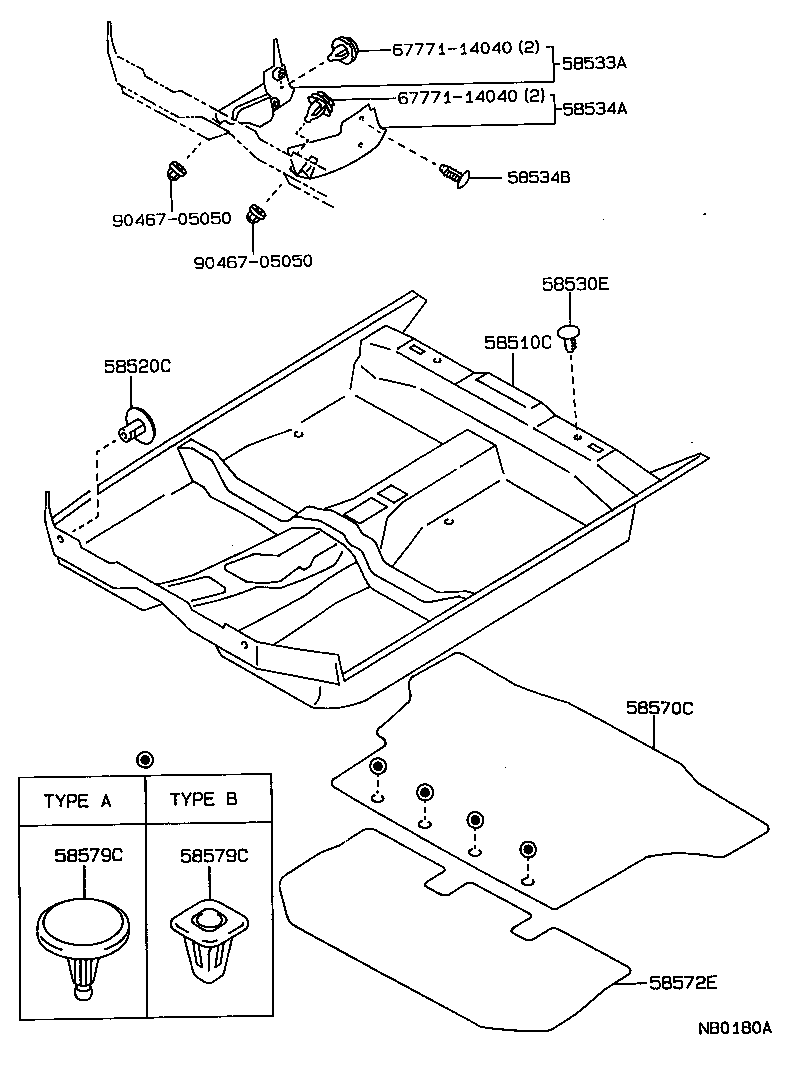

Figure MN0216 MN0216 1987-05 → — Figure NB0180A NB0180A 1987-05 → —

Part groups

PNCDescription
58510C Carpet Assy, Front Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58530E Clip(FOR FRONT FLOOR REAR CARPET)
58533A Cover, Floor Carpet, Center RH
58534A Mat, Transmission Cover
58534B Clip(FOR FLOOR CARPET CENTER COVER)
58561 Retainer, Floor Mat, NO.1
58570C Carpet Assy, Rear Floor
58572E Mat, Rear Floor, Front
58579C Clip, Rear Floor Carpet Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
