Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

15 part groups · 2 illustrations

Illustrations

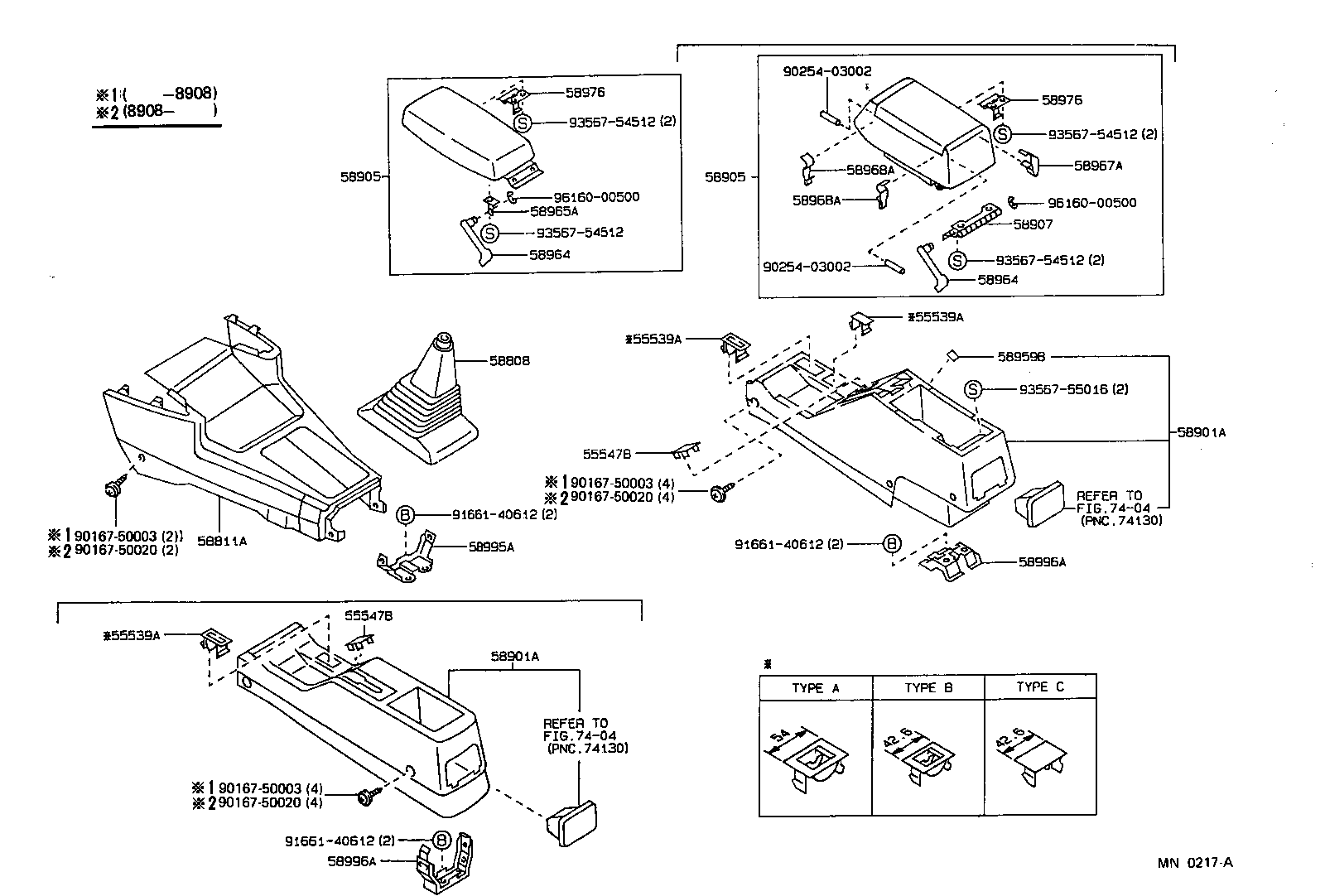

Figure MN0195 MN0195 1987-05 → — Figure MN0217A MN0217A 1987-05 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
55547B Cover, Remote Control Mirror Hole
58808 Cover Sub-assy, Shifting Hole
58811A Box, Console, Front
58901A Box Sub-assy, Console, Rear
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58967A Spring, Console Door Stopper
58968A Bracket, Console Door Stopper
58976 Striker, Console Compartment Door Lock
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
