Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04

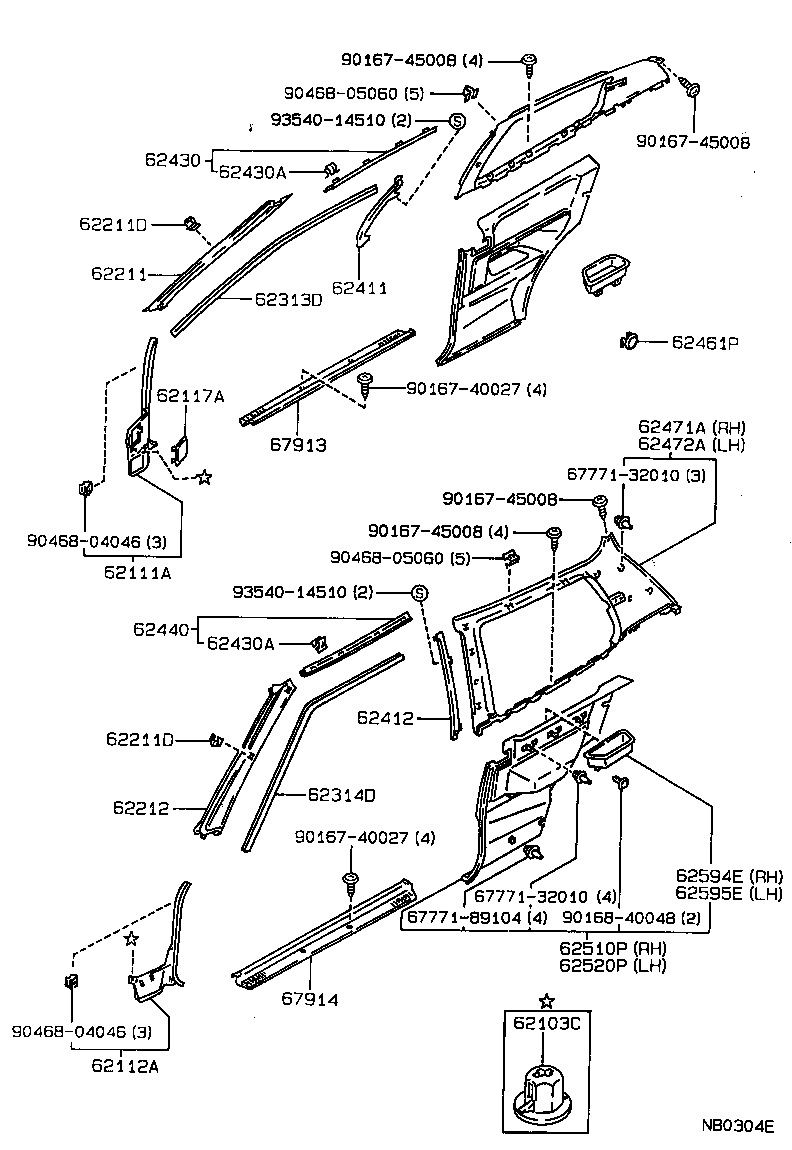

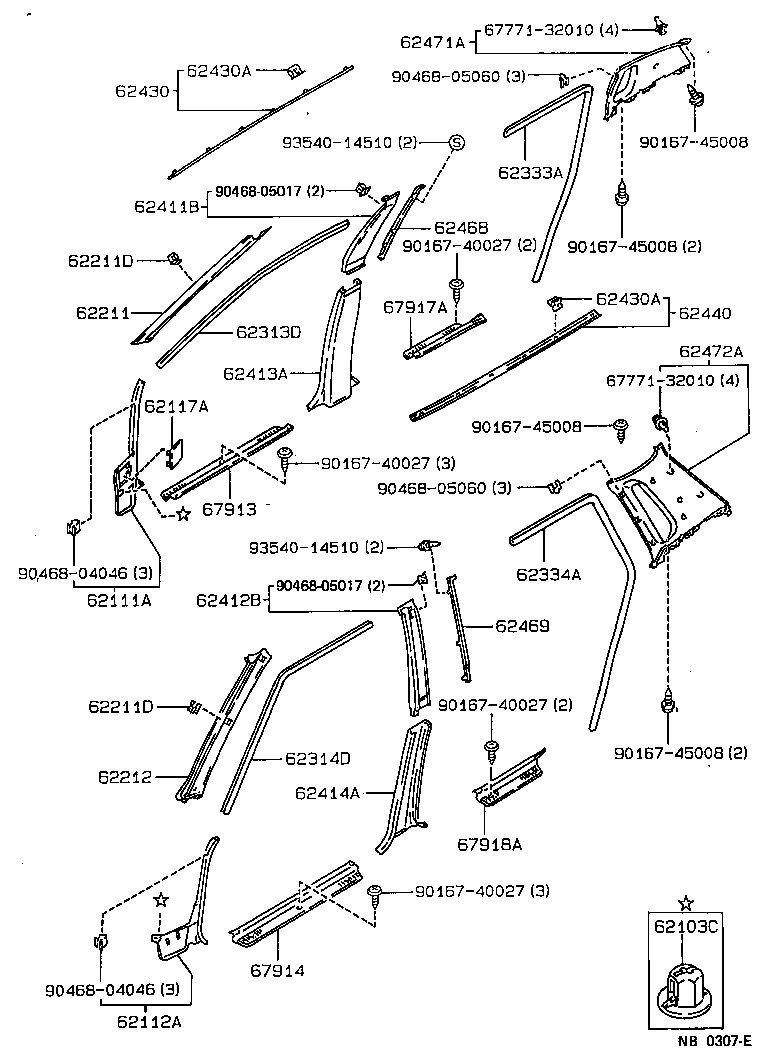

Inside Trim Board & Door Opening Trim Moulding

41 part groups · 3 illustrations

PNC	Description
62103C	Clip, Cowl Side Trim Board Set
62111A	Trim Sub-assy, Cowl Side, RH
62112A	Trim Sub-assy, Cowl Side, LH
62117A	Cover, Cowl Side Trim Service Hole
62211	Garnish, Front Pillar, RH
62211D	Clip(FOR FRONT BODY PILLAR GARNISH)
62212	Garnish, Front Pillar, LH
62313D	Trim, Front Door Opening, RH
62314D	Trim, Front Door Opening, LH
62333A	Trim, Rear Door Opening, RH
62334A	Trim, Rear Door Opening, LH
62381	Weatherstrip, Roof Side Rail, Front RH
62382	Weatherstrip, Roof Side Rail, Front LH
62411	Garnish, Center Pillar, RH
62411B	Garnish, Center Pillar, Upper RH
62412	Garnish, Center Pillar, LH
62412B	Garnish, Center Pillar, Upper LH
62413A	Garnish, Center Pillar, Lower RH
62414A	Garnish, Center Pillar, Lower LH
62430	Garnish Assy, Roof Side Rail, RH
62430A	Clip, Roof Side Rail Garnish
62440	Garnish Assy, Roof Side Rail, LH
62461P	Plug, Hole (FOR ROOF SIDE INNER GARNISH)
62468	Garnish, Center Pillar, Rear RH
62469	Garnish, Center Pillar, Rear LH
62471A	Garnish, Roof Side, Inner RH
62472A	Garnish, Roof Side, Inner LH
62476B	Cap, Roof Side Inner Garnish, NO.1
62510P	Panel Assy, Quarter Trim, Front RH
62511G	Clip (FOR QUARTER INSIDE TRIM BOARD)
62520P	Panel Assy, Quarter Trim, Front LH
62533B	Bracket, Quarter Trim, RH
62534B	Bracket, Quarter Trim, LH
62561	Protector, Rocker Panel, Inner Front
62561C	Clip (FOR ROCKER PANEL INNER PROTECTOR)
62594E	Pocket, Quarter Trim, RH
62595E	Pocket, Quarter Trim, LH
67913	Plate, Front Door Scuff, RH
67914	Plate, Front Door Scuff, LH
67917A	Plate, Rear Door Scuff, RH
67918A	Plate, Rear Door Scuff, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
