Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

24 part groups · 3 illustrations

Illustrations

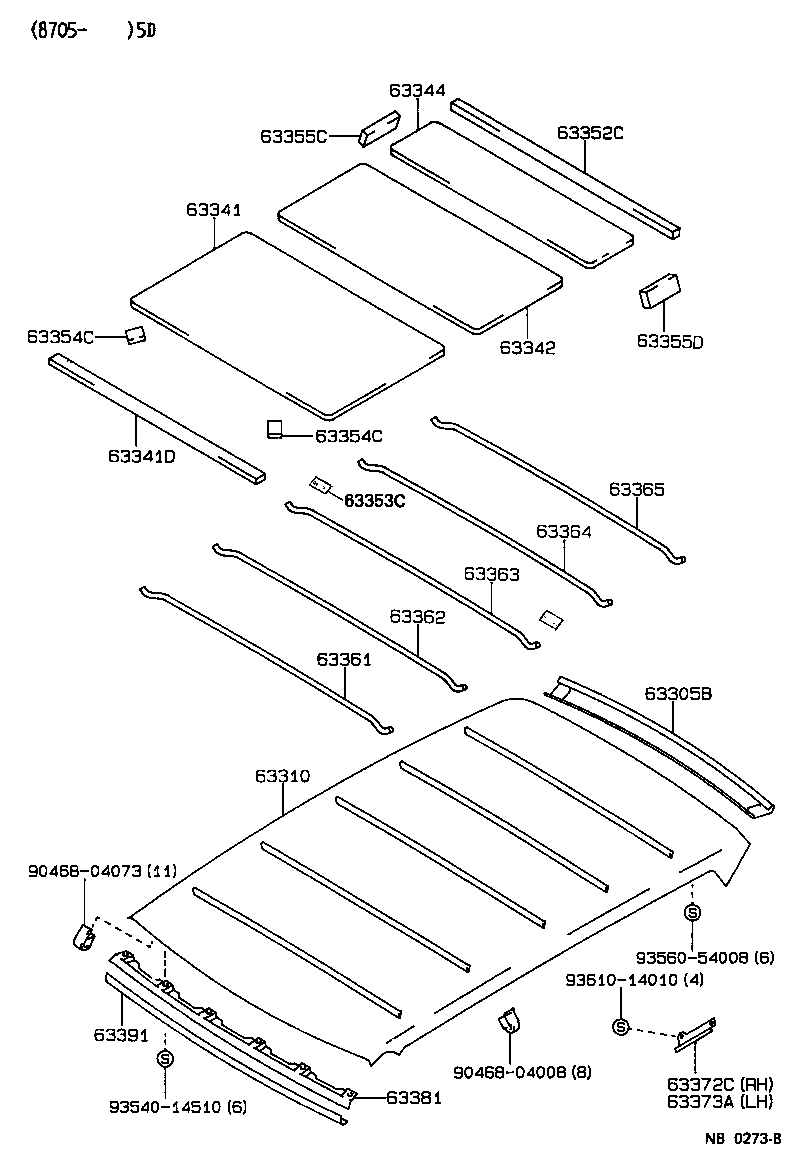

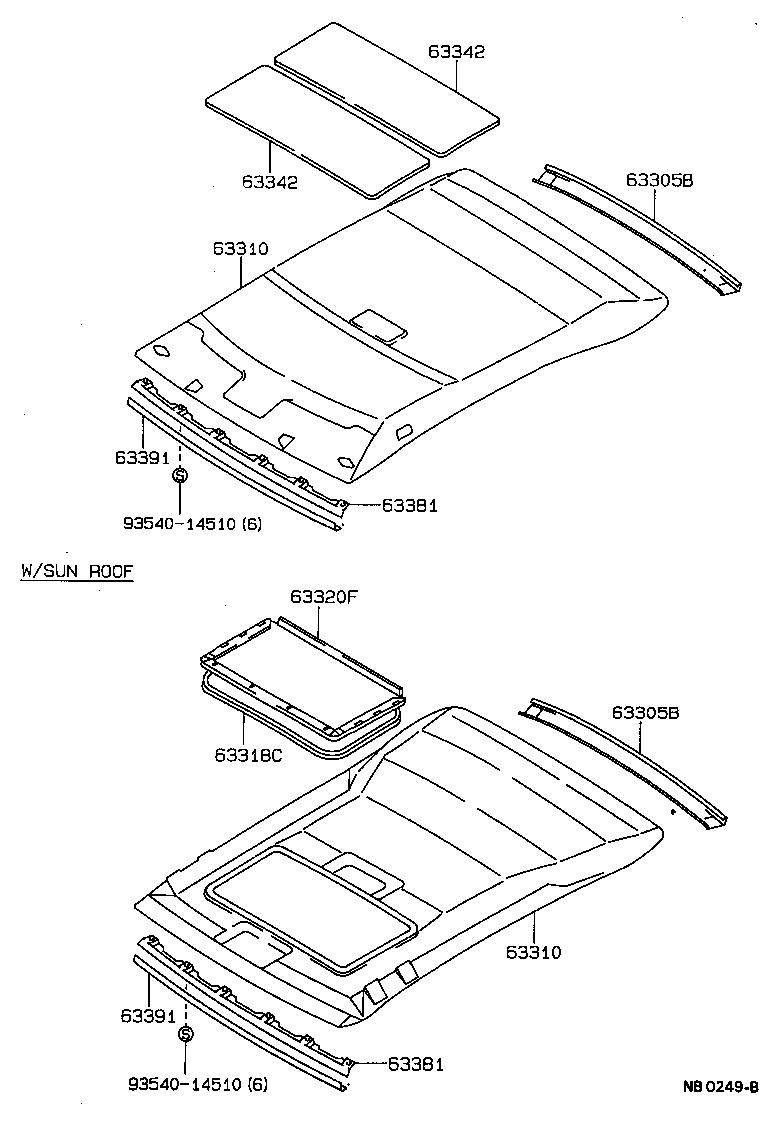

Figure NB0247A NB0247A 1987-05 → — Figure NB0249B NB0249B 1987-05 → — Figure NB0273B NB0273B 1987-05 → —

Part groups

PNCDescription
63305B Trim Sub-assy, Roof Headlining, Rear
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63318C Moulding, Sun Roof Opening Trim
63320F Headlining Assy, Sun Roof
63341 Pad, Roof Silencer, NO.1
63341D Pad, Roof Silencer, Front
63342 Pad, Roof Silencer, NO.2
63343B Pad, Roof Silencer, Rear
63344 Pad, Roof Silencer, NO.4
63352C Pad, Roof Headlining, End
63353C Pad, Roof Headlining, Center
63354C Pad, Roof Headlining Front Side
63355C Pad, Roof Headlining, RH
63355D Pad, Roof Headlining, LH
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63365 Support, Roof Headlining, NO.5
63372C Hook, Roof Headlining Support
63373A Hook, Roof Headlining Support, NO.2
63381 Retainer, Headlining, Front
63391 Trim, Roof Headlining, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
