Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

17 part groups · 2 illustrations

Illustrations

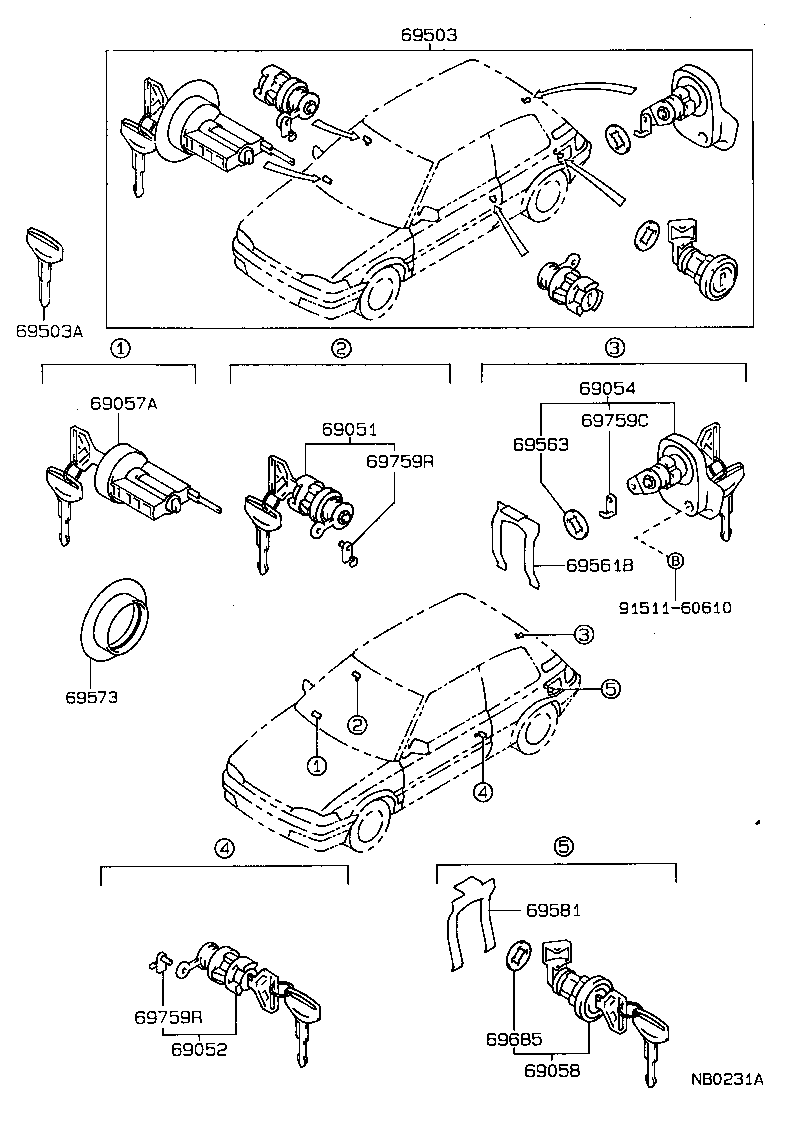

Figure NB0234A NB0234A 1987-05 → — Figure NB0231A NB0231A 1987-05 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69054 Cylinder & Key Set, Back Door Lock
69054C Cylinder & Key Set, Luggage Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69058 Cylinder & Key Set, Fuel Filler Lid
69503 Cylinder Set, Lock
69503A Key, Blank
69561A Retainer, Luggage Compartment Lock Cylinder
69561B Retainer, Back Door Lock Cylinder
69563 Pad, Back Door Lock Cylinder
69563A Pad, Luggage Compartment Door Lock Cylinder
69573 Pad, Ignition Switch Lock Cylinder
69581 Retainer, Fuel Filler Lid Cylinder
69685 Pad, Lock Cylinder
69759C Snap, Back Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
