Toyota Corolla CP/HB
1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General
Discontinued model
Data version 1994-04

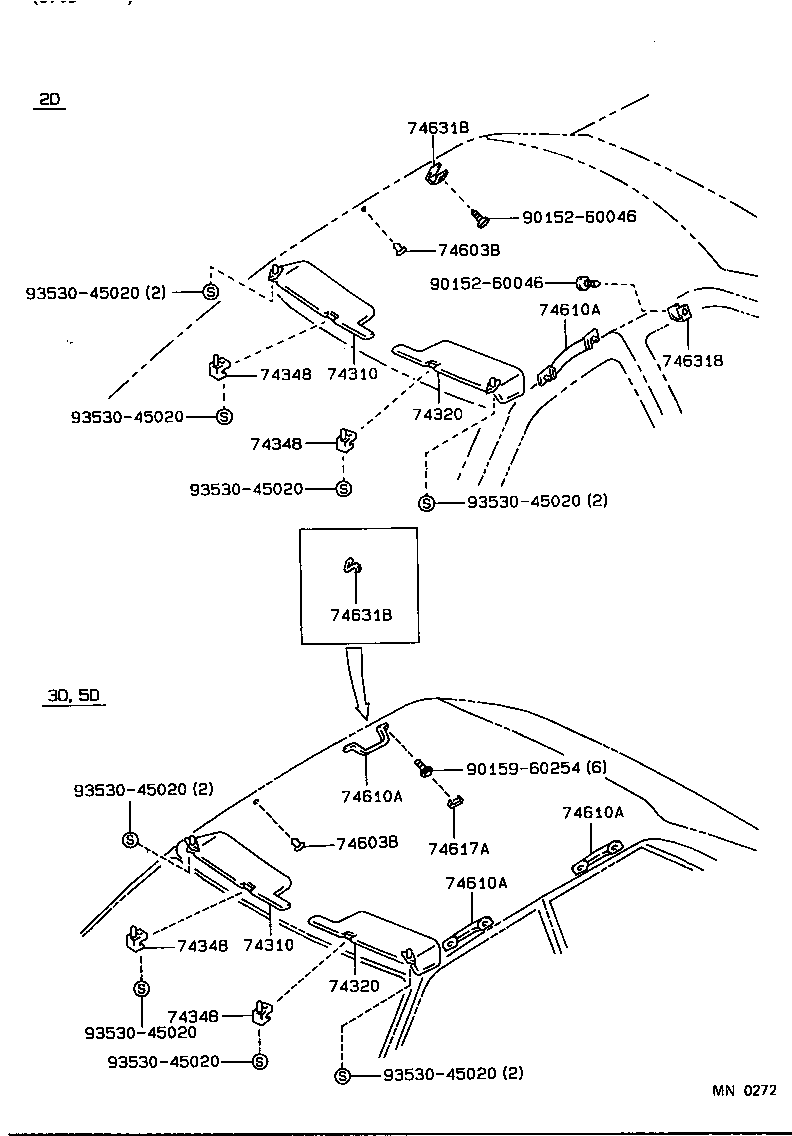

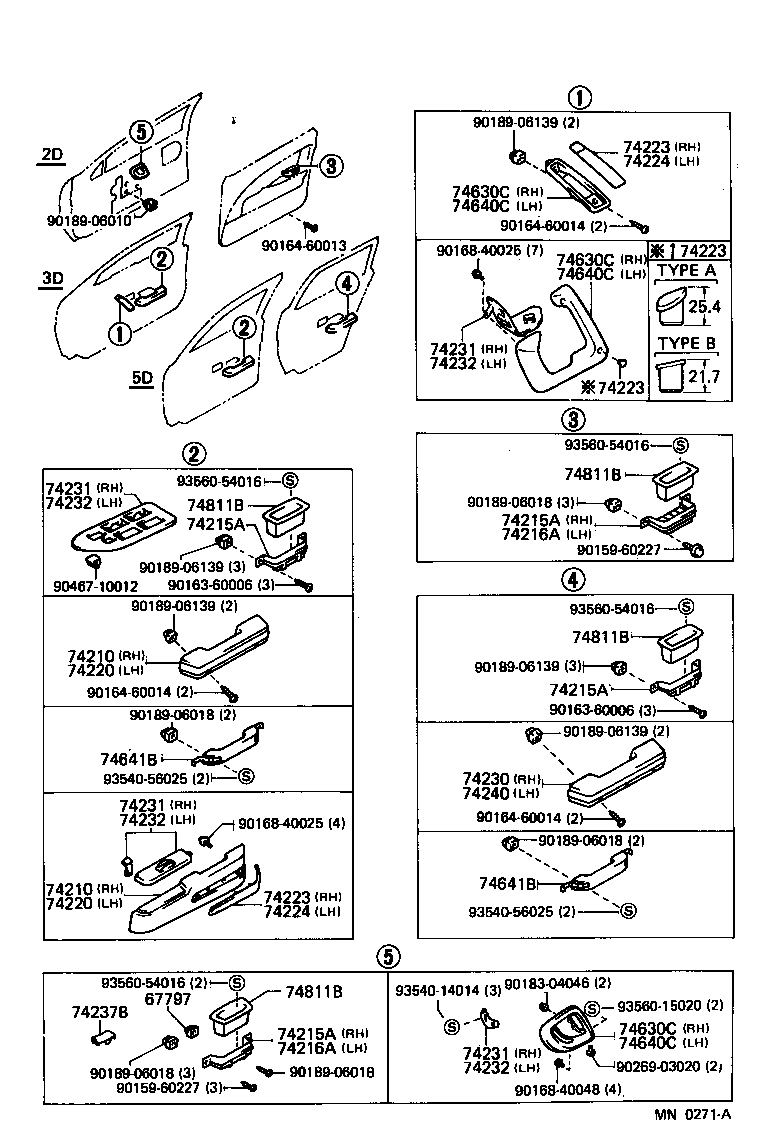

Armrest & Visor
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67797 | Retainer, Door Trim Ornament |
| 74210 | Armrest Assy, Front, RH |
| 74215A | Base, Door Armrest RH |
| 74216A | Base, Door Armrest, LH |
| 74220 | Armrest Assy, Front, LH |
| 74223 | Cap, Door Armrest, RH |
| 74224 | Cap, Door Armrest, LH |
| 74230 | Armrest Assy, Rear, RH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74237B | Cap, Door Armrest Base |
| 74240 | Armrest Assy, Rear, LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74603B | Clip (FOR ASSIST GRIP) |
| 74610A | Grip Sub-assy, Assist |
| 74617A | Plug, Assist Grip |
| 74630C | Grip Assy, Door Assist, RH |
| 74631B | Hook, Coat |
| 74640C | Grip Assy, Door Assist, LH |
| 74641B | Grip, Door Assist |
| 74811B | Handle, Door Pull |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
