Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

10 part groups · 2 illustrations

Illustrations

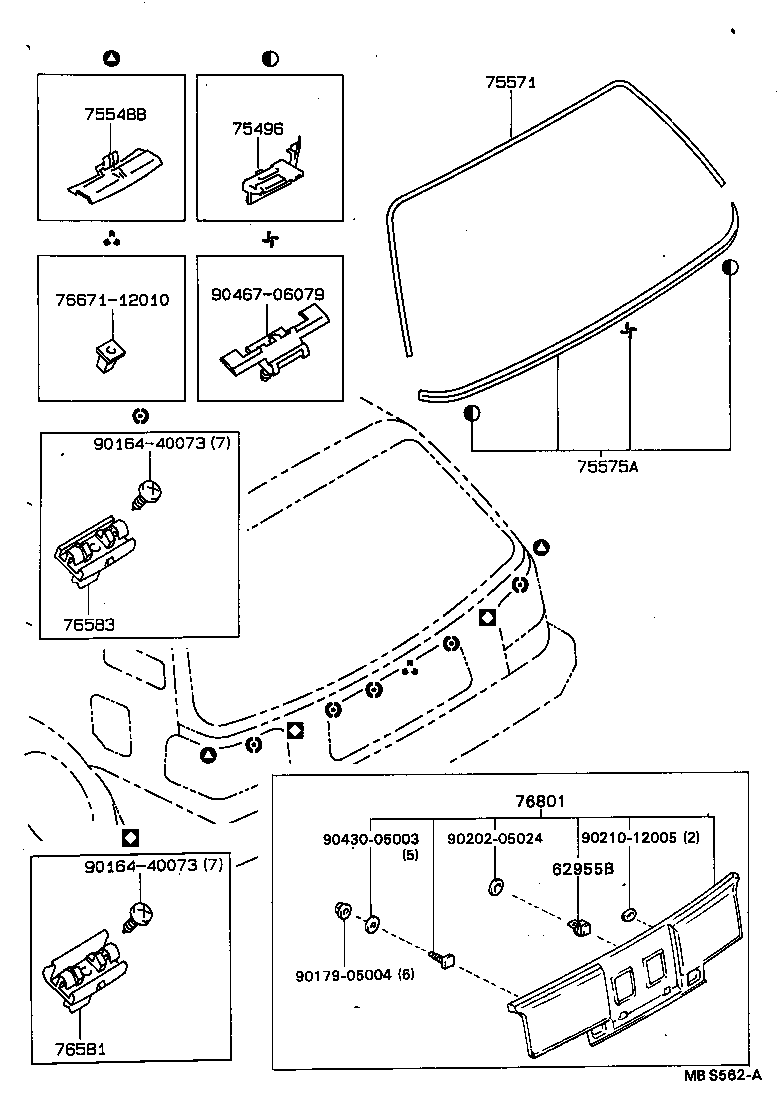

Figure NB0093B NB0093B 1987-05 → — Figure MBS562A MBS562A 1987-05 → —

Part groups

PNCDescription
62955B Retainer, Back Door Garnish
62955C Retainer, Back Door Moulding
75496 Clip, Back Window Outside Moulding, NO.1
75548B Fastener, Back Window Outside Moulding
75571 Moulding, Back Window, Outside Upper
75575A Moulding, Back Window, Outside Lower
75803D Moulding Sub-assy, Back Door, Outside Lower
76581 Retainer, Back Window Outside Moulding
76583 Retainer, Back Window Outside Lower Moulding, RH
76801 Garnish Sub-assy, Back Door, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
