Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

27 part groups · 2 illustrations

Illustrations

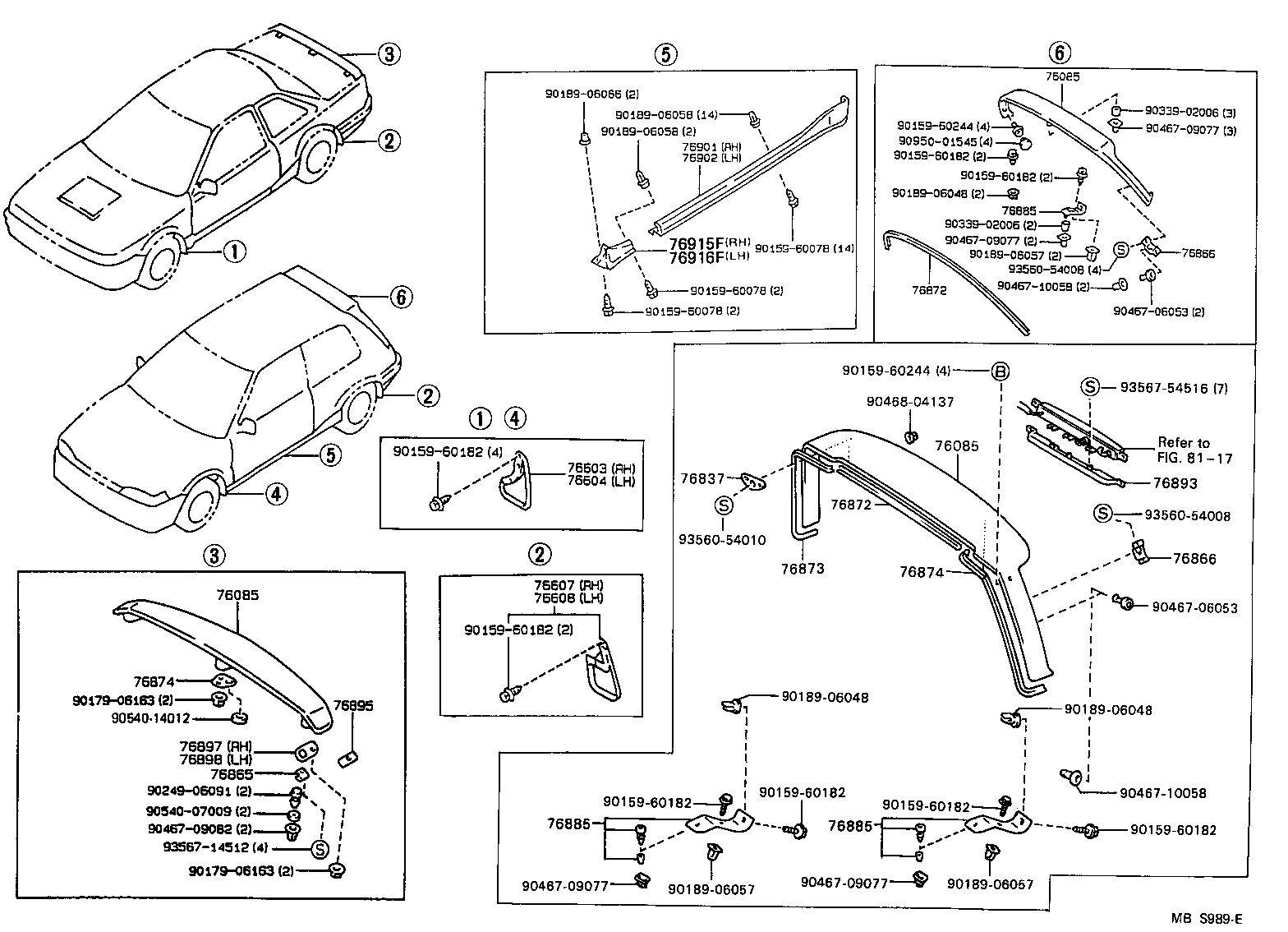

Figure NB0104F NB0104F 1987-05 → 1989-08 Figure MBS989E MBS989E 1989-08 → —

Part groups

PNCDescription
76081A Spoiler Sub-assy, Front RH
76083A Spoiler Sub-assy, Front LH
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76837 Retainer, Rear Spoiler, NO.7
76855 Retainer, Front Spoiler, Lower NO.1 Center
76857 Retainer, Front Spoiler Side, RH
76858 Retainer, Front Spoiler Side, LH
76863 Retainer, Front Spoiler, Lower NO.2 RH
76864 Retainer, Front Spoiler, Lower NO.2 LH
76865 Retainer, Rear Spoiler, NO.1
76866 Retainer, Rear Spoiler, NO.2
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76885 Retainer, Rear Spoiler, NO.5
76893 Cover, Rear Spoiler, NO.1
76895 Protector, Rear Spoiler, NO.5
76897 Protector, Rear Spoiler, Side RH
76898 Protector, Rear Spoiler, Side LH
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76915F Mudguard, Side, FR RH
76916F Mudguard, Side, FR LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
