Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

16 part groups · 4 illustrations

Illustrations

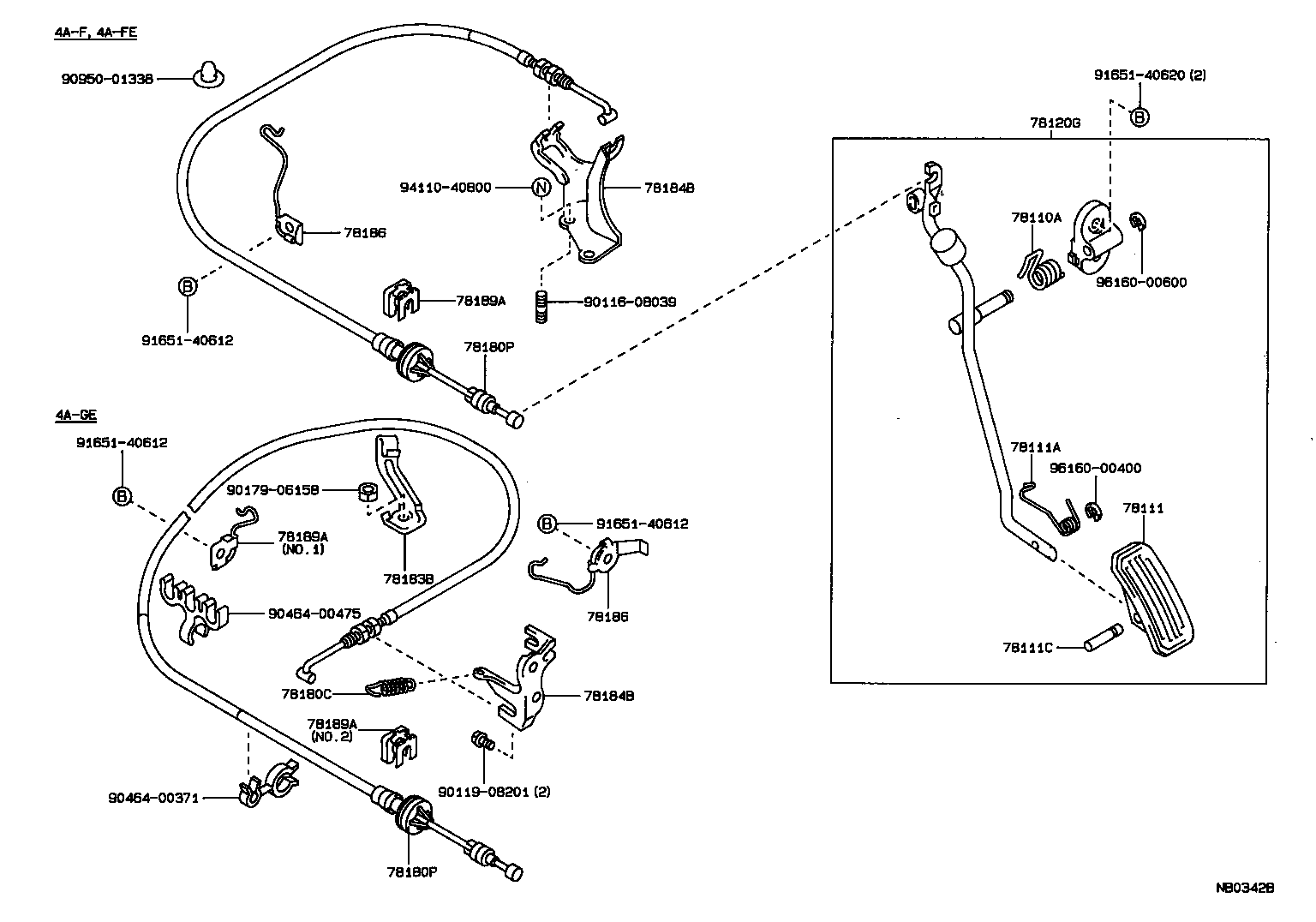

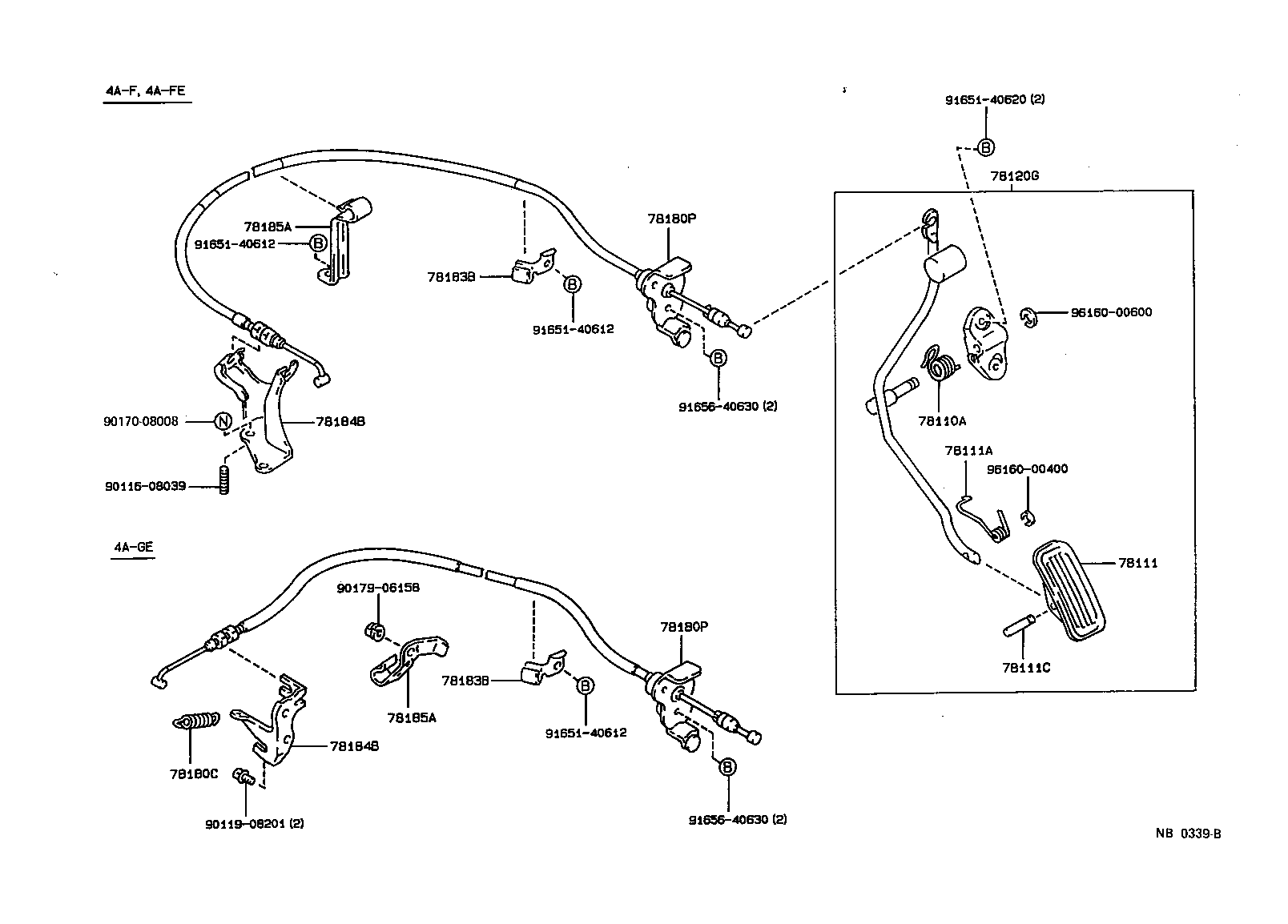

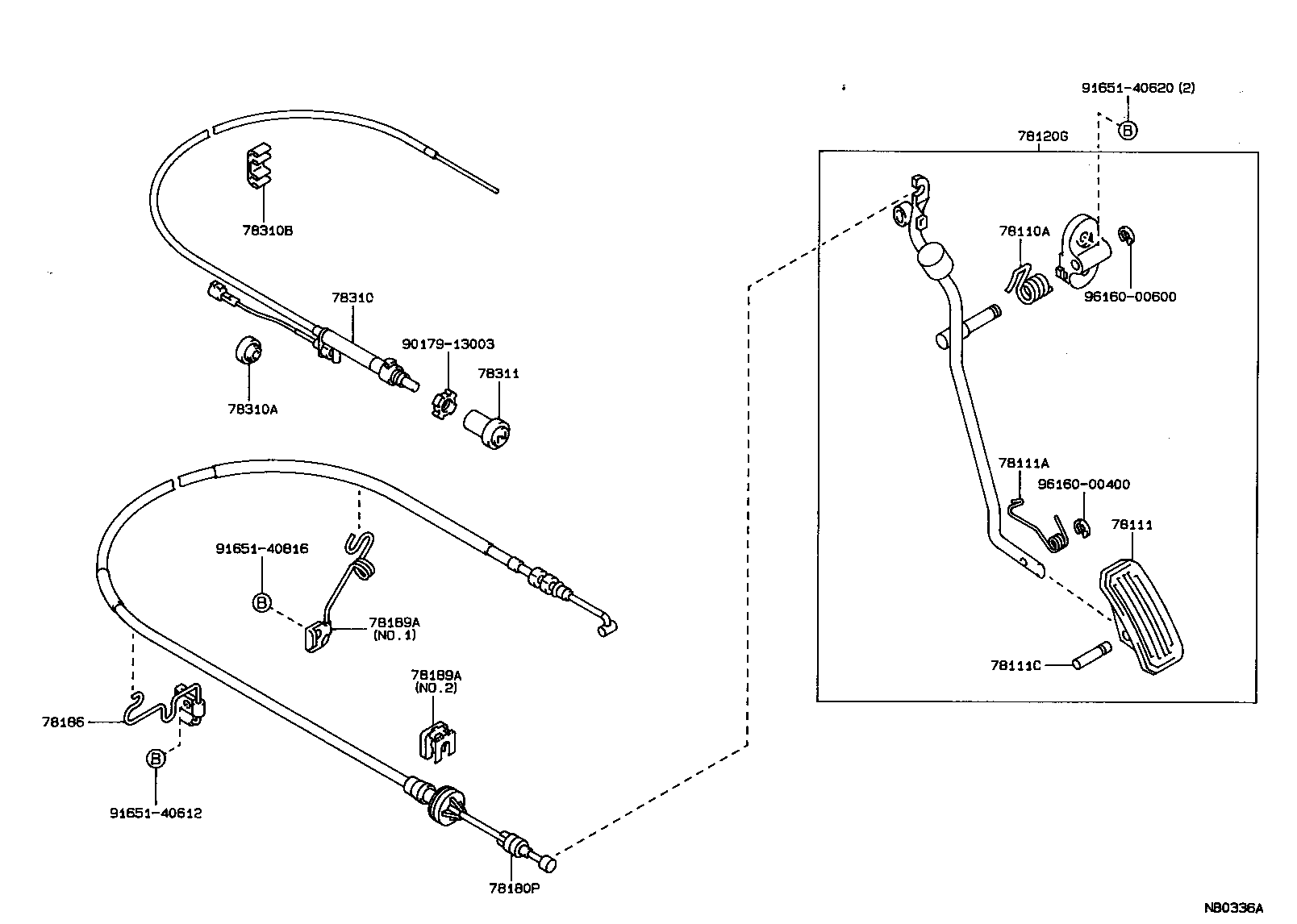

Figure NB0335 NB0335 1987-05 → — Figure NB0336A NB0336A 1987-05 → — Figure NB0339B NB0339B 1987-05 → — Figure NB0342B NB0342B 1987-05 → —

Part groups

PNCDescription
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78120G Rod Assy, Accelerator Pedal
78180C Spring, Tension (FOR ACCELERATOR WIRE)
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78186 Support, Accelerator Control Cable, NO.1
78189A Support, Accelerator Control Cable, NO.2
78310 Cable Assy, Choke
78310A Grommet, Choke Cable
78310B Clamp, Choke Cable
78311 Knob, Choke Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
