Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

15 part groups · 3 illustrations

Illustrations

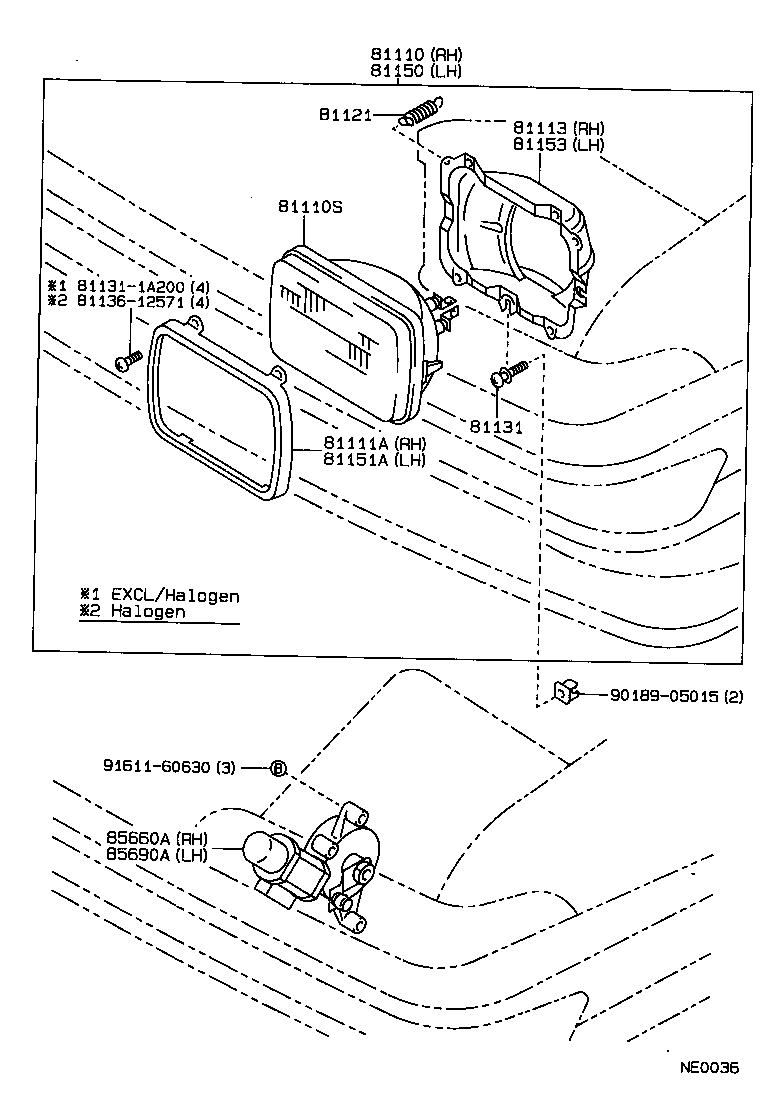

Figure NE0035A NE0035A 1987-05 → — Figure NE0036 NE0036 1987-05 → — Figure NE0031A NE0031A 1987-05 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111A Ring, Sealed Beam Retaining, NO.1 RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81151A Ring, Sealed Beam Retaining, NO.1 LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81175 Unit Assy, Headlamp, LH
85660A Motor Assy, Light Retractor, RH
85690A Motor Assy, Light Retractor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
