Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

8 part groups · 5 illustrations

Illustrations

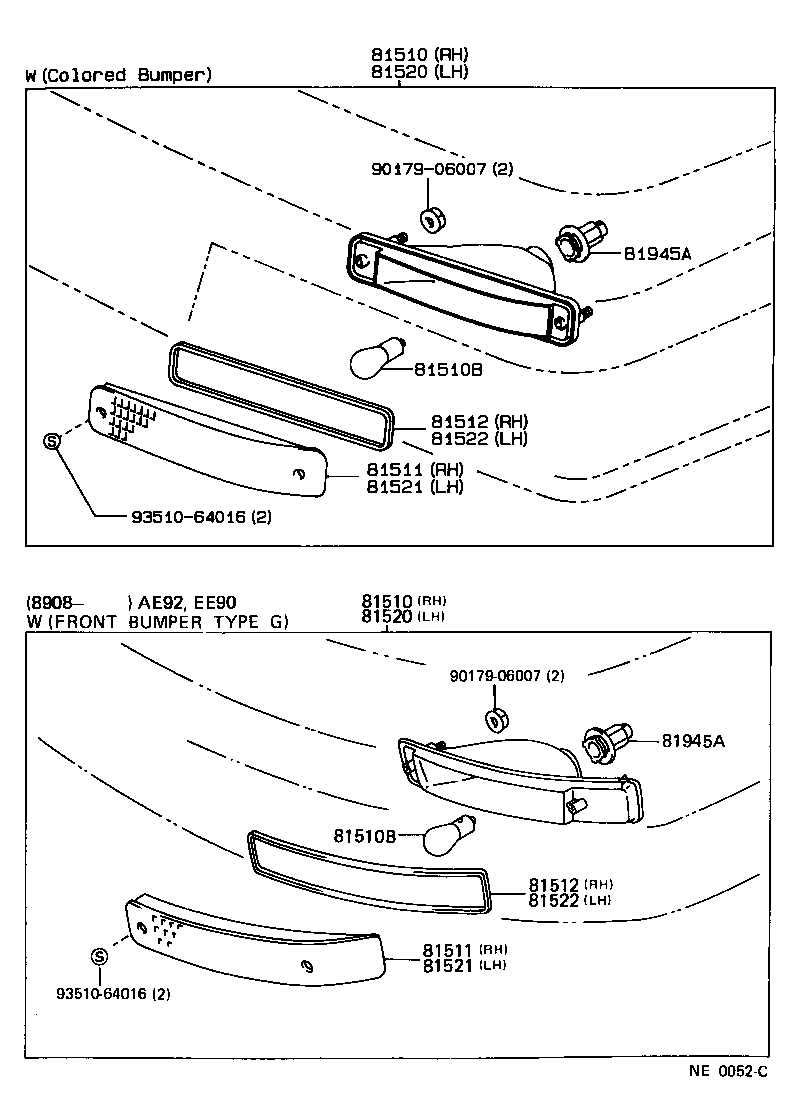

Figure NE0051B NE0051B 1987-05 → — Figure NE0038A NE0038A 1987-05 → 1989-08 Figure NE0038A NE0038A 1989-08 → — Figure NE0052C NE0052C 1987-05 → 1989-08 Figure NE0052C NE0052C 1989-08 → —

Part groups

PNCDescription
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81512 Gasket, Front Turn Signal Lamp Lens, RH
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
81522 Gasket, Front Turn Signal Lamp Lens, LH
81945A Socket, Bulb
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
