Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

22 part groups · 6 illustrations

Illustrations

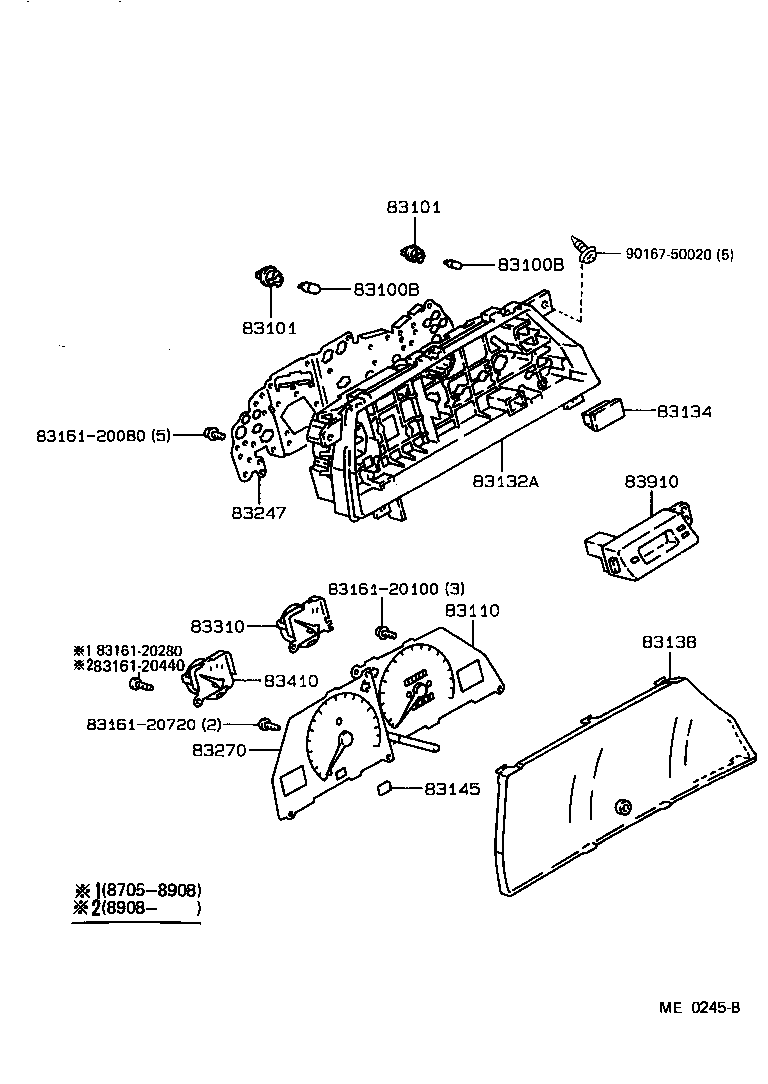

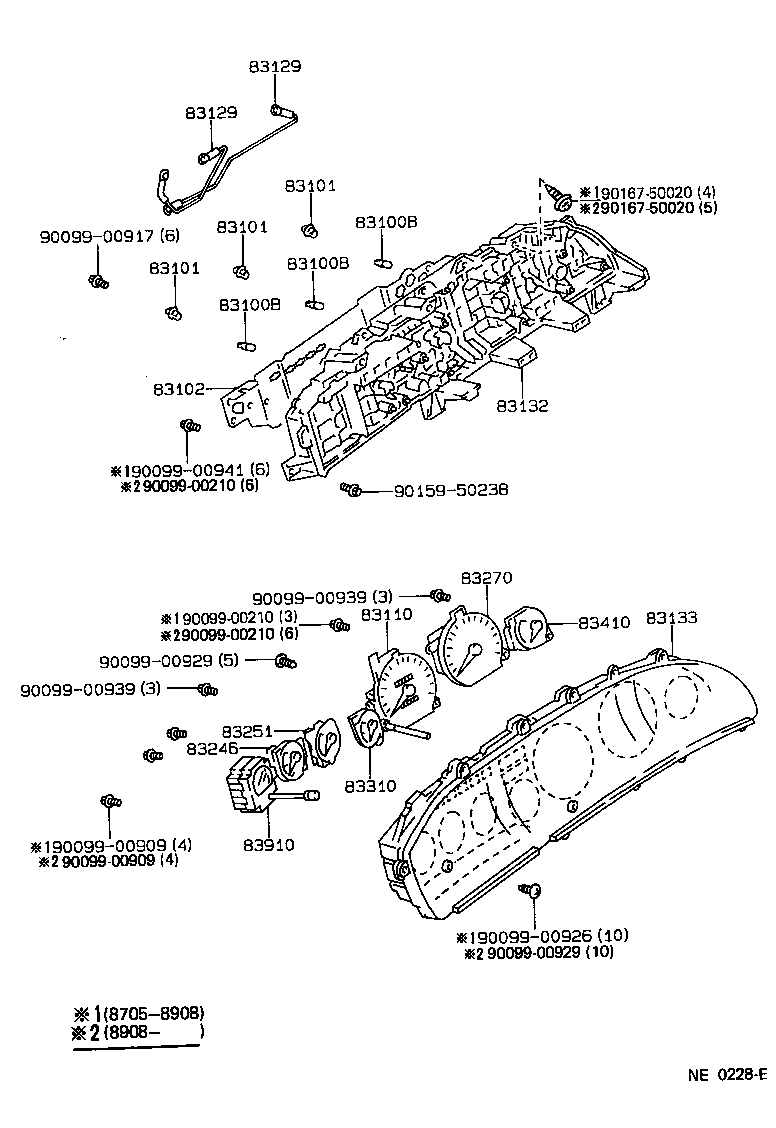

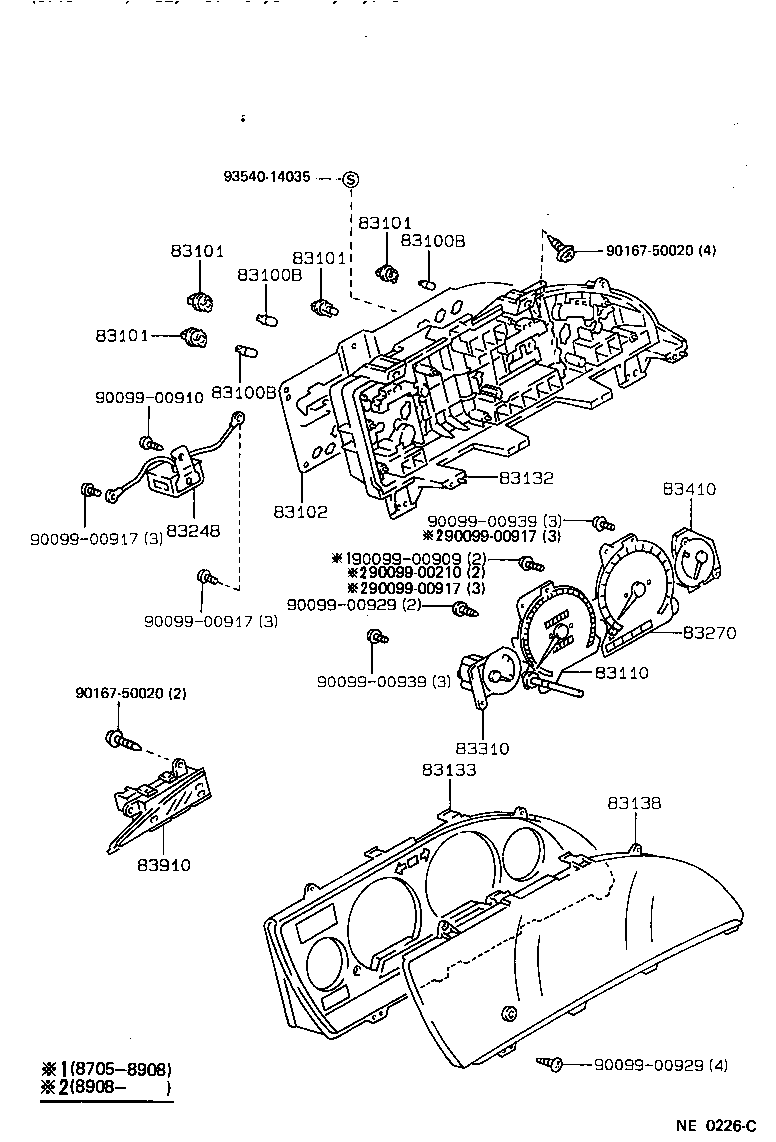

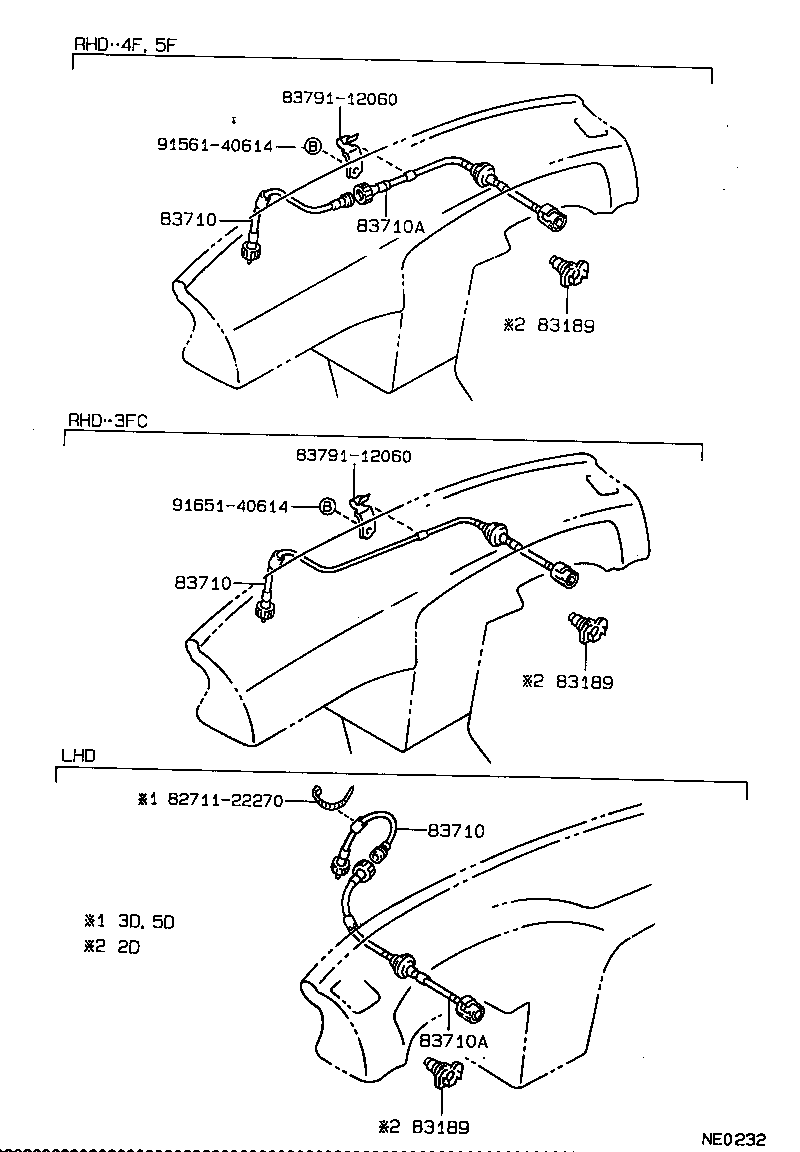

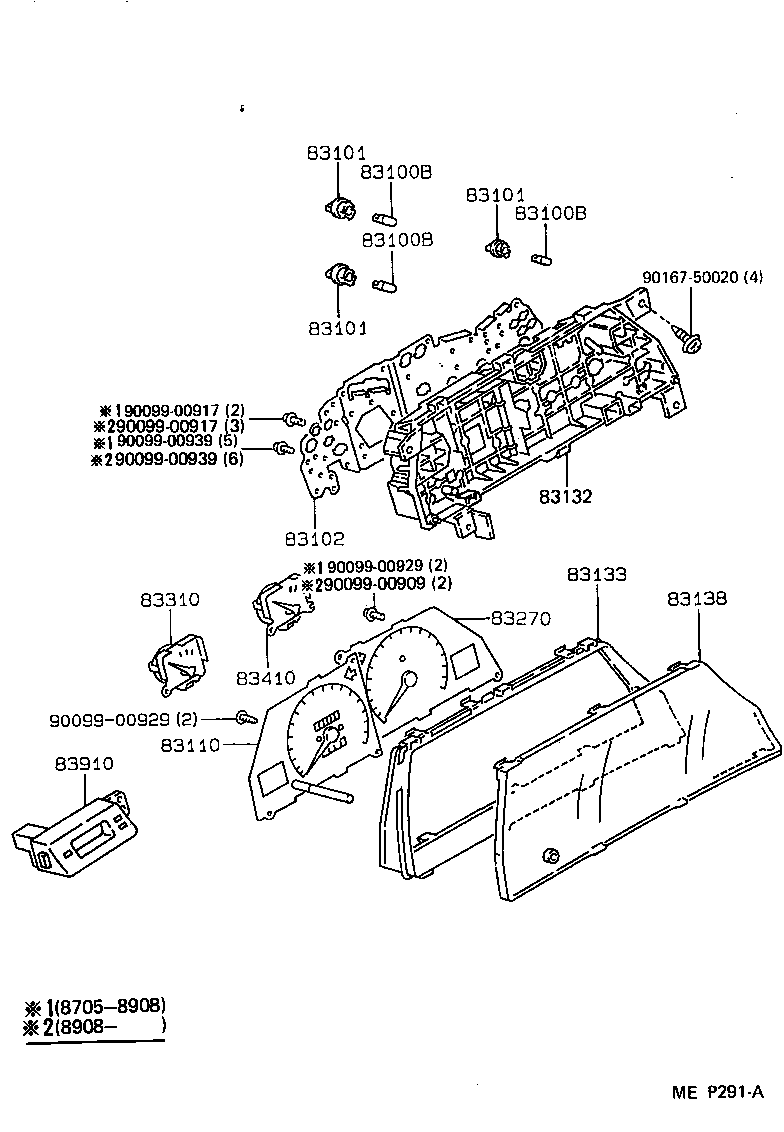

Figure NE0224D NE0224D 1987-05 → — Figure MEP291A MEP291A 1987-05 → — Figure ME0245B ME0245B 1987-05 → — Figure NE0226C NE0226C 1987-05 → — Figure NE0228E NE0228E 1987-05 → — Figure NE0232 NE0232 1987-05 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83110 Speedometer Assy
83129 Wire, Meter
83132 Case, Combination Meter
83132A Case, Meter
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83138 Glass, Speedometer
83145 Lens, Meter, NO.1
83189 Bracket, Meter
83246 Gauge, Oil Pressure Receiver
83247 Plate, Meter Circuit
83248 Chime, Speed Warning
83251 Meter, Voltage
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
