Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

7 part groups · 2 illustrations

Illustrations

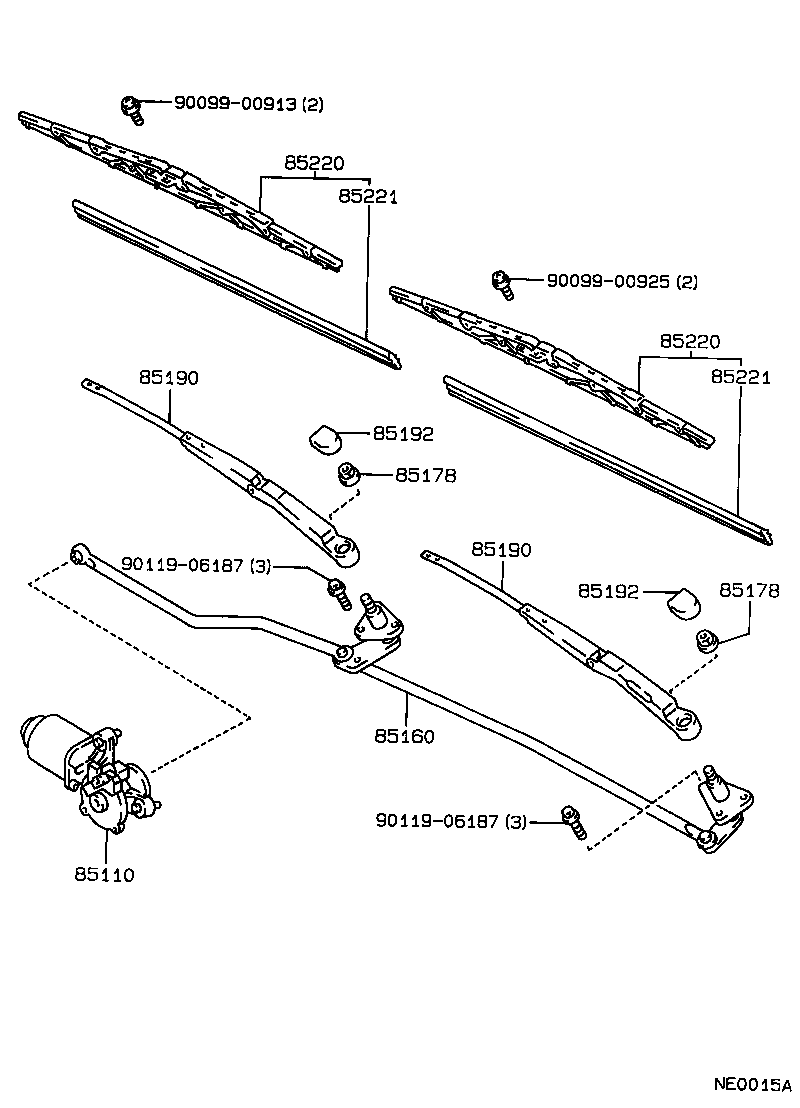

Figure NE1145 NE1145 1987-05 → — Figure NE0015A NE0015A 1987-05 → —

Part groups

PNCDescription
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85178 Nut (FOR FRONT WIPER ARM SETTING)
85190 Arm Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
