Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

10 part groups · 3 illustrations

Illustrations

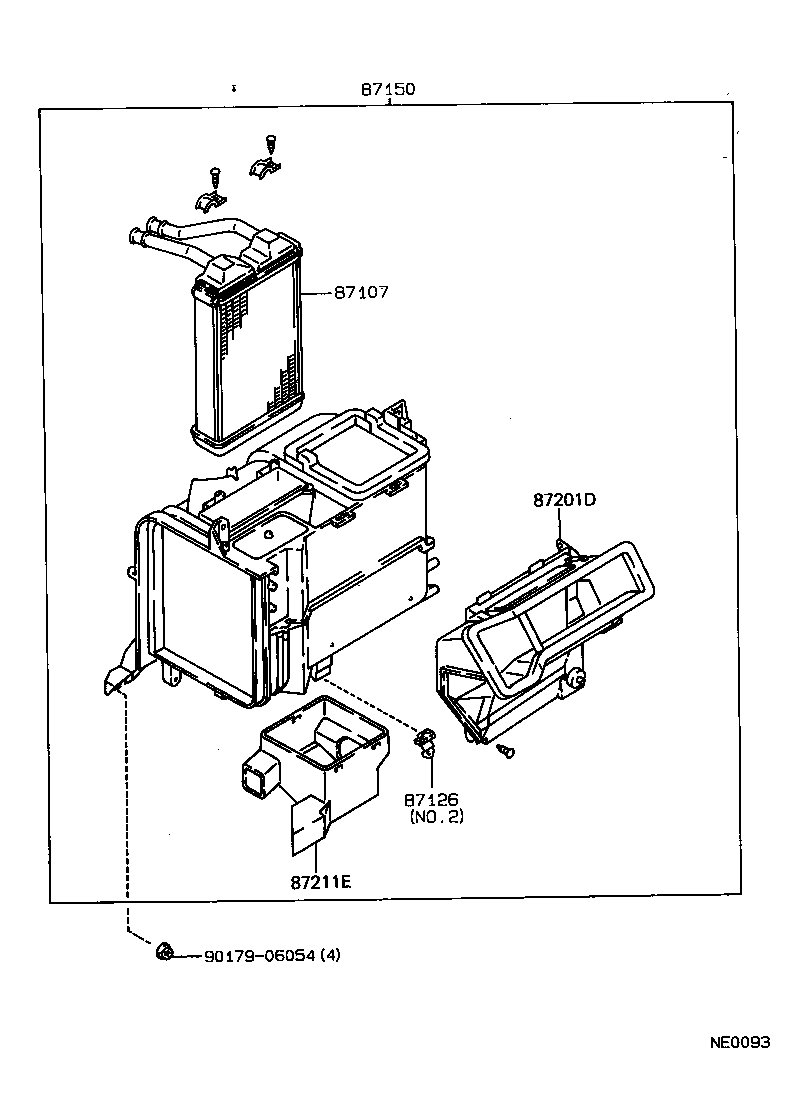

Figure NE0892 NE0892 1987-05 → — Figure NE0093 NE0093 1987-05 → — Figure NE0094A NE0094A 1987-05 → —

Part groups

PNCDescription
87103 Motor Sub-assy, Heater Blower, W/Fan
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87126 Clamp, Heater Control
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87201D Duct Sub-assy, Air
87211E Duct, Air
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
