Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

5 part groups · 3 illustrations

Illustrations

Figure NE0125A

NE0125A 1987-05 → —

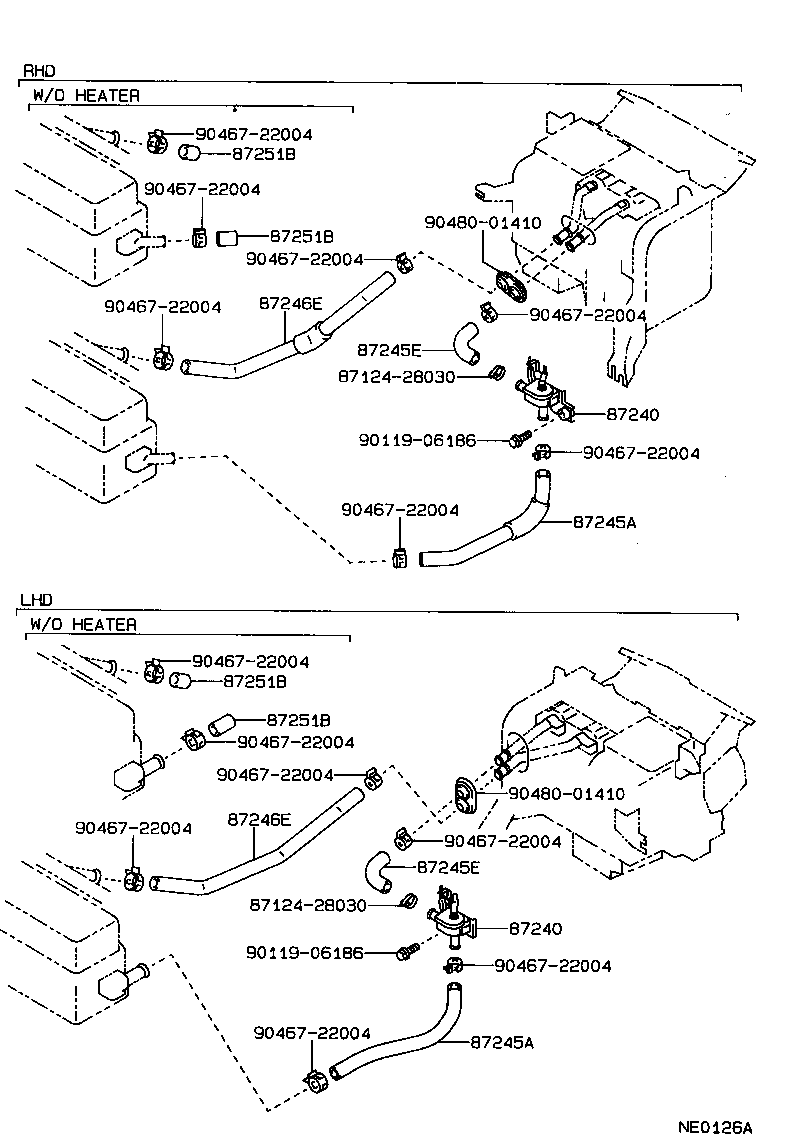

Figure NE0126A

NE0126A 1987-05 → —

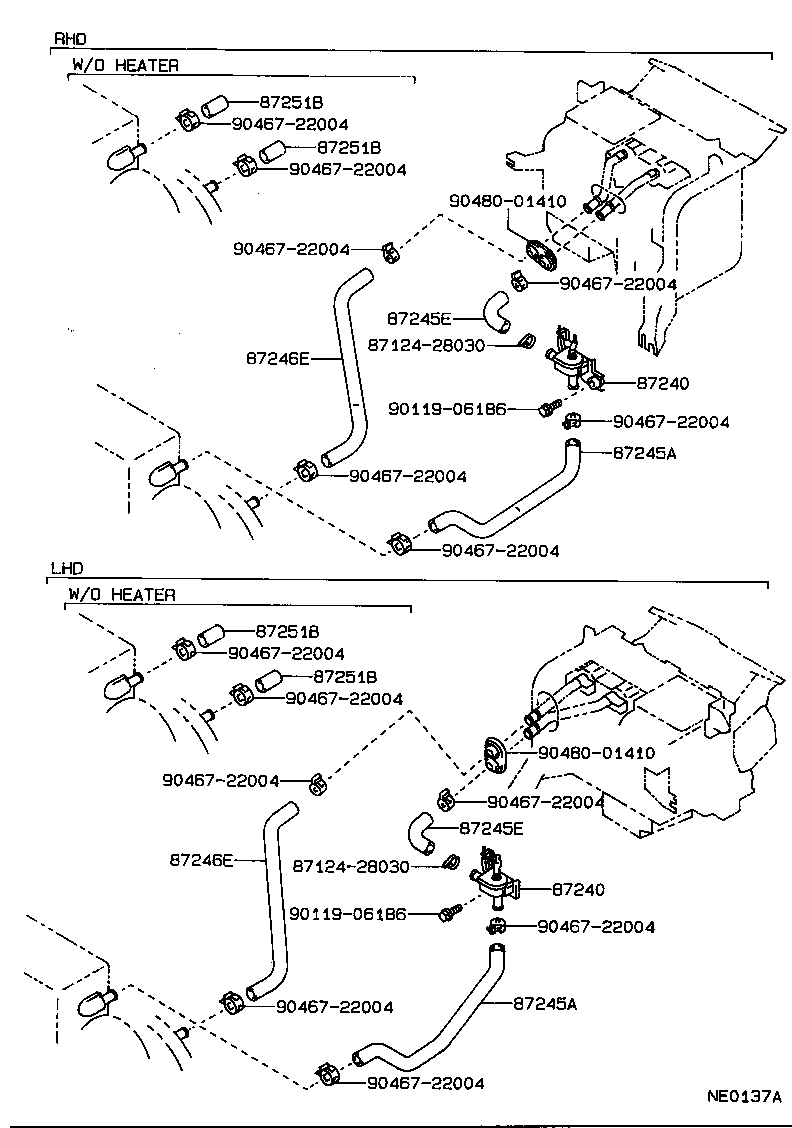

Figure NE0137A

NE0137A 1987-05 → —

Part groups

PNC	Description
87240	Valve Assy, Heater Water
87245A	Hose, Heater Water, Inlet A
87245E	Hose, Heater Water, Inlet E
87246E	Hose, Heater Water, Outlet E
87251B	Plug, Heater Water

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
