Toyota Corolla CP/HB

1987-05 → 1993-08 · chassis EE90,AE92,CE90 · catalogue 153320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

8 part groups · 2 illustrations

Illustrations

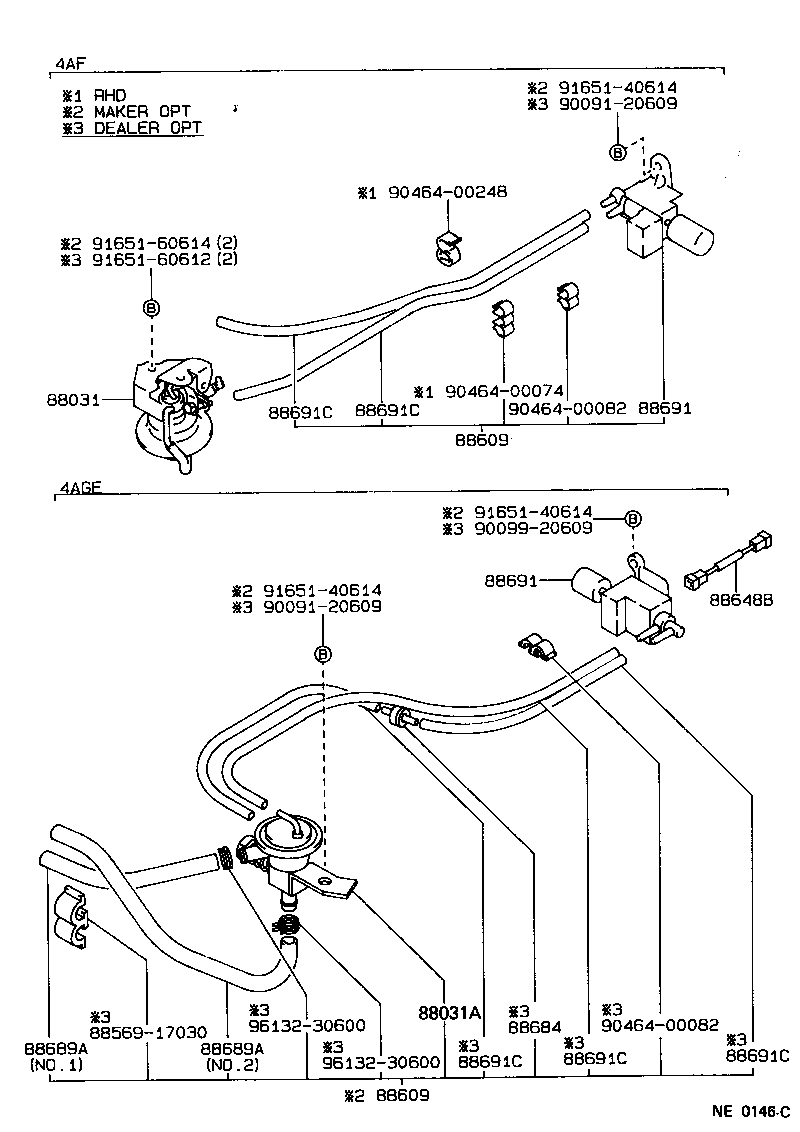

Figure MEP998 MEP998 1987-05 → — Figure NE0146C NE0146C 1987-05 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88609 Device Sub-assy, Idle UP
88648B Wiring, Cooler, NO.1
88684 Valve, Vacuum
88689A Hose, Cooler Vacuum NO.1
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
